SKU: KMFE6-SKF

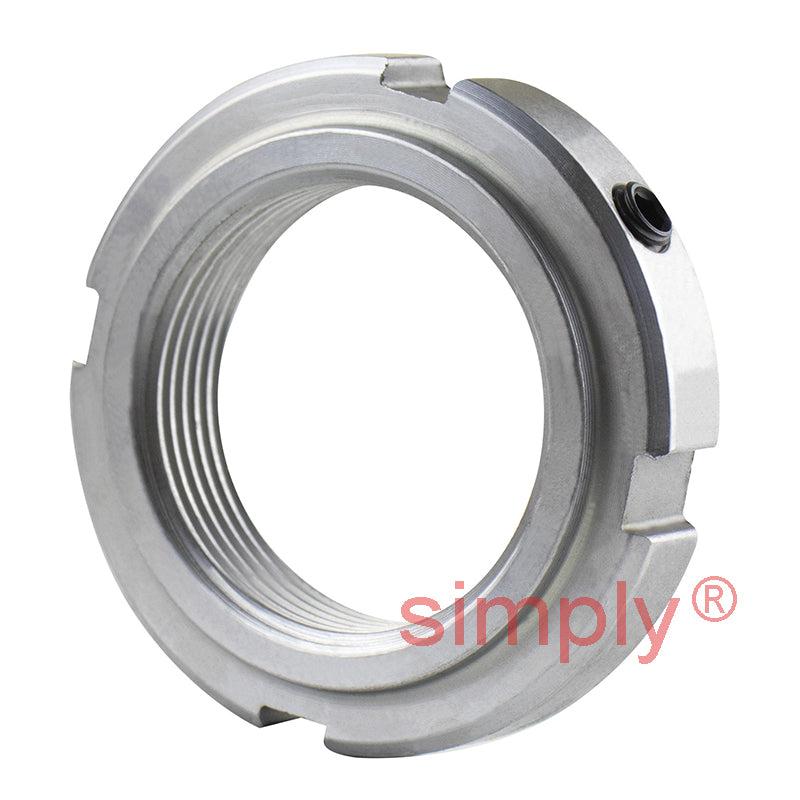

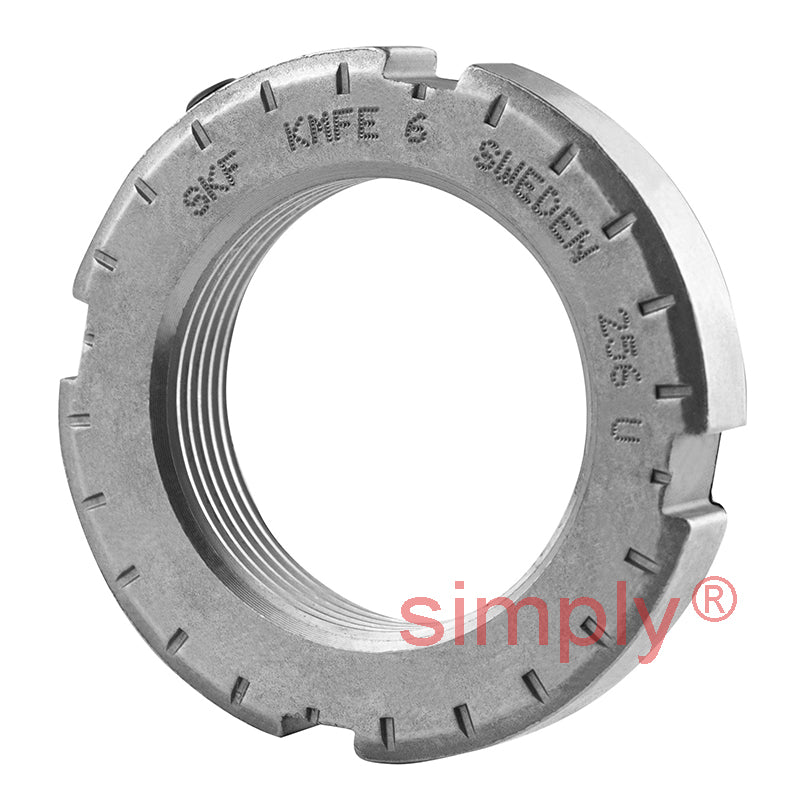

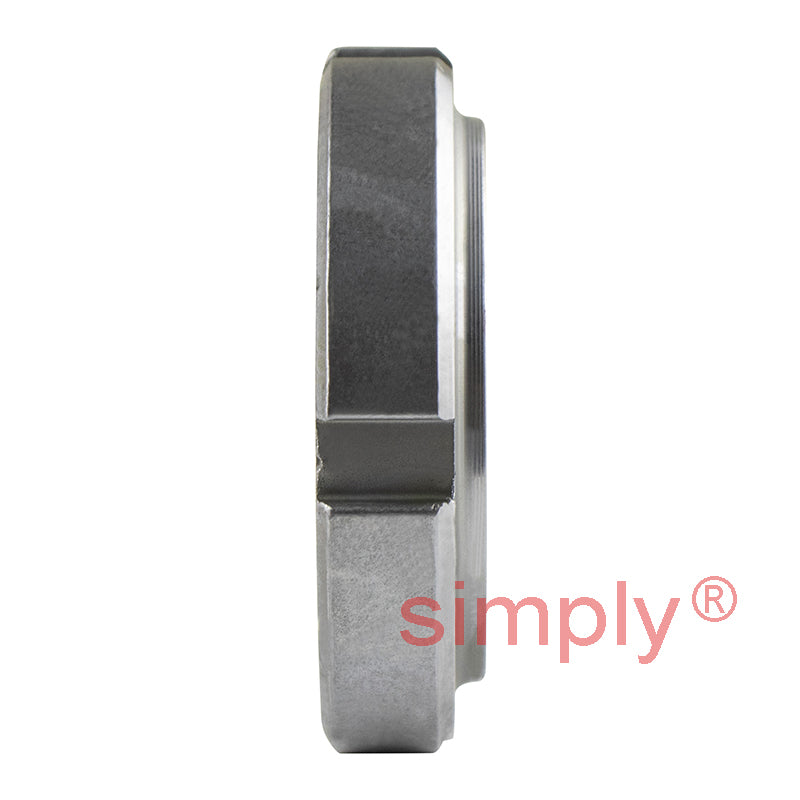

SKF KMFE6 Lock Nut with Locking Screw M30x1.5mm
SKF KMFE6 Lock Nut with Locking Screw M30x1.5mm
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
In stock
Price Break
10+
CHF 29.12
19+
CHF 27.48
29+
CHF 27.16
39+
CHF 26.83
49+
CHF 26.50
74+
CHF 26.18
99+
CHF 24.54
199+
CHF 24.21
249+
CHF 23.88
499+
CHF 23.56
999+
CHF 22.90
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M30x1.5
Technical
Technical
| d1 | 36mm |
|---|---|
| d3 | 45mm |
| B | 10.5mm |
| B1 | 8.5mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 36.5 kN |
| Looseing torque | 42 Nm |
| Weight | 0.058 kg |
| G | M30x1.5 |
| Designation | KMFE6 |
| Spanner | HN6 |
| Grub | M5 |
| Screw tightening torque | 4 Nm |
