SKU: KMK0-SKF

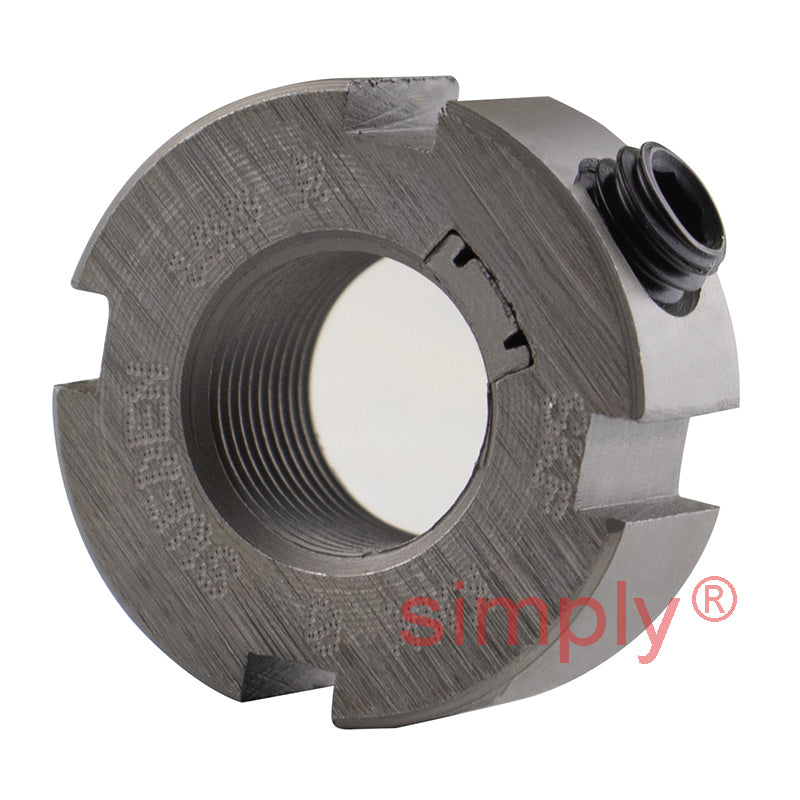

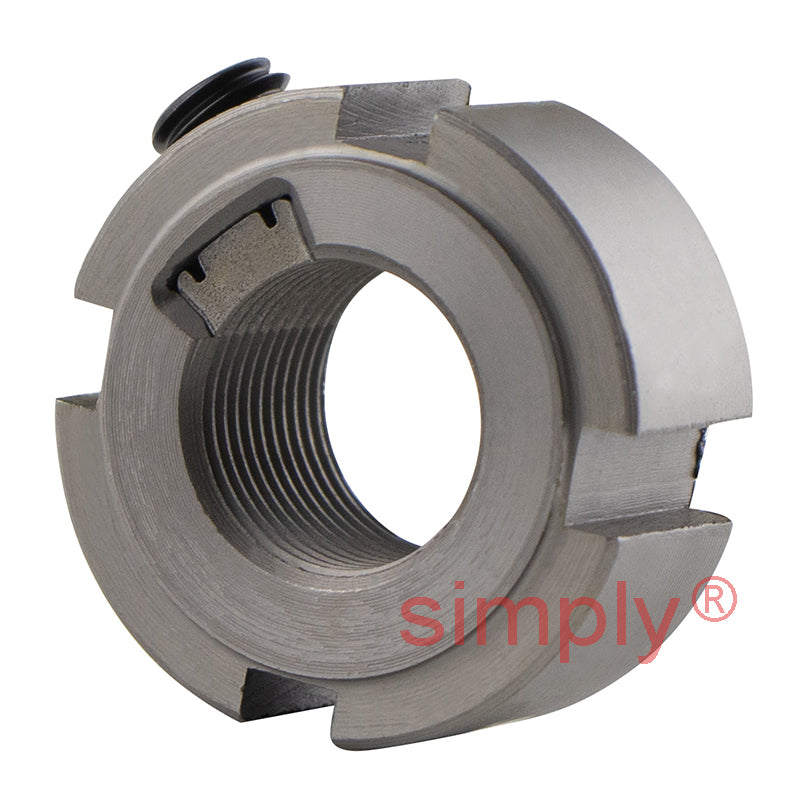

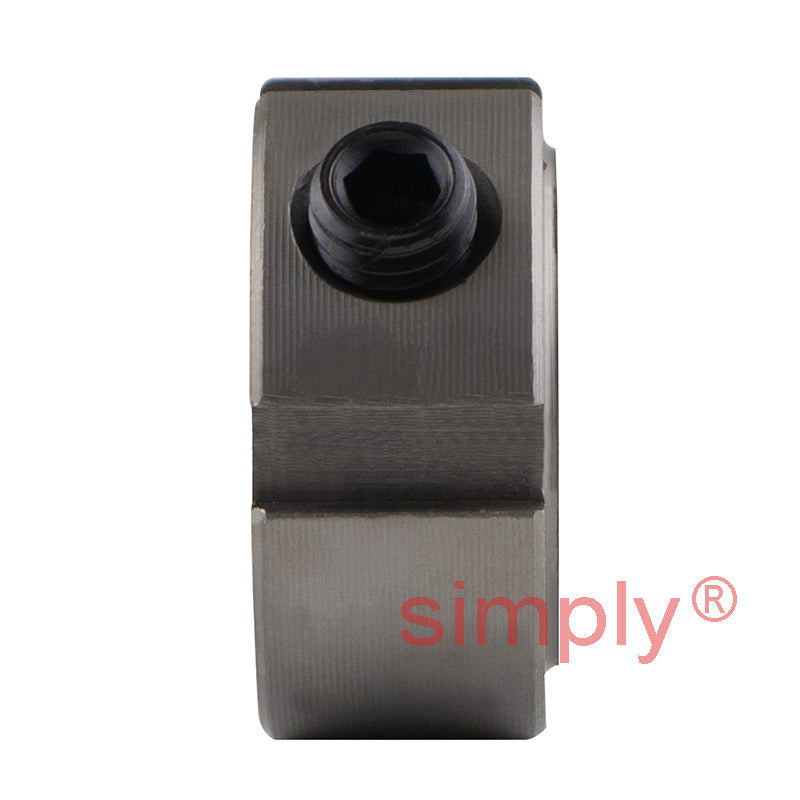

SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
Regular price
CHF 60.00
ex VAT
Regular price
Sale price
CHF 60.00
ex VAT
In stock
Price Break
10+
CHF 47.29
19+
CHF 44.63
29+
CHF 44.10
39+
CHF 43.57
49+
CHF 43.04
74+
CHF 42.51
99+
CHF 39.85
199+
CHF 39.32
249+
CHF 38.79
499+
CHF 38.26
999+
CHF 37.19
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10x0.75
Technical
Technical
| d1 | 16mm |
|---|---|
| d3 | 20mm |
| B | 9mm |
| b | 3mm |
| h | 2mm |
| Axial load capacity | 9.8 kN |
| Loosening torque | 6 Nm |
| Weight | 0.016 kg |
| G | M10x0.75 |
| Designation | KMK0 |
| Locking device | HN0 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
