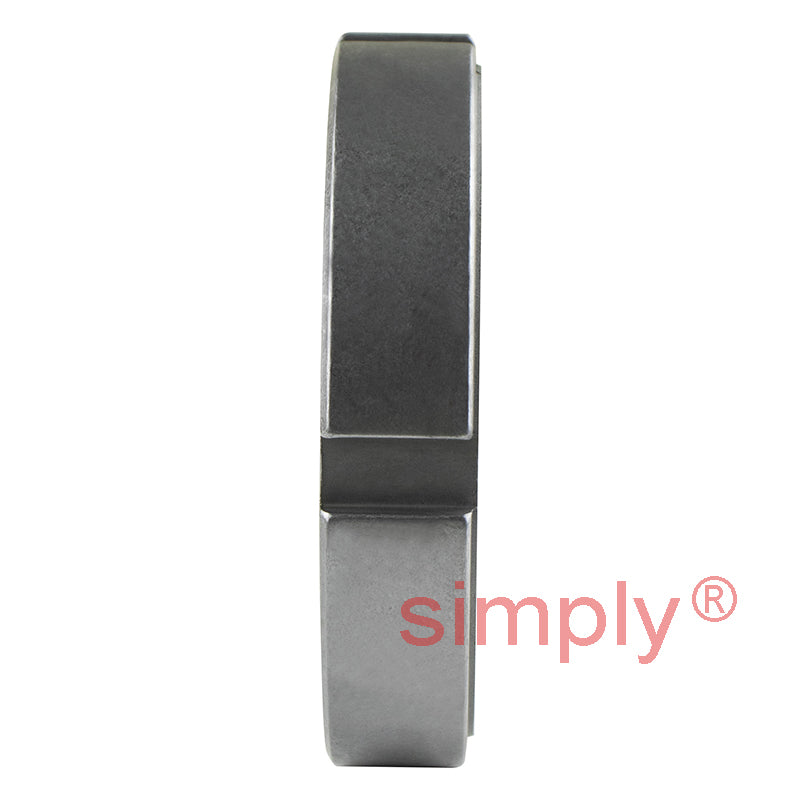

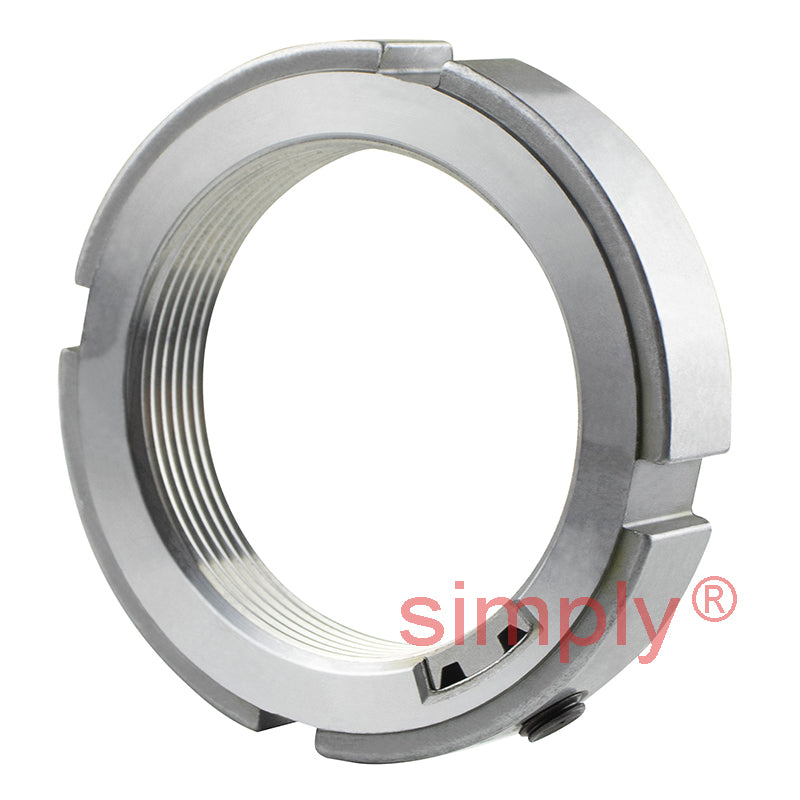

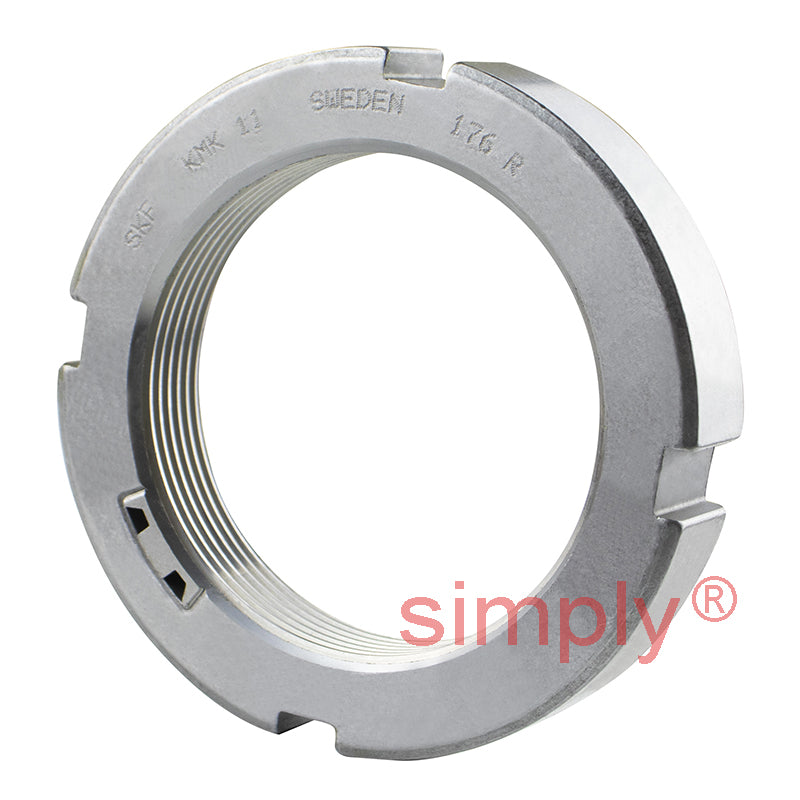

• SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
  • SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
  • SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
1 3

SKU: KMK11-SKF

SKF KMK11 Lock Nut with Integral Locking Device M55x2mm

SKF KMK11 Lock Nut with Integral Locking Device M55x2mm
CHF 64.00 ex VAT
CHF 64.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 50.38
19+ CHF 47.55
29+ CHF 46.98
39+ CHF 46.42
49+ CHF 45.85
74+ CHF 45.29
99+ CHF 42.46
199+ CHF 41.89
249+ CHF 41.32
499+ CHF 40.76
999+ CHF 39.63
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M55x2
Technical
d1 69mm
d3 75mm
B 13mm
b 7mm
h 3mm
Axial load capacity 91.5 kN
Loosening torque 172 Nm
Weight 0.19 kg
G M55x2
Designation KMK11
Locking device HN11
Grub screw M8
Grub screw torque 18 Nm
