SKU: KMK14-SKF

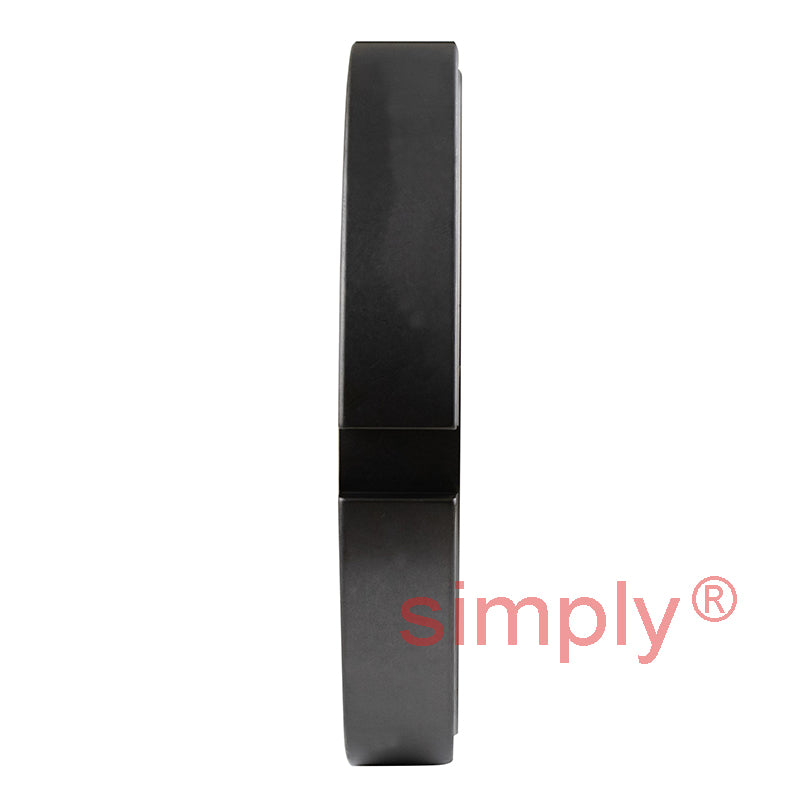

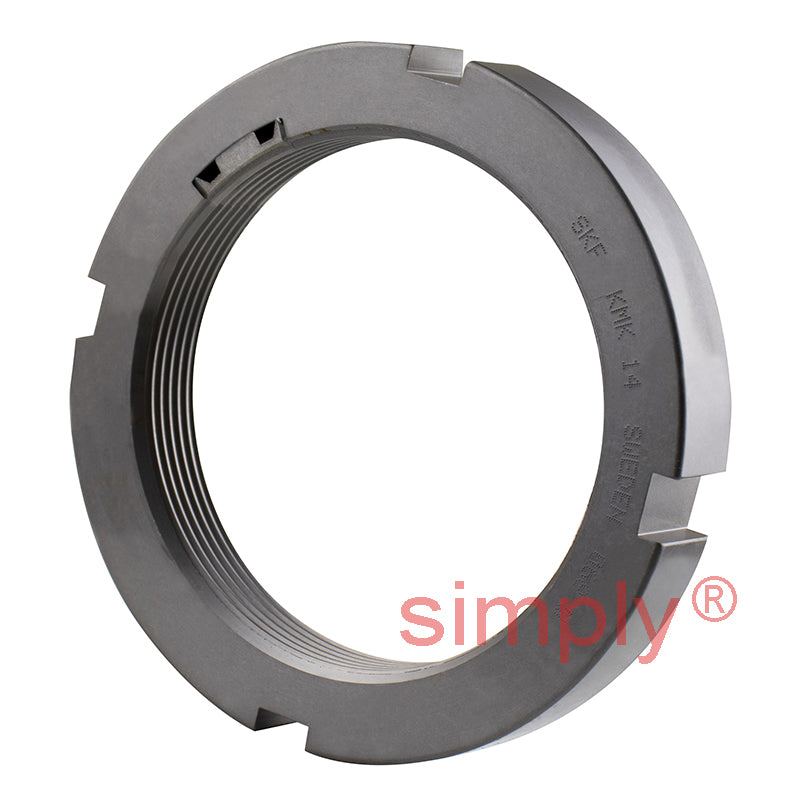

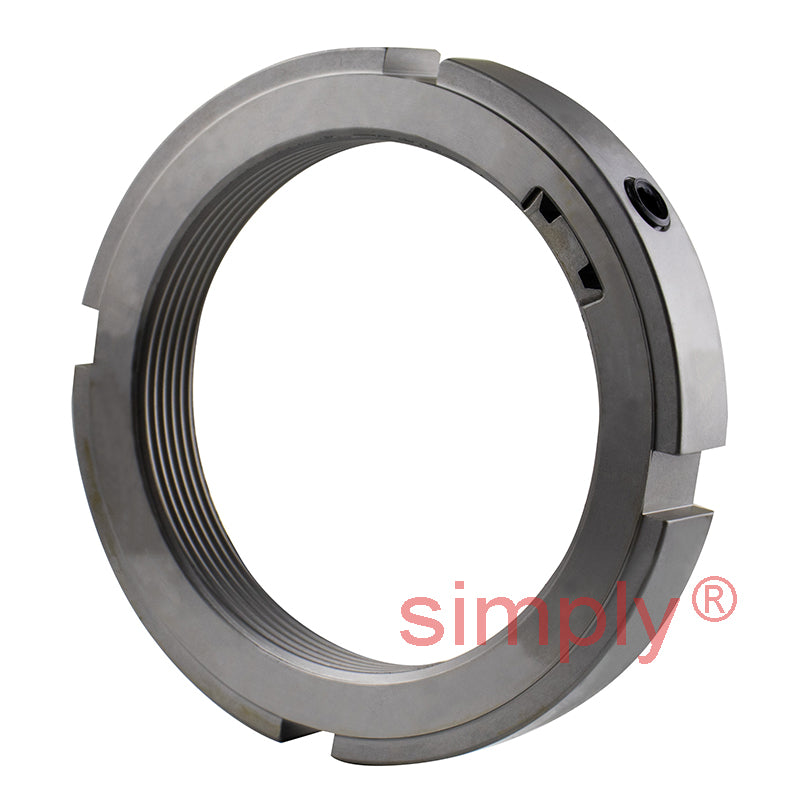

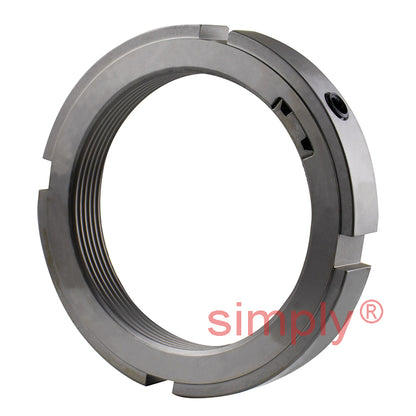

SKF KMK14 Lock Nut with Integral Locking Device M70x2mm

SKF KMK14 Lock Nut with Integral Locking Device M70x2mm
CHF 95.00 ex VAT
CHF 95.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 75.21
19+ CHF 70.98
29+ CHF 70.14
39+ CHF 69.29
49+ CHF 68.45
74+ CHF 67.60
99+ CHF 63.38
199+ CHF 62.53
249+ CHF 61.69
499+ CHF 60.84
999+ CHF 59.15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M70x2
Technical
d1 85mm
d3 92mm
B 14mm
b 8mm
h 3.5mm
Axial load capacity 118 kN
Loosening torque 219 Nm
Weight 0.28 kg
G M70x2
Designation KMK14
Locking device HN14
Grub screw M8
Grub screw torque 18 Nm
