SKU: KMK16-SKF

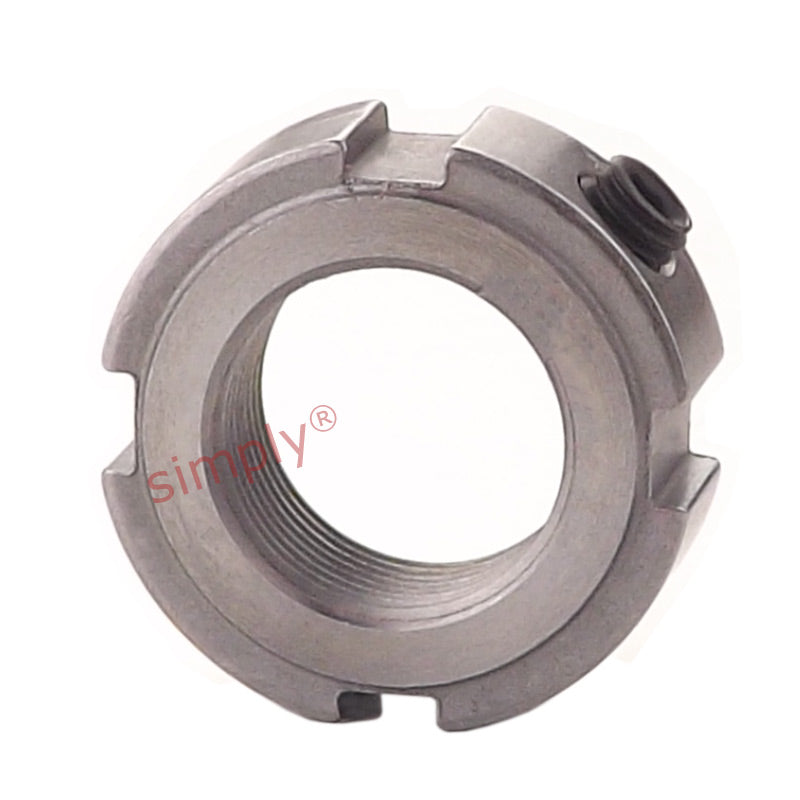

SKF KMK16 Lock Nut with Integral Locking Device M80x2mm
SKF KMK16 Lock Nut with Integral Locking Device M80x2mm
Regular price
CHF 132.87
ex VAT
Regular price
Sale price
CHF 132.87
ex VAT
In stock
Price Break
10+
CHF 118.25
19+
CHF 111.61
29+
CHF 110.28
39+
CHF 108.95
49+
CHF 107.62
74+
CHF 106.30
99+
CHF 99.65
199+
CHF 98.32
249+
CHF 97.00
499+
CHF 95.67
999+
CHF 93.01
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M80x2
Technical
Technical
| d1 | 98mm |
|---|---|
| d3 | 105mm |
| B | 18mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 173 kN |
| Loosening torque | 378 Nm |
| Weight | 0.45 kg |
| G | M80x2 |
| Designation | KMK16 |
| Locking device | HN16 |
| Grub screw | M8 |
| Grub screw torque | 18 Nm |
