SKU: KMK20-SKF

SKF KMK20 Lock Nut with Integral Locking Device M100x2mm

Name: SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
Brand: SKF
SKU: KMK20-SKF
Price: 131.00 CHF
Availability: InStock

CHF 131.00 ex VAT

Sale Sold out

Low stock

Price Break

10+ CHF 104.26

19+ CHF 98.41

29+ CHF 97.23

39+ CHF 96.06

49+ CHF 94.89

74+ CHF 93.72

99+ CHF 87.86

199+ CHF 86.69

249+ CHF 85.52

499+ CHF 84.35

999+ CHF 82.01

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

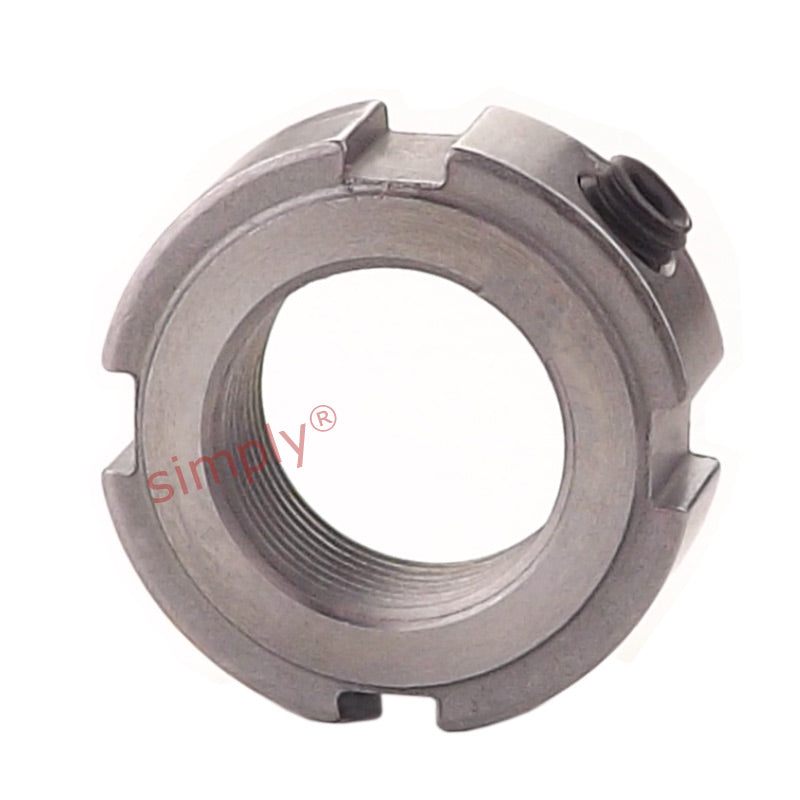

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M100x2

Technical

d1	122mm
d3	130mm
B	20mm
b	10mm
h	4mm
Axial load capacity	255 kN
Loosening torque	472 Nm
Weight	0.8 kg
G	M100x2
Designation	KMK20
Locking device	HN20
Grub screw	M10
Grub screw torque	35 Nm
