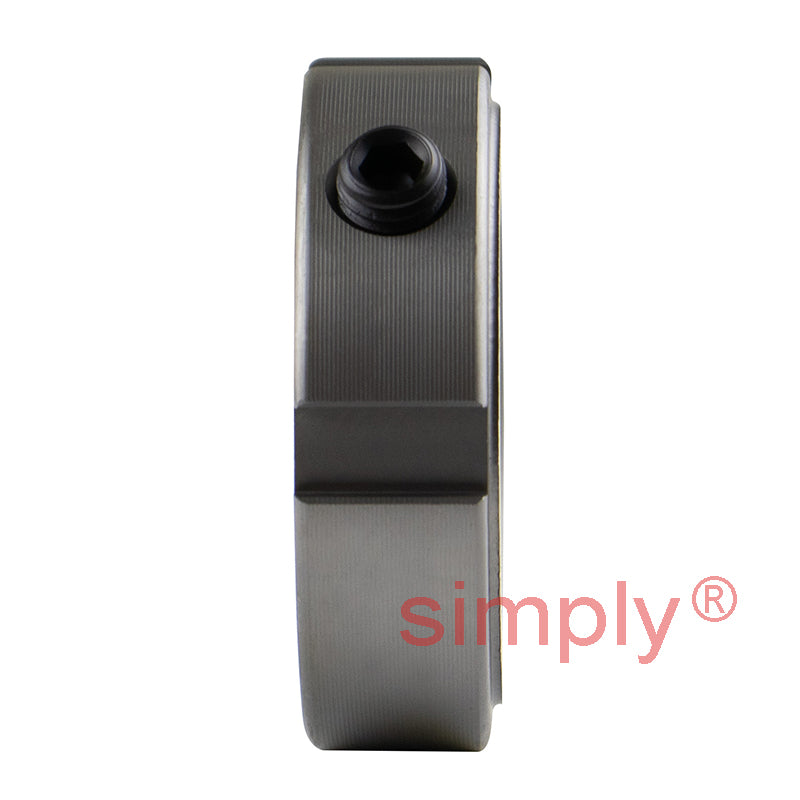

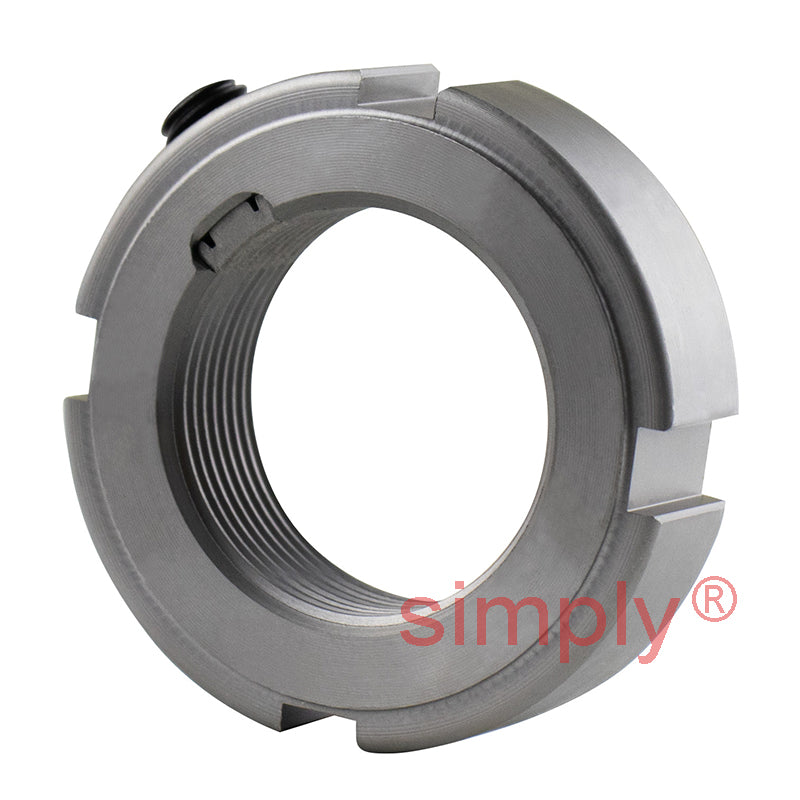

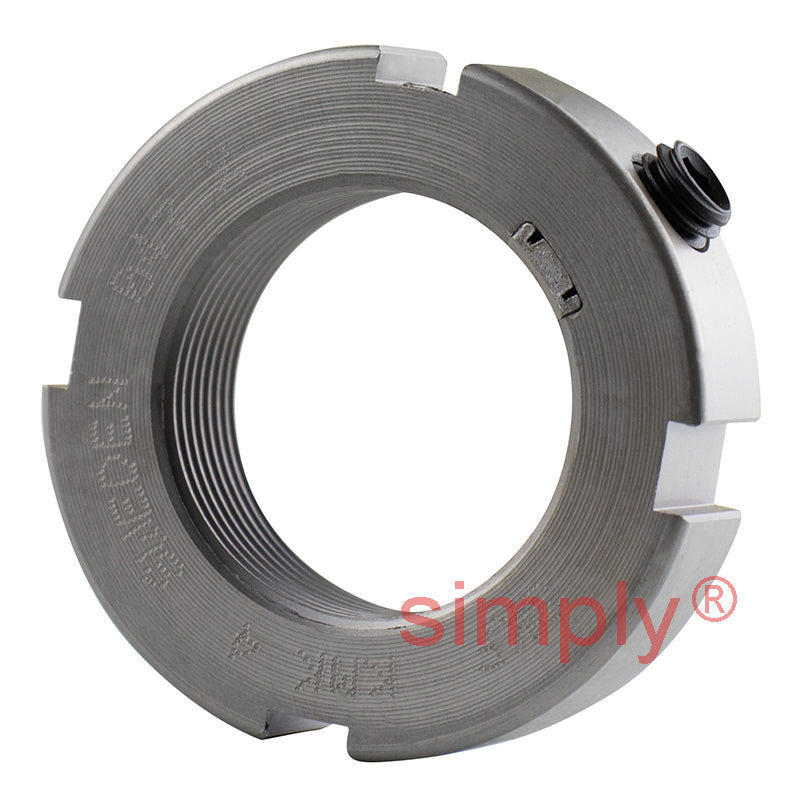

• SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
  • SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
  • SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
1 3

SKU: KMK4-SKF

SKF KMK4 Lock Nut with Integral Locking Device M20x1mm

SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
CHF 43.00 ex VAT
CHF 43.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 33.68
19+ CHF 31.79
29+ CHF 31.41
39+ CHF 31.03
49+ CHF 30.65
74+ CHF 30.27
99+ CHF 28.38
199+ CHF 28.00
249+ CHF 27.63
499+ CHF 27.25
999+ CHF 26.49
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M20x1
Technical
d1 28mm
d3 32mm
B 9mm
b 4mm
h 2mm
Axial load capacity 24 kN
Loosening torque 16 Nm
Weight 0.03 kg
G M20x1
Designation KMK4
Locking device HN4
Grub screw M5
Grub screw torque 4 Nm
