• SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
  • SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
  • SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
1 3

SKU: KMK6-SKF

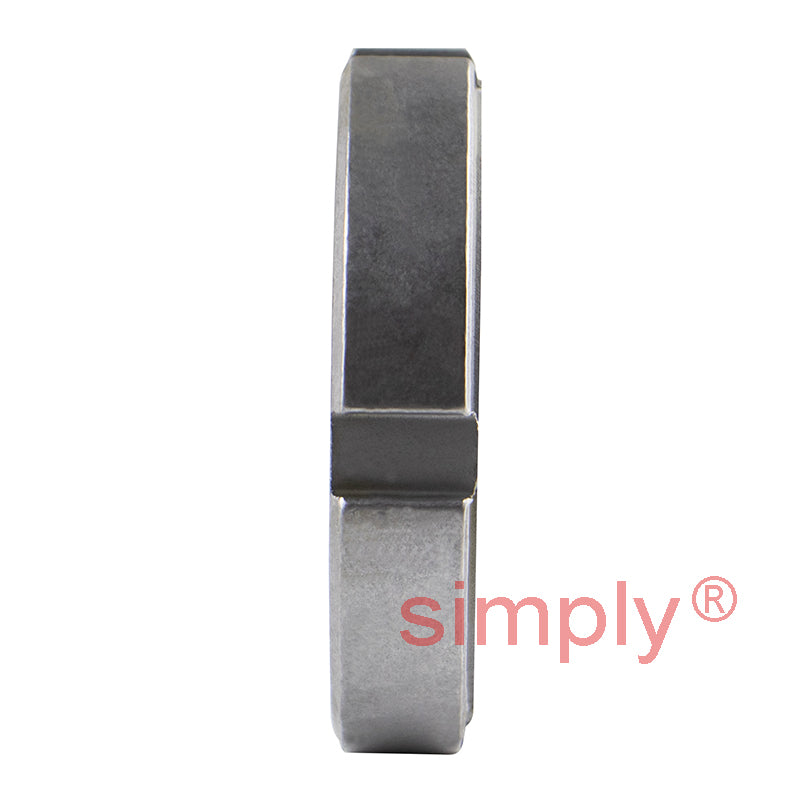

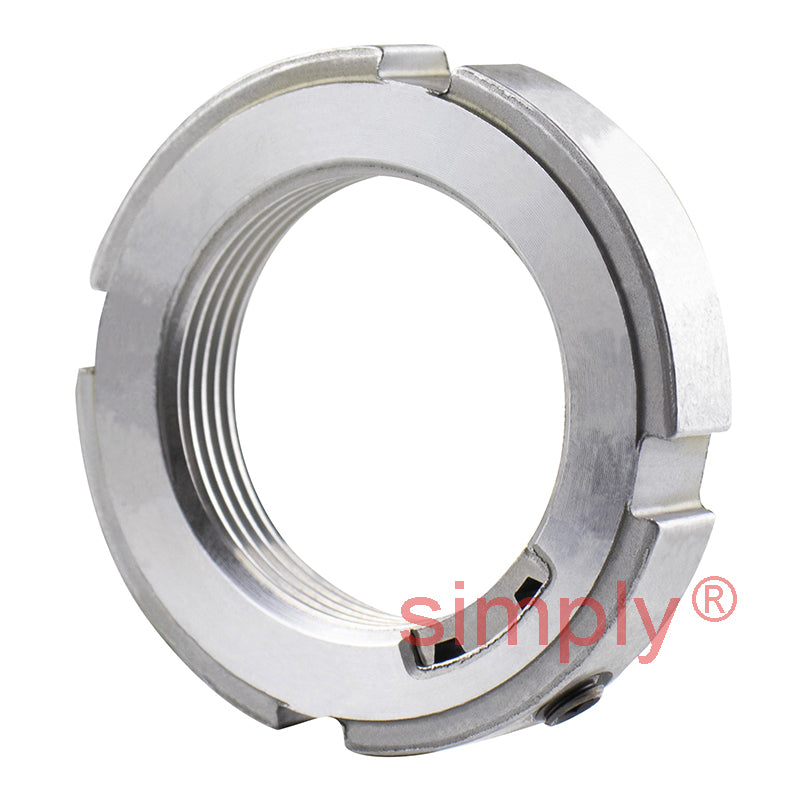

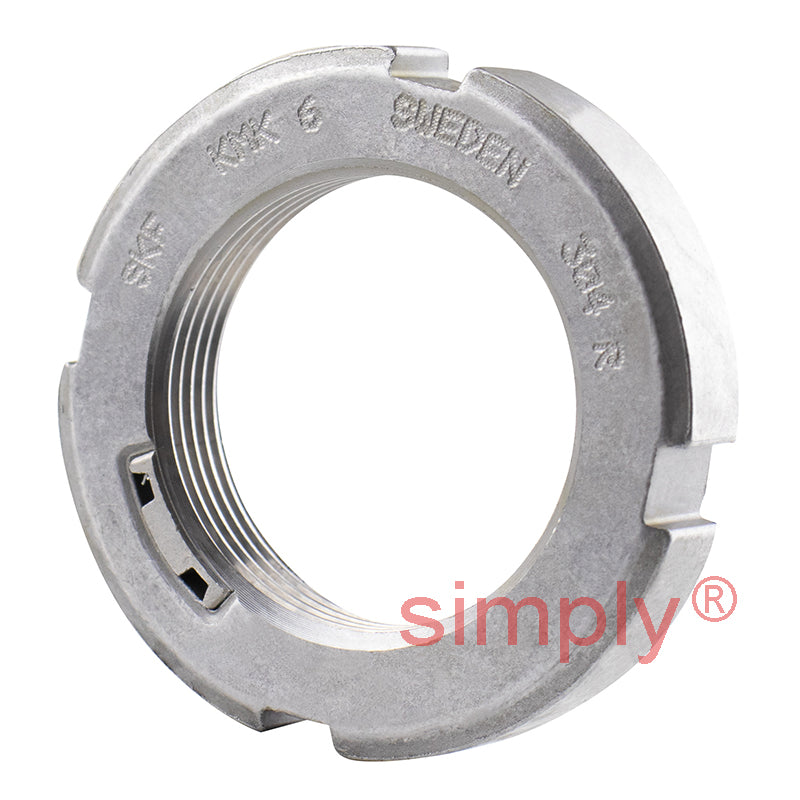

SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm

SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
CHF 45.00 ex VAT
CHF 45.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 35.80
19+ CHF 33.79
29+ CHF 33.38
39+ CHF 32.98
49+ CHF 32.58
74+ CHF 32.18
99+ CHF 30.17
199+ CHF 29.76
249+ CHF 29.36
499+ CHF 28.96
999+ CHF 28.15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M30x1.5
Technical
d1 41mm
d3 45mm
B 9mm
b 5mm
h 2mm
Axial load capacity 36.5 kN
Loosening torque 35 Nm
Weight 0.06 kg
G M30x1.5
Designation KMK6
Locking device HN6
Grub screw M5
Grub screw torque 4 Nm
