SKU: KMK8-SKF

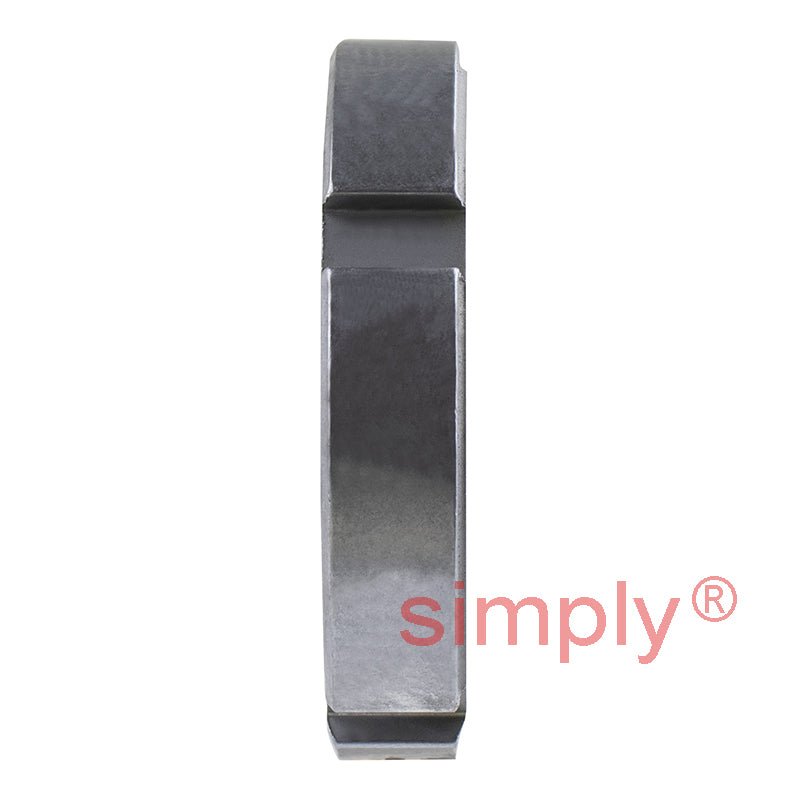

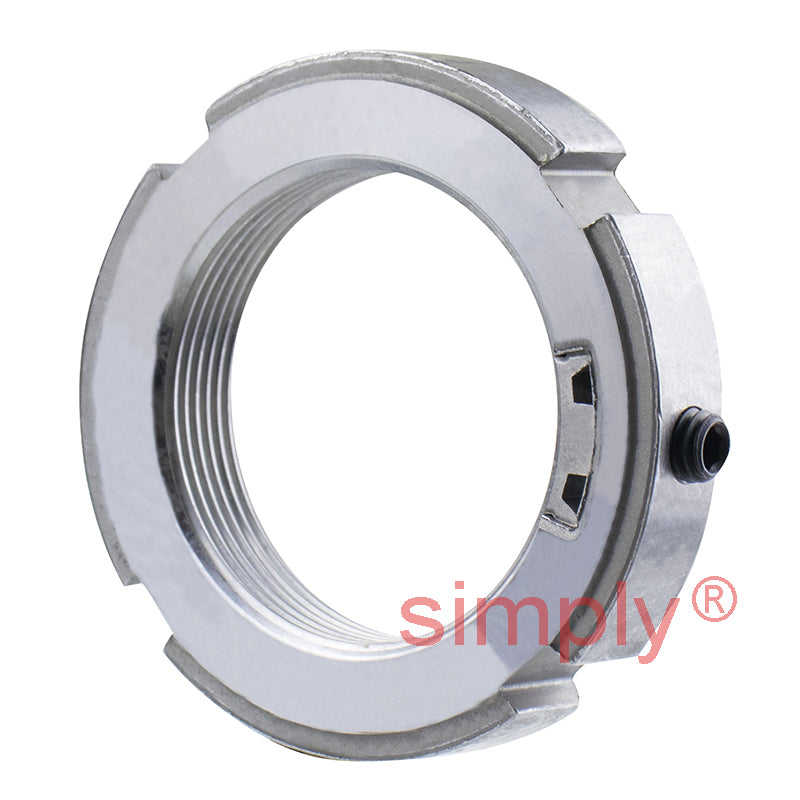

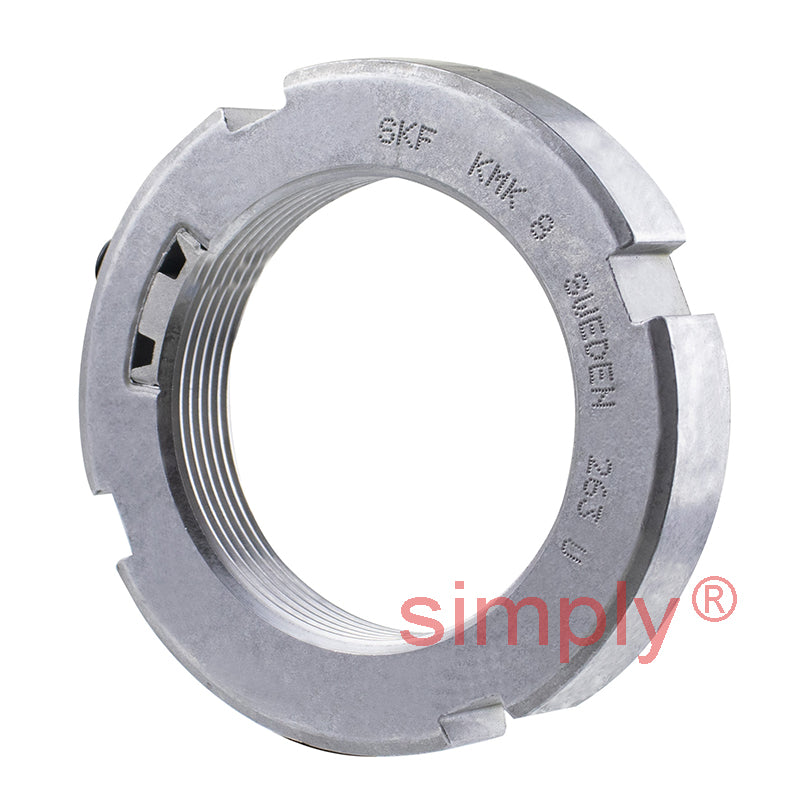

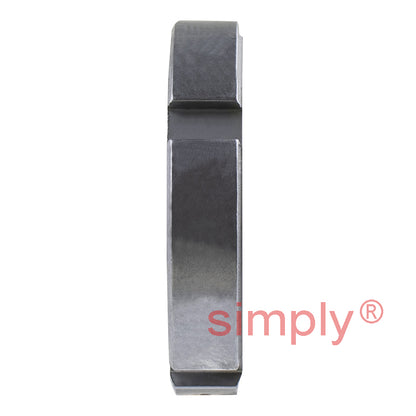

SKF KMK8 Lock Nut with Integral Locking Device M40x1.5mm
SKF KMK8 Lock Nut with Integral Locking Device M40x1.5mm
Regular price
CHF 52.00
ex VAT
Regular price
Sale price
CHF 52.00
ex VAT
In stock
Price Break
10+
CHF 41.04
19+
CHF 38.73
29+
CHF 38.27
39+
CHF 37.81
49+
CHF 37.35
74+
CHF 36.89
99+
CHF 34.58
199+
CHF 34.12
249+
CHF 33.66
499+
CHF 33.20
999+
CHF 32.28
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M40x1.5
Technical
Technical
| d1 | 53mm |
|---|---|
| d3 | 58mm |
| B | 11mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 62 kN |
| Loosening torque | 67 Nm |
| Weight | 0.11 kg |
| G | M40x1.5 |
| Designation | KMK8 |
| Locking device | HN8 |
| Grub screw | M6 |
| Grub screw torque | 8 Nm |
