SKU: KMK9-SKF

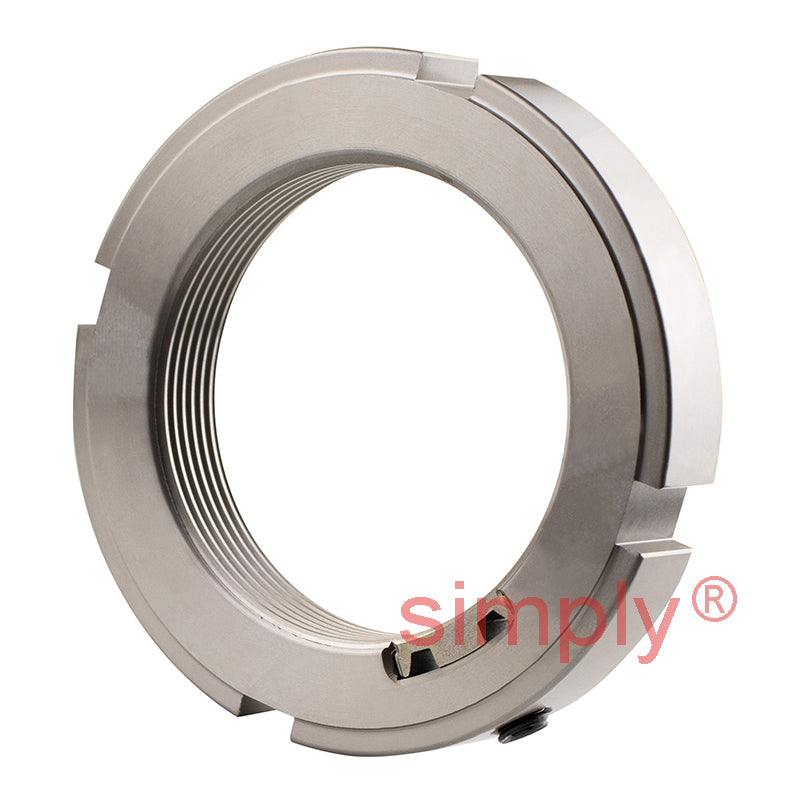

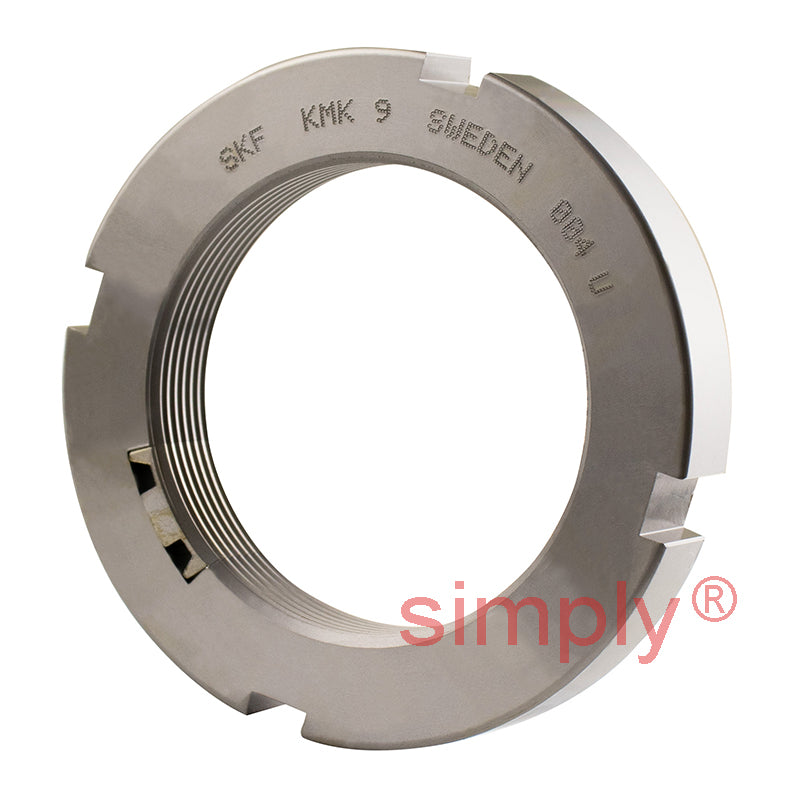

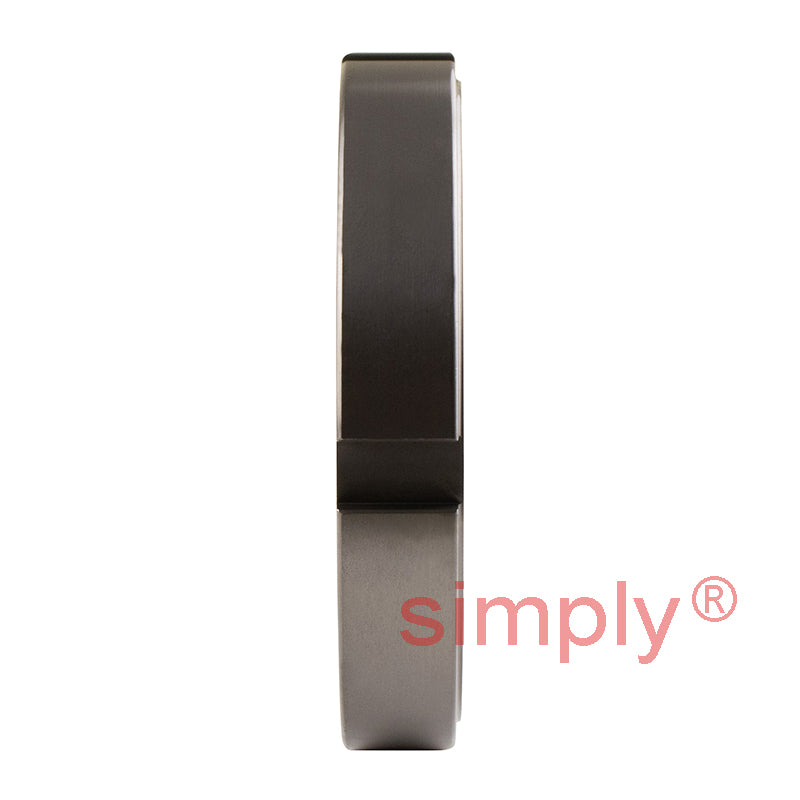

SKF KMK9 Lock Nut with Integral Locking Device M45x1.5mm
SKF KMK9 Lock Nut with Integral Locking Device M45x1.5mm
Regular price
CHF 55.47
ex VAT
Regular price
Sale price
CHF 55.47
ex VAT
In stock
Price Break
10+
CHF 49.37
19+
CHF 46.59
29+
CHF 46.04
39+
CHF 45.49
49+
CHF 44.93
74+
CHF 44.38
99+
CHF 41.60
199+
CHF 41.05
249+
CHF 40.49
499+
CHF 39.94
999+
CHF 38.83
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M45x1.5
Technical
Technical
| d1 | 60mm |
|---|---|
| d3 | 65mm |
| B | 11mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 78 kN |
| Loosening torque | 76 Nm |
| Weight | 0.14 kg |
| G | M45x1.5 |
| Designation | KMK9 |
| Locking device | HN9 |
| Grub screw | M6 |
| Grub screw torque | 8 Nm |
