SKU: KML28-SKF

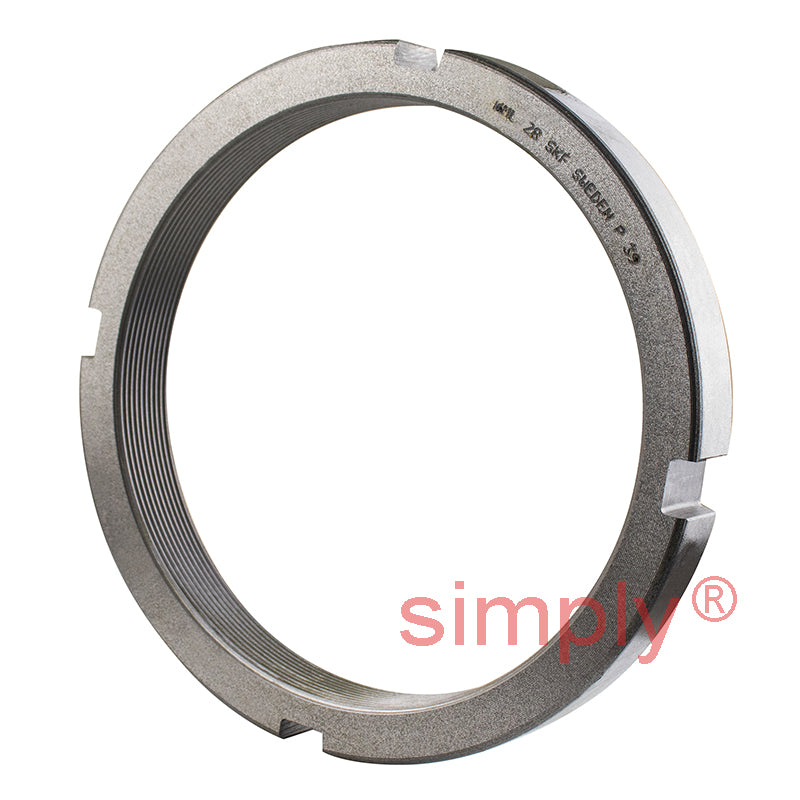

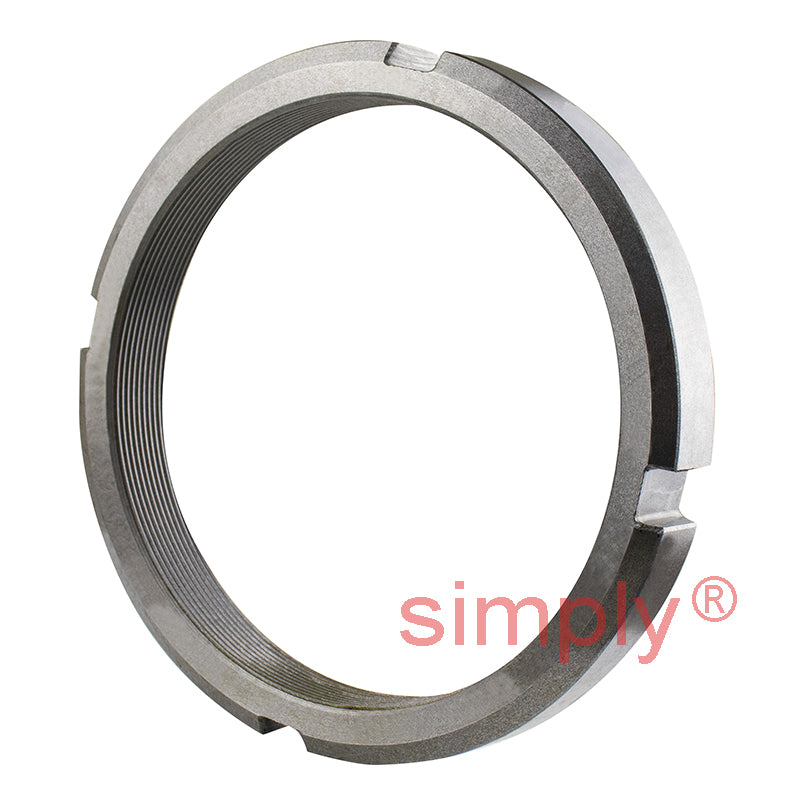

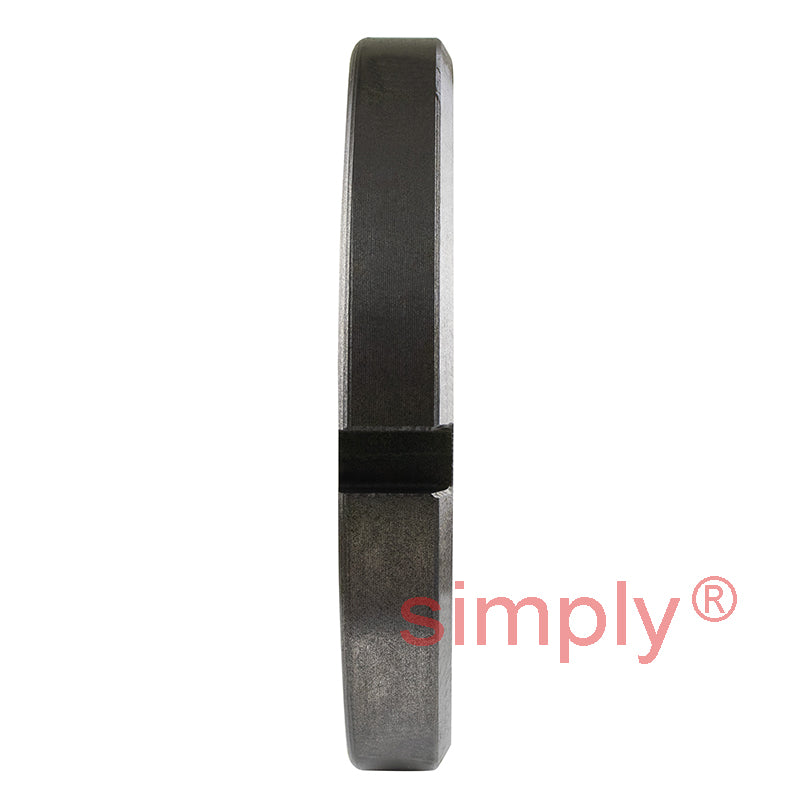

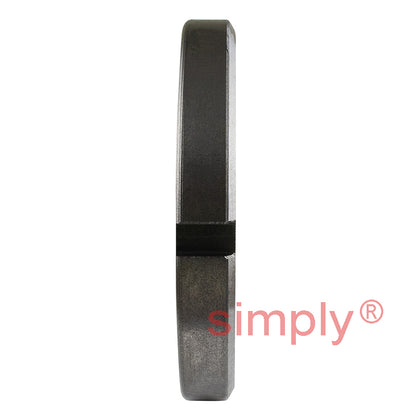

SKF KML28 Lock Nut (Lock Washer Type) M140x2mm
SKF KML28 Lock Nut (Lock Washer Type) M140x2mm
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
10+
CHF 98.04
19+
CHF 92.53
29+
CHF 91.43
39+
CHF 90.33
49+
CHF 89.22
74+
CHF 88.12
99+
CHF 82.61
199+
CHF 81.51
249+
CHF 80.41
499+
CHF 79.31
999+
CHF 77.11
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M140x2
Technical
Technical
| d1 | 155mm |
|---|---|
| d3 | 165mm |
| B | 22mm |
| b | 12mm |
| h | 5mm |
| Axial load capacity | 305 kN |
| Weight | 0.92 kg |
| G | M140x2 |
| Designation | KML28 |
| Washer | MBL28 |
| Spanner | TMFN23-30 |
