SKU: KMT0-MB

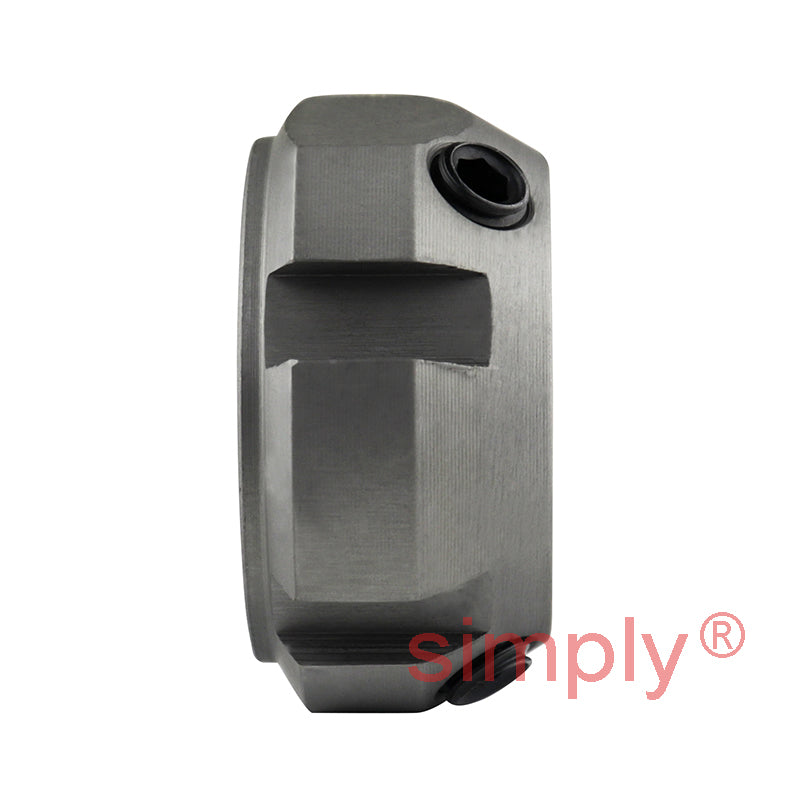

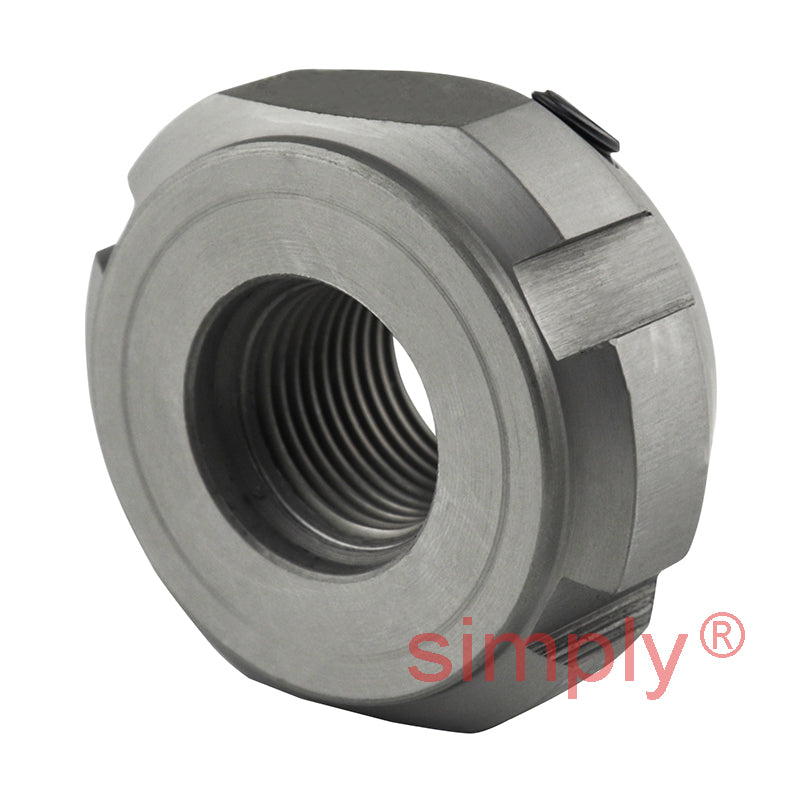

KMT0 Locknut with ISO Metric Threads 10x28x14mm
KMT0 Locknut with ISO Metric Threads 10x28x14mm
Regular price
CHF 27.00
ex VAT
Regular price
Sale price
CHF 27.00
ex VAT
In stock
Price Break
10+
CHF 21.14
19+
CHF 19.96
29+
CHF 19.72
39+
CHF 19.48
49+
CHF 19.24
74+
CHF 19.01
99+
CHF 17.82
199+
CHF 17.58
249+
CHF 17.34
499+
CHF 17.11
999+
CHF 16.63
Share this product
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M10x0.75
Technical
Technical
| G | M10x0.75 |
|---|---|
| d1 | 21mm |
| d2 | 28mm |
| d3 | 23mm |
| d4 | 11mm |
| B | 14mm |
| b | 4mm |
| h | 2mm |
| M | 24mm |
| Axial load capacity | 35 kN |
| Loosening torque | 15 N m |
| Mass | 0.045 kg |
| Spanner | HN2/3 |
| Grub screw | M5 |
| Screw torque | 4.5 N m |
