SKU: KMT0-SKF

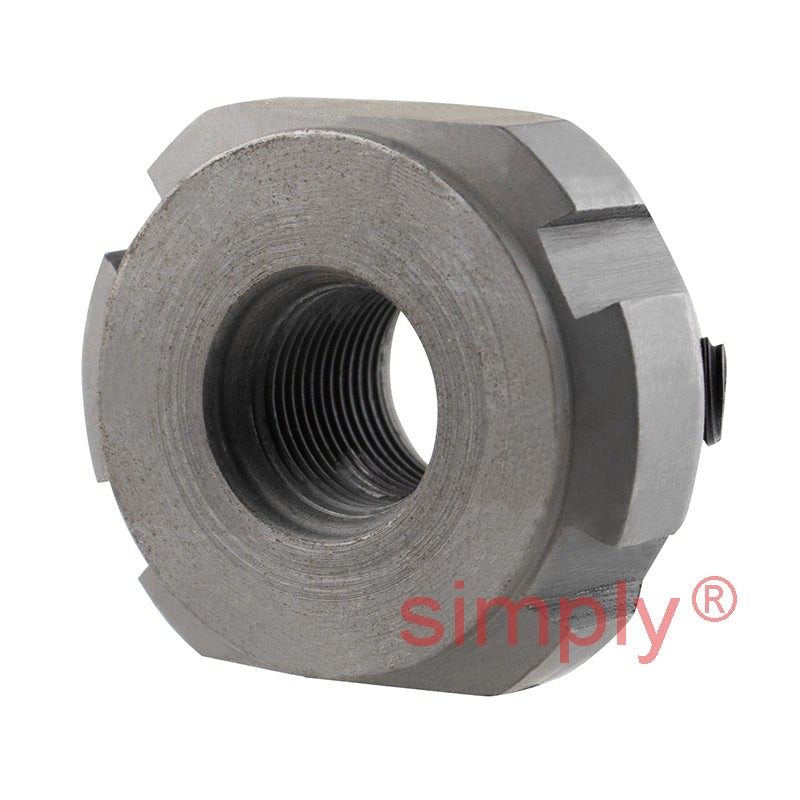

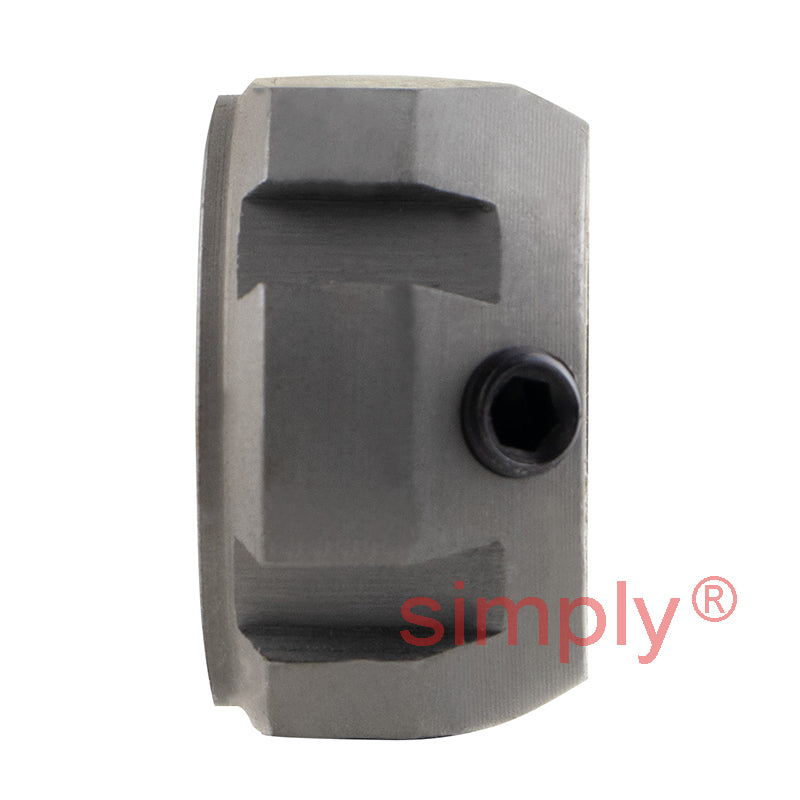

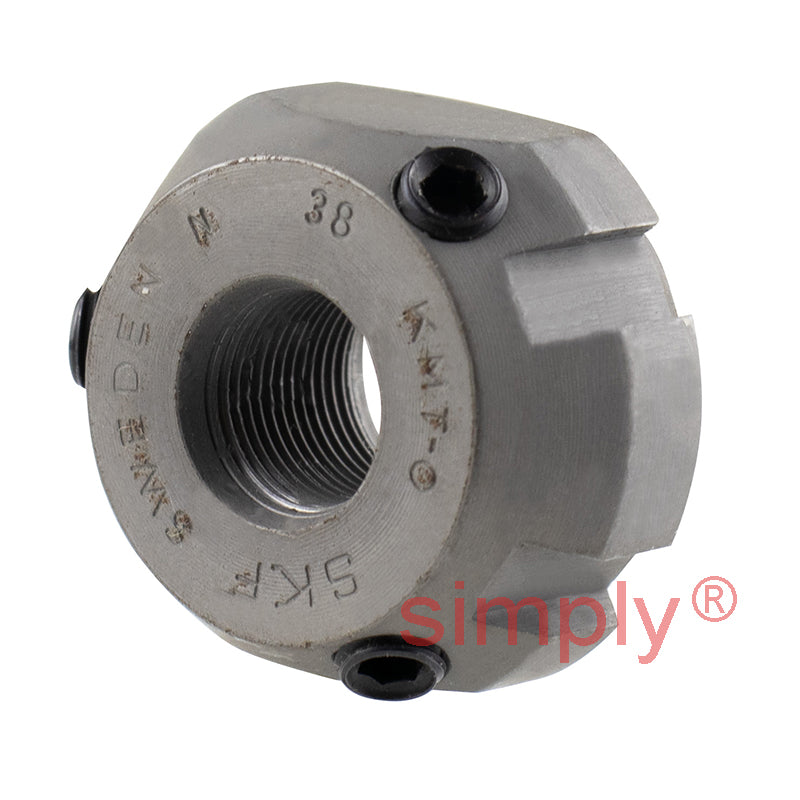

SKF KMT0 Precision Lock Nut with Locking Pins M10x0.75mm
SKF KMT0 Precision Lock Nut with Locking Pins M10x0.75mm
Regular price
CHF 91.00
ex VAT
Regular price
Sale price
CHF 91.00
ex VAT
In stock
Price Break
10+
CHF 71.93
19+
CHF 67.89
29+
CHF 67.08
39+
CHF 66.27
49+
CHF 65.46
74+
CHF 64.65
99+
CHF 60.61
199+
CHF 59.81
249+
CHF 59.00
499+
CHF 58.19
999+
CHF 56.57
Share this product
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10x0.75
Technical
Technical
| d1 | 21mm |
|---|---|
| d2 | 28mm |
| d3 | 23mm |
| d4 | 11mm |
| B | 14mm |
| b | 4mm |
| h | 2mm |
| M | 24mm |
| Axial load capacity | 35 kN |
| Loosening torque | 15 Nm |
| Weight | 0.045 kg |
| G | M10x0.75 |
| Spanner | HN2/3 |
| Grub screw | M5 |
| Screw torque | 4.5 Nm |
