SKU: KMT1-SKF

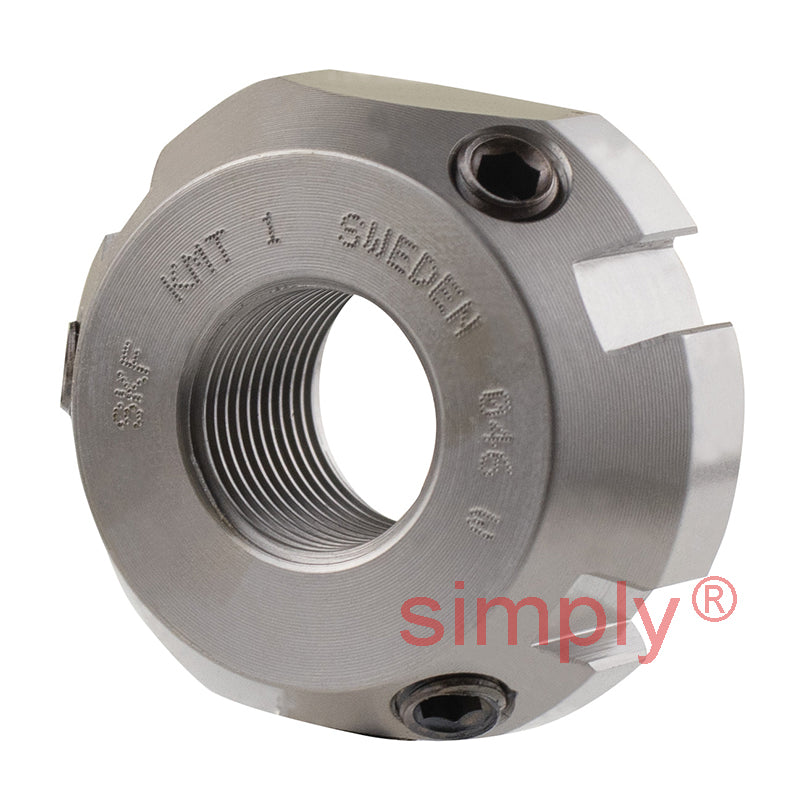

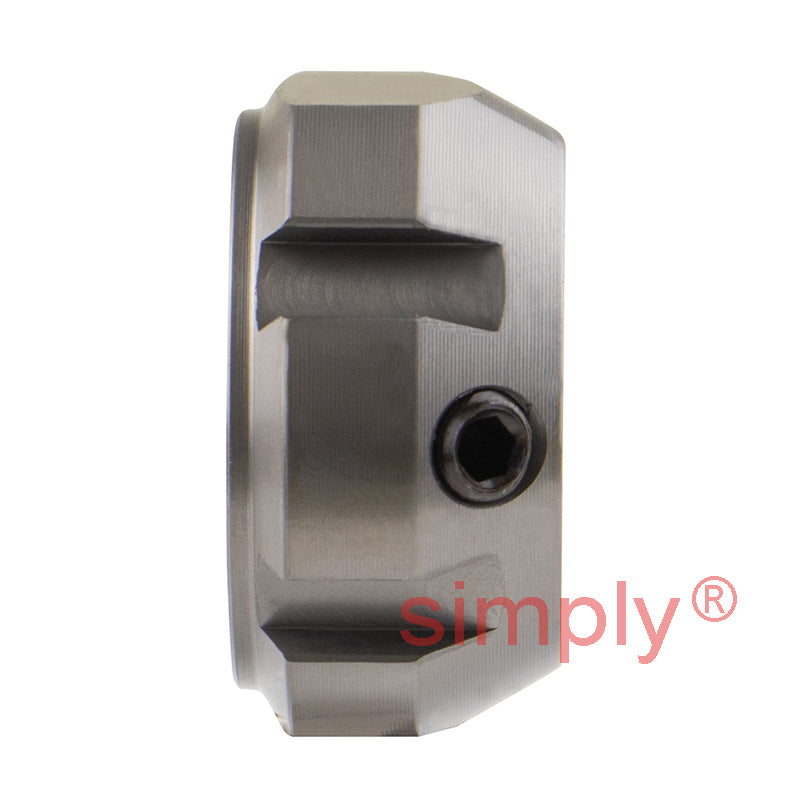

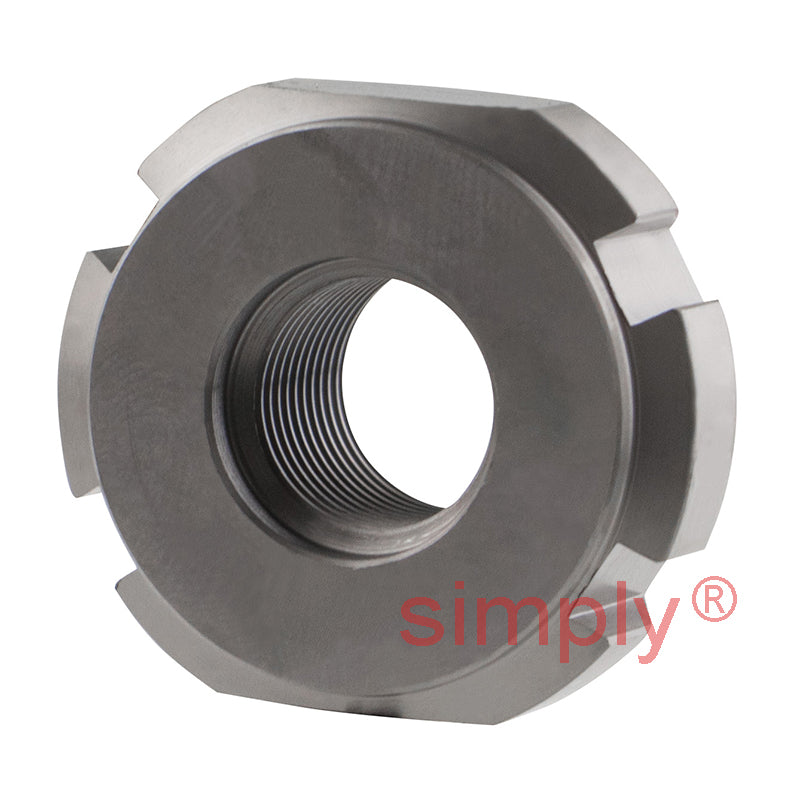

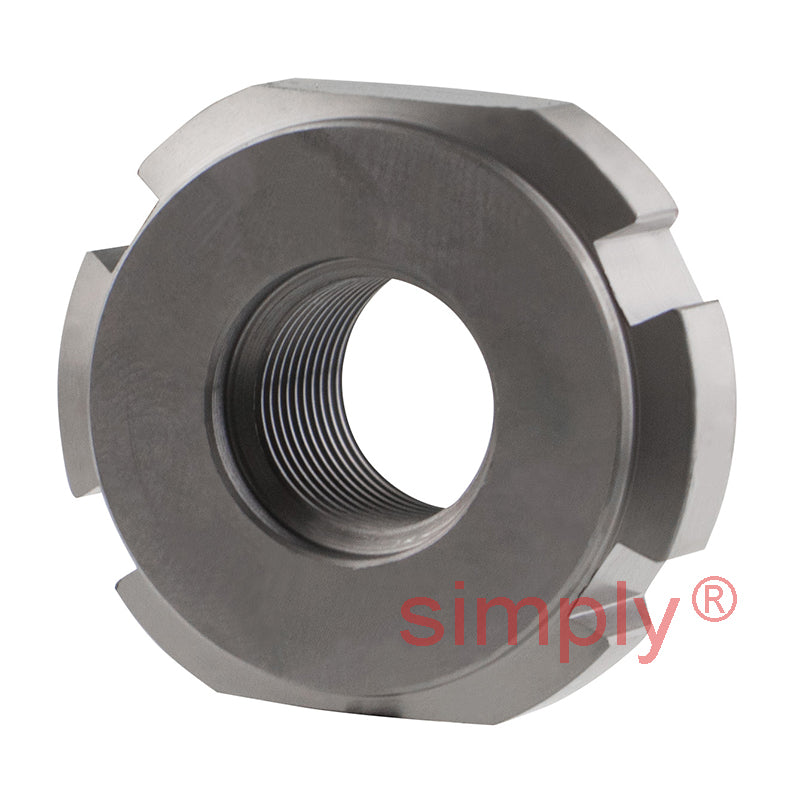

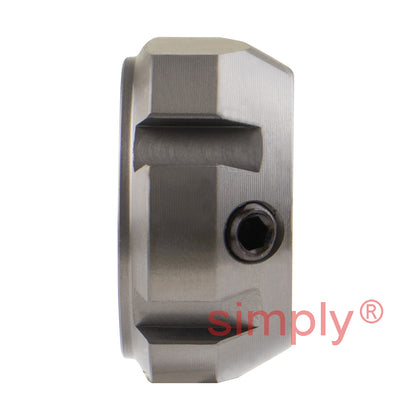

SKF KMT1 Precision Lock Nut with Locking Pins M12x1mm

SKF KMT1 Precision Lock Nut with Locking Pins M12x1mm
CHF 91.00 ex VAT
CHF 91.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 72.02
19+ CHF 67.98
29+ CHF 67.17
39+ CHF 66.36
49+ CHF 65.55
74+ CHF 64.74
99+ CHF 60.69
199+ CHF 59.88
249+ CHF 59.08
499+ CHF 58.27
999+ CHF 56.65
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M12x1
Technical
d1 23mm
d2 30mm
d3 25mm
d4 13mm
B 14mm
b 4mm
h 2mm
M 27mm
Axial load capacity 40 kN
Loosening torque 18 Nm
Weight 0.05 kg
G M12x1
Spanner HN3
Grub screw M5
Screw torque 4.5 Nm
