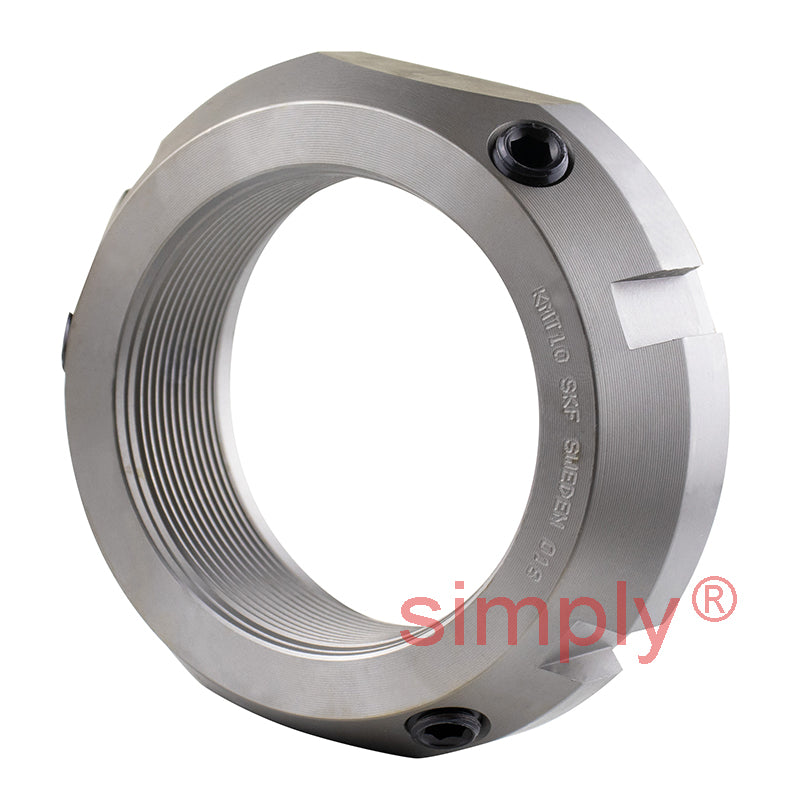

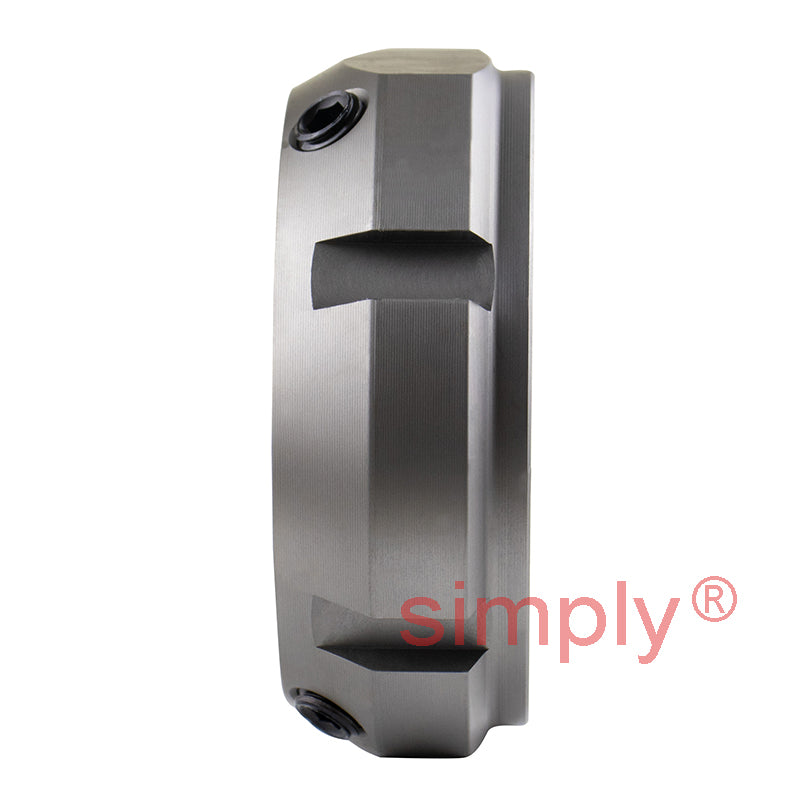

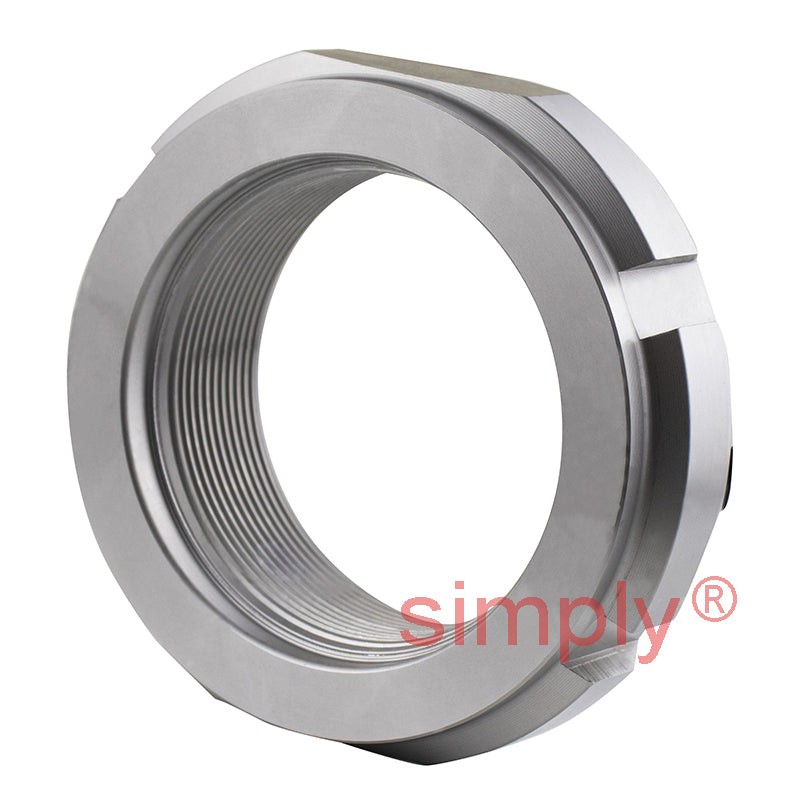

• SKF KMT10 Precision Lock Nut with Locking Pins M50x1.5mm
  • SKF KMT10 Precision Lock Nut with Locking Pins M50x1.5mm
  • SKF KMT10 Precision Lock Nut with Locking Pins M50x1.5mm
1 3

SKU: KMT10-SKF

SKF KMT10 Precision Lock Nut with Locking Pins M50x1.5mm

SKF KMT10 Precision Lock Nut with Locking Pins M50x1.5mm
CHF 102.00 ex VAT
CHF 102.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 80.68
19+ CHF 76.15
29+ CHF 75.24
39+ CHF 74.33
49+ CHF 73.43
74+ CHF 72.52
99+ CHF 67.99
199+ CHF 67.08
249+ CHF 66.17
499+ CHF 65.27
999+ CHF 63.45
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M50x1.5
Technical
d1 64mm
d2 75mm
d3 68mm
d4 52mm
B 25mm
b 7mm
h 3mm
M 70mm
Axial load capacity 300 kN
Loosening torque 115 Nm
Weight 0.4 kg
G M50x1.5
Spanner HN10/11
Grub screw M8
Screw torque 18 Nm
