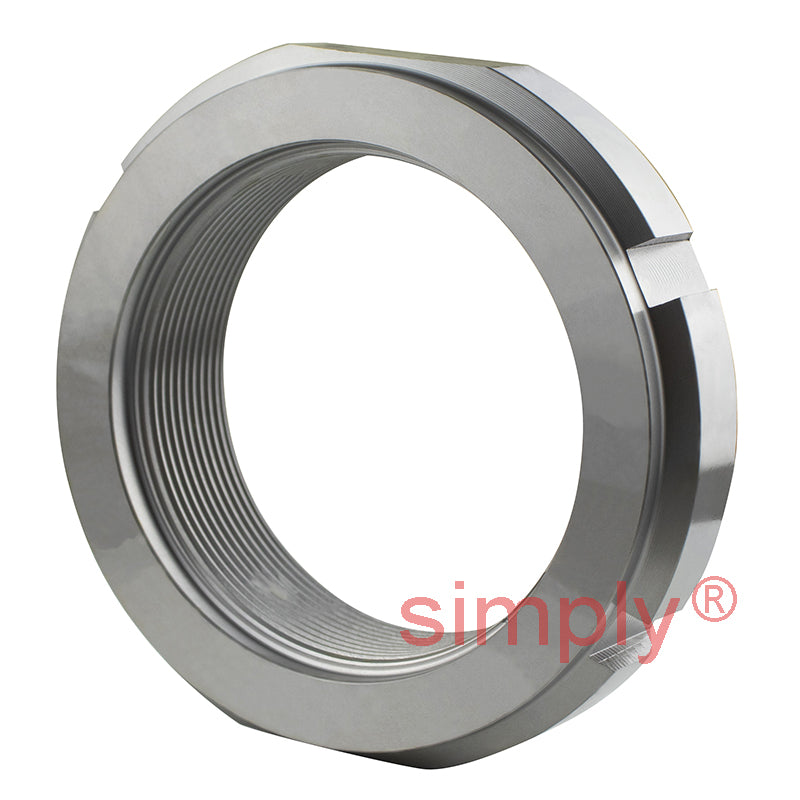

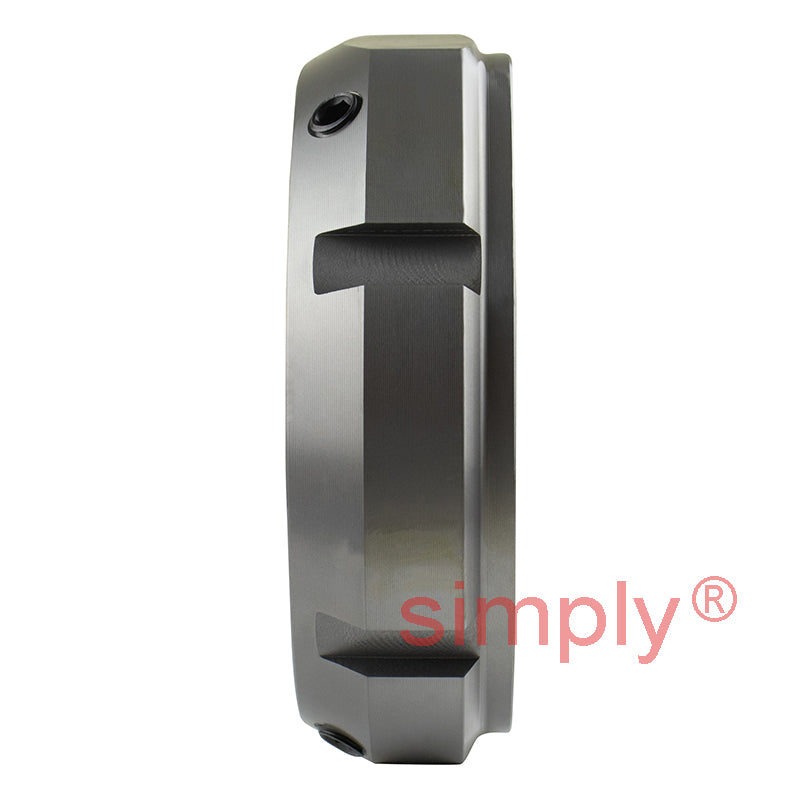

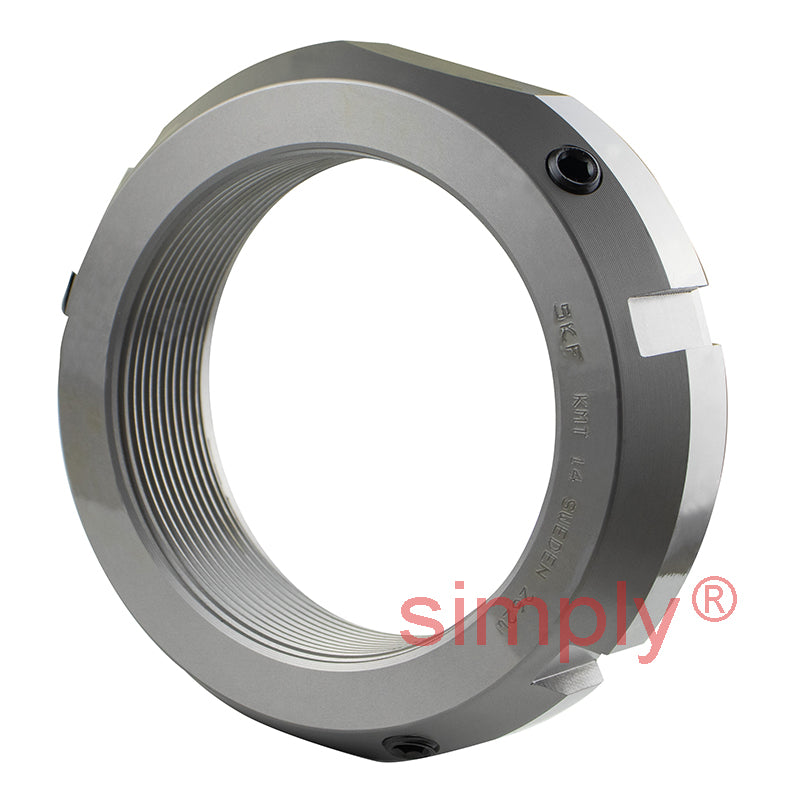

SKF KMT14 Precision Lock Nut with Locking Pins M70x2mm
SKF KMT14 Precision Lock Nut with Locking Pins M70x2mm
Regular price
CHF 149.79
ex VAT
Regular price
Sale price
CHF 149.79
ex VAT
In stock
Price Break
10+
CHF 133.31
19+
CHF 125.82
29+
CHF 124.33
39+
CHF 122.83
49+
CHF 121.33
74+
CHF 119.83
99+
CHF 112.34
199+
CHF 110.84
249+
CHF 109.35
499+
CHF 107.85
999+
CHF 104.85
Couldn't load pickup availability
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M70x2
Technical
Technical
| d1 | 88mm |
|---|---|
| d2 | 100mm |
| d3 | 92mm |
| d4 | 72mm |
| B | 28mm |
| b | 8mm |
| h | 3.5mm |
| M | 95mm |
| Axial load capacity | 490 kN |
| Loosening torque | 285 Nm |
| Weight | 0.75 kg |
| G | M70x2 |
| Spanner | HN15 |
| Grub screw | M8 |
| Screw torque | 18 Nm |
