SKU: KMT20-SKF

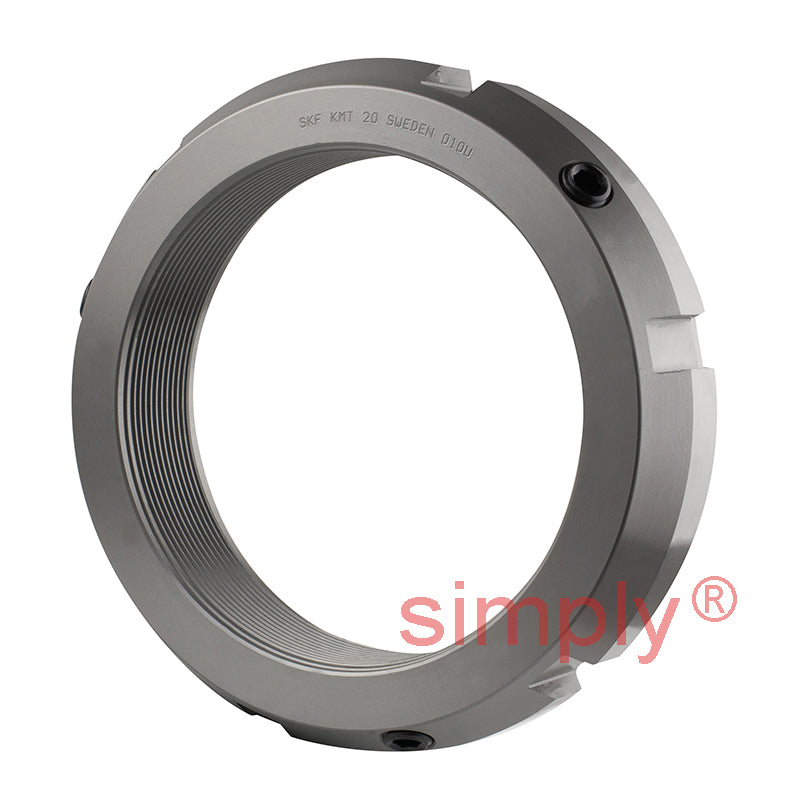

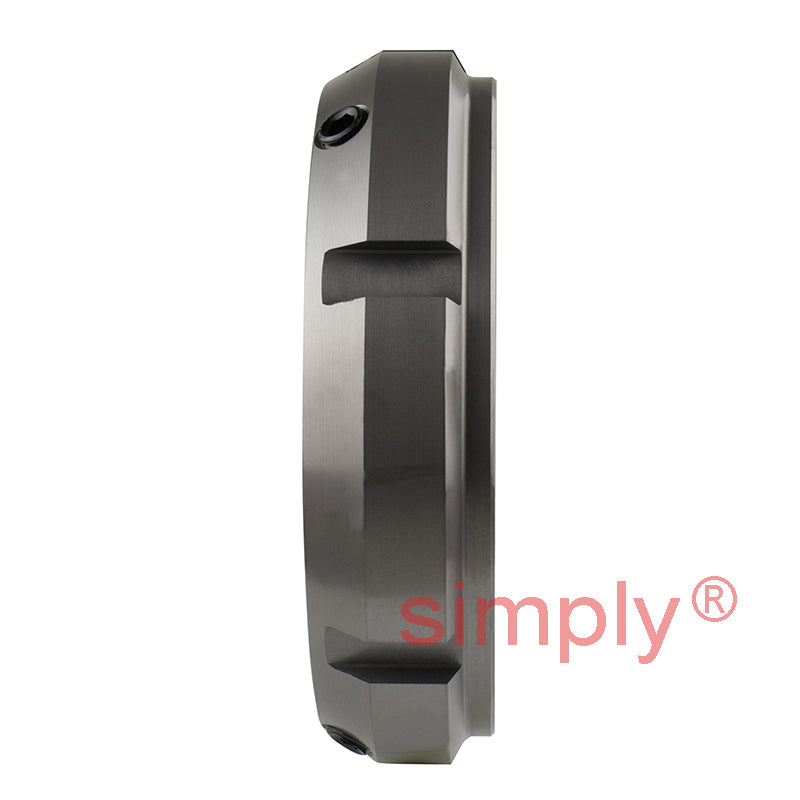

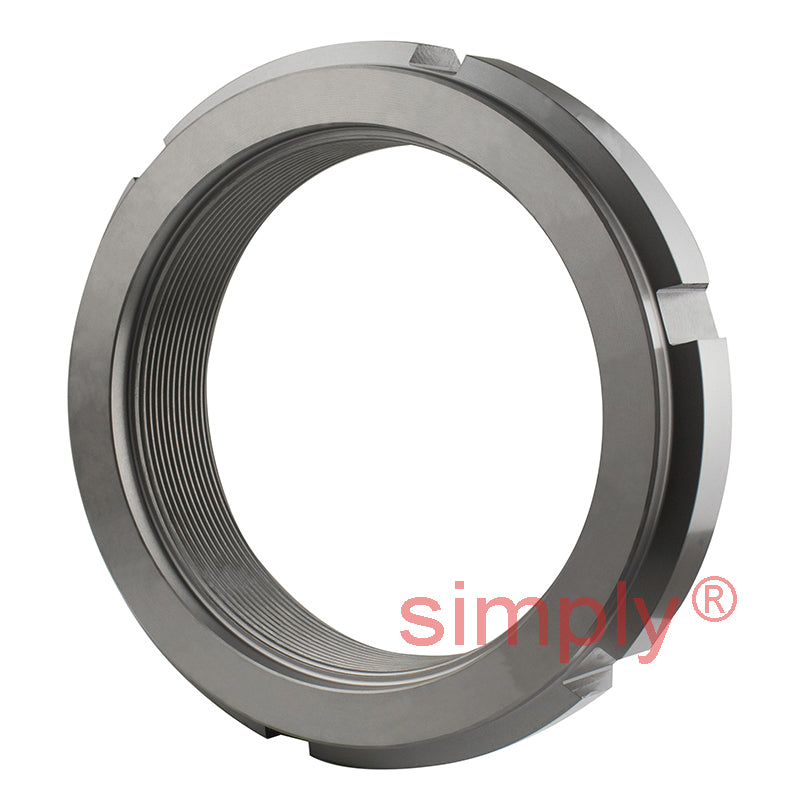

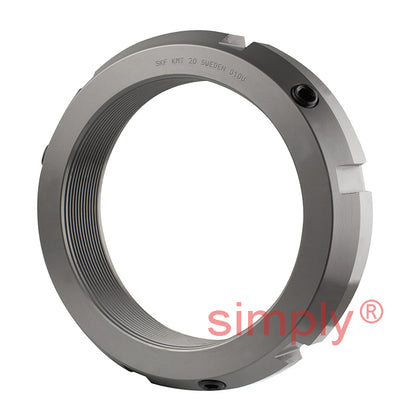

SKF KMT20 Precision Lock Nut with Locking Pins M100x2mm

SKF KMT20 Precision Lock Nut with Locking Pins M100x2mm
CHF 221.00 ex VAT
CHF 221.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 175.82
19+ CHF 165.94
29+ CHF 163.96
39+ CHF 161.99
49+ CHF 160.01
74+ CHF 158.04
99+ CHF 148.16
199+ CHF 146.18
249+ CHF 144.21
499+ CHF 142.23
999+ CHF 138.28
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M100x2
Technical
d1 122mm
d2 135mm
d3 125mm
d4 103mm
B 32mm
b 10mm
h 4mm
Axial load capacity 740 kN
Loosening torque 840 Nm
Weight 1.3 kg
G M100x2
Spanner HN20
Grub screw M10
Screw torque 35 Nm
