SKU: KMT22-MB

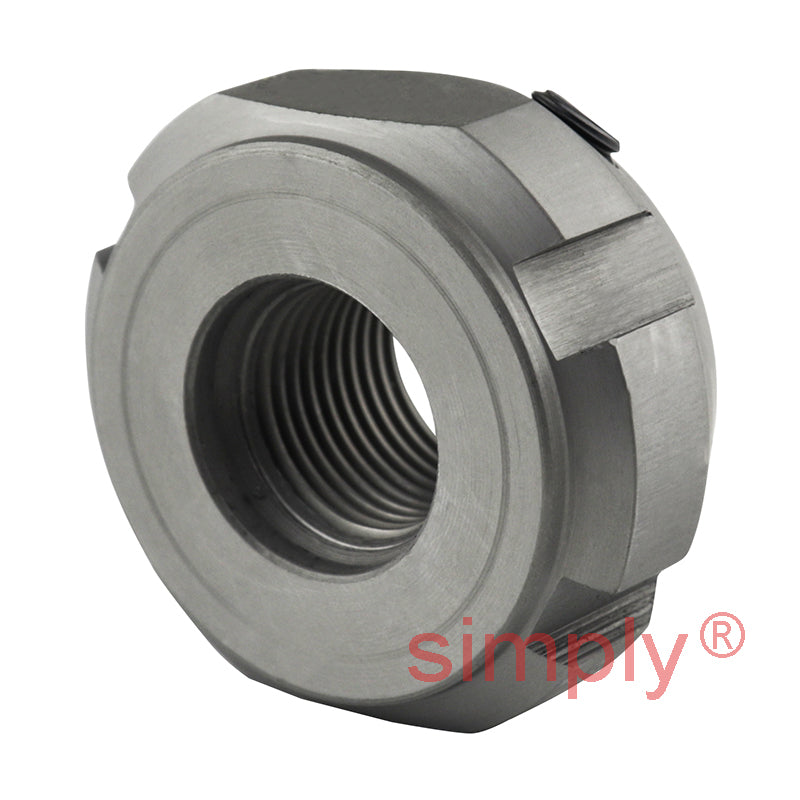

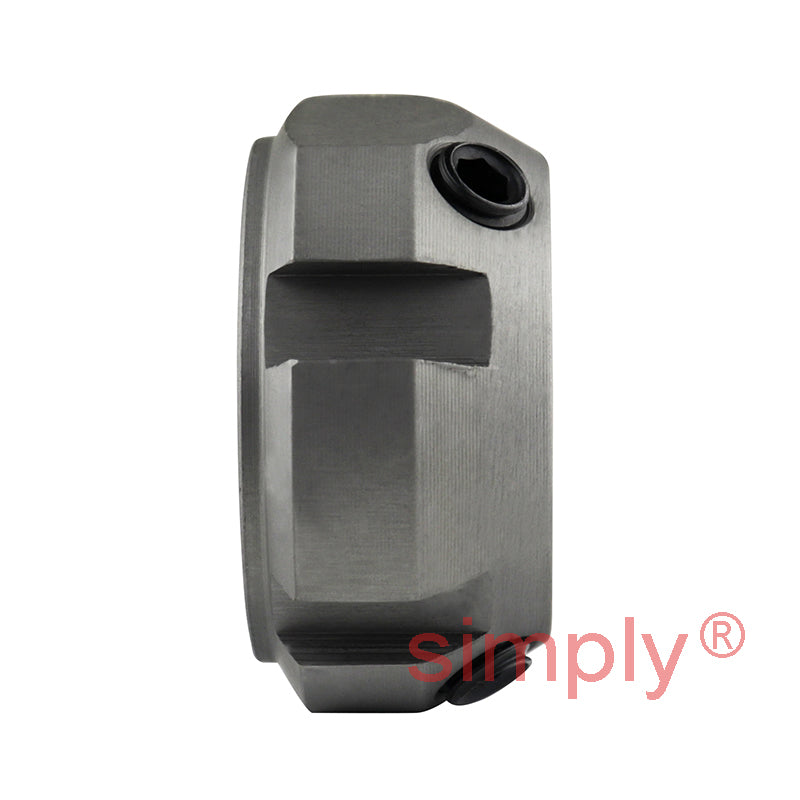

KMT22 Locknut with ISO Metric Threads 110x145x32mm
KMT22 Locknut with ISO Metric Threads 110x145x32mm
Regular price
CHF 90.00
ex VAT
Regular price
Sale price
CHF 90.00
ex VAT
In stock
Price Break
10+
CHF 71.08
19+
CHF 67.09
29+
CHF 66.29
39+
CHF 65.49
49+
CHF 64.69
74+
CHF 63.90
99+
CHF 59.90
199+
CHF 59.10
249+
CHF 58.31
499+
CHF 57.51
999+
CHF 55.91
Share this product
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M110x2
Technical
Technical
| G | M110x2 |
|---|---|
| d1 | 132mm |
| d2 | 145mm |
| d3 | 134mm |
| d4 | 112mm |
| B | 32mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 800 kN |
| Loosening torque | 960 N m |
| Mass | 1.45 kg |
| Spanner | HN22 |
| Grub screw | M10 |
| Screw torque | 35 N m |
