SKU: KMT24-SKF

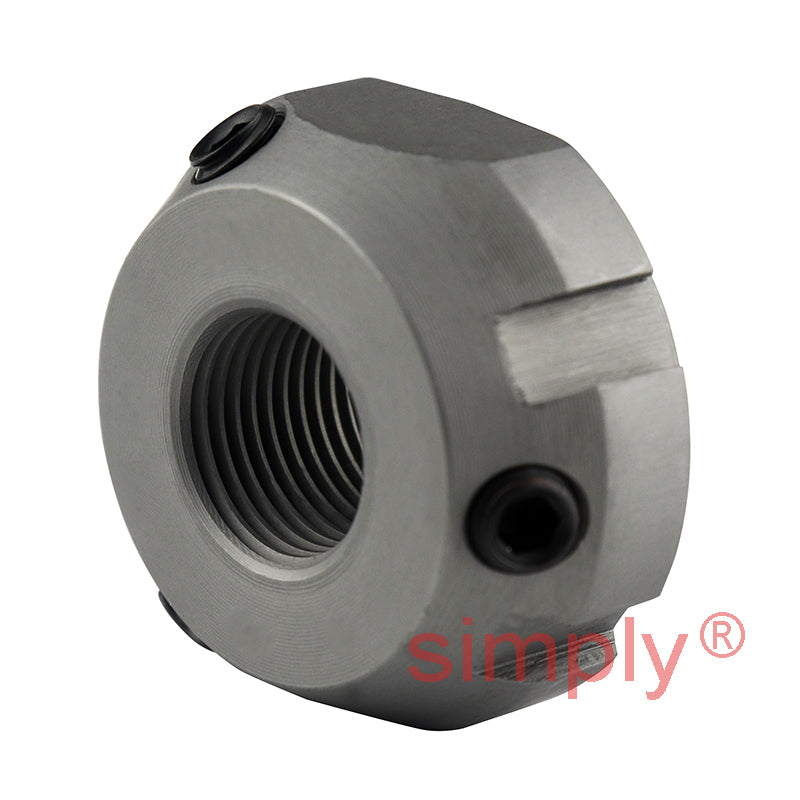

SKF KMT24 Precision Lock Nut with Locking Pins M120x2mm

Name: SKF KMT24 Precision Lock Nut with Locking Pins M120x2mm
Brand: SKF
SKU: KMT24-SKF
Price: 267.00 CHF
Availability: InStock

CHF 267.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 212.20

19+ CHF 200.28

29+ CHF 197.89

39+ CHF 195.51

49+ CHF 193.13

74+ CHF 190.74

99+ CHF 178.82

199+ CHF 176.44

249+ CHF 174.05

499+ CHF 171.67

999+ CHF 166.90

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M120x2

Technical

d1	142mm
d2	155mm
d3	144mm
d4	122mm
B	32mm
b	10mm
h	4mm
Axial load capacity	860 kN
Loosening torque	1080 Nm
Weight	1.6 kg
G	M120x2
Spanner	TMFN23-30
Grub screw	M10
Screw torque	35 Nm
