SKU: KMT32-SKF

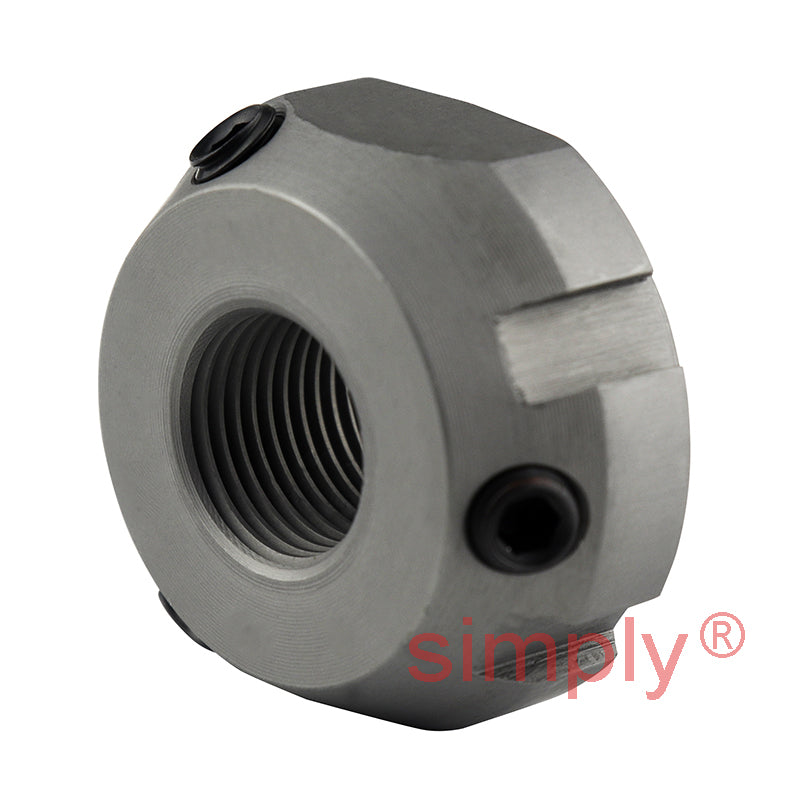

SKF KMT32 Precision Lock Nut with Locking Pins M160x3mm
SKF KMT32 Precision Lock Nut with Locking Pins M160x3mm
Regular price
CHF 629.15
ex VAT
Regular price
Sale price
CHF 629.15
ex VAT
In stock
Price Break
2+
CHF 597.69
5+
CHF 566.24
10+
CHF 534.78
15+
CHF 503.32
20+
CHF 490.74
30+
CHF 478.15
50+
CHF 415.24
Couldn't load pickup availability
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M160x3
Technical
Technical
| d1 | 182mm |
|---|---|
| d2 | 195mm |
| d3 | 184mm |
| d4 | 162mm |
| B | 32mm |
| b | 14mm |
| h | 6mm |
| Axial load capacity | 1100 kN |
| Loosening torque | 1600 Nm |
| Weight | 2.1 kg |
| G | M160x3 |
| Spanner | TMFN30-40 |
| Grub screw | M10 |
| Screw torque | 35 Nm |
