SKU: KMT36-SKF

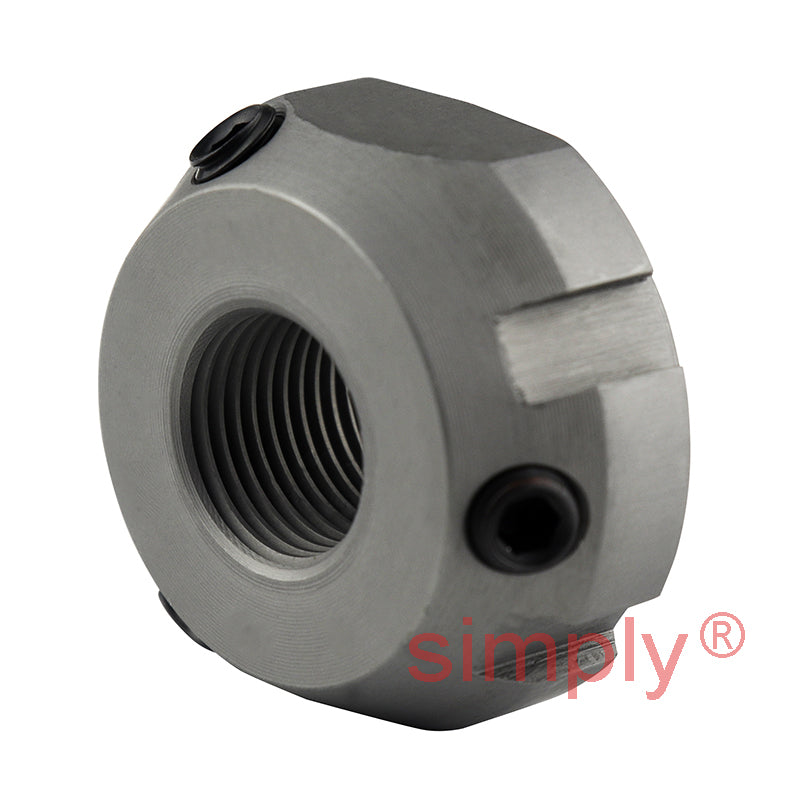

SKF KMT36 Precision Lock Nut with Locking Pins M180x3mm
SKF KMT36 Precision Lock Nut with Locking Pins M180x3mm
Regular price
CHF 677.54
ex VAT
Regular price
Sale price
CHF 677.54
ex VAT
In stock
Price Break
2+
CHF 643.66
5+
CHF 609.79
10+
CHF 575.91
15+
CHF 542.03
20+
CHF 528.48
30+
CHF 514.93
50+
CHF 447.18
Couldn't load pickup availability
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M180x3
Technical
Technical
| d1 | 202mm |
|---|---|
| d2 | 215mm |
| d3 | 204mm |
| d4 | 182mm |
| B | 32mm |
| b | 16mm |
| h | 7mm |
| Axial load capacity | 1220 kN |
| Loosening torque | 1900 Nm |
| Weight | 2.3 kg |
| G | M180x3 |
| Spanner | TMFN30-40 |
| Grub screw | M10 |
| Screw torque | 35 Nm |
