SKU: KMT4-MB

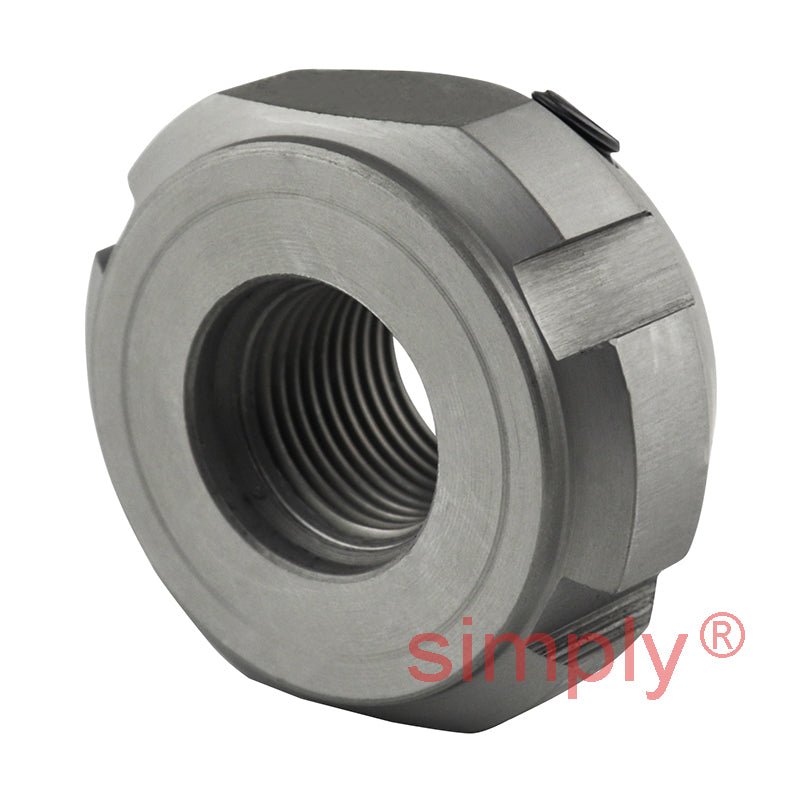

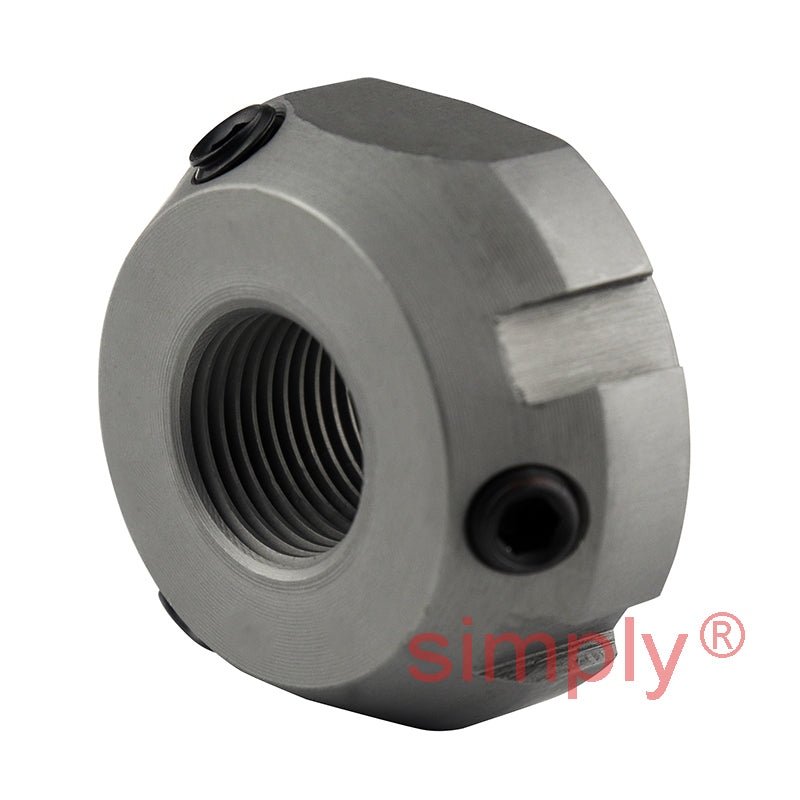

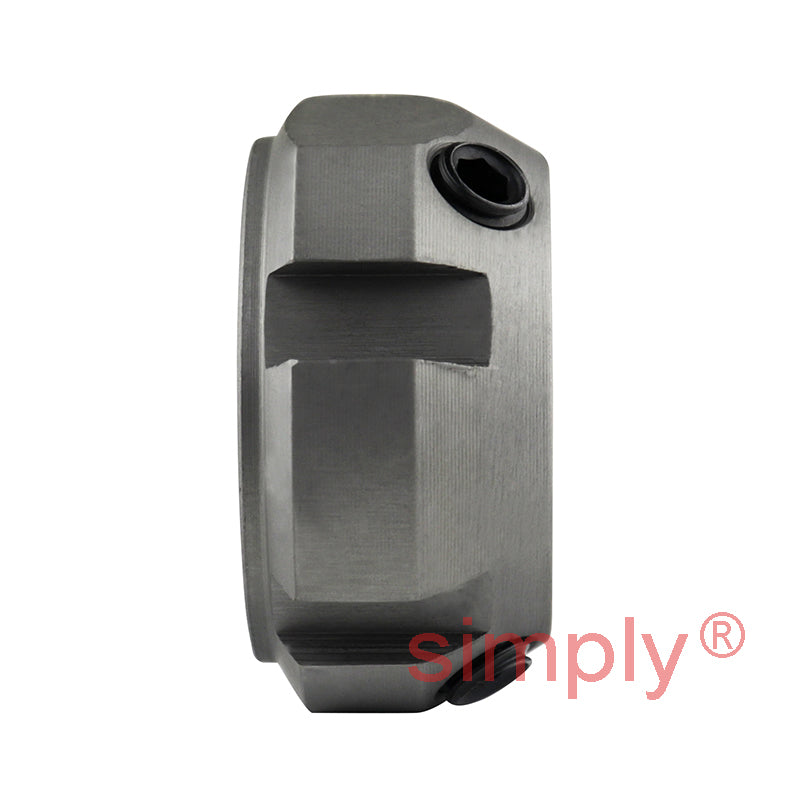

KMT4 Locknut with ISO Metric Threads 20x40x18mm
KMT4 Locknut with ISO Metric Threads 20x40x18mm
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
10+
CHF 31.70
19+
CHF 29.92
29+
CHF 29.56
39+
CHF 29.21
49+
CHF 28.85
74+
CHF 28.49
99+
CHF 26.71
199+
CHF 26.36
249+
CHF 26.00
499+
CHF 25.65
999+
CHF 24.93
Share this product
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M20x1
Technical
Technical
| G | M20x1 |
|---|---|
| d1 | 32mm |
| d2 | 40mm |
| d3 | 35mm |
| d4 | 21mm |
| B | 18mm |
| b | 5mm |
| h | 2mm |
| M | 36mm |
| Axial load capacity | 90 kN |
| Loosening torque | 35 N m |
| Mass | 0.11 kg |
| Spanner | HN5 |
| Grub screw | M6 |
| Screw torque | 8 N m |
