SKU: KMT40-SKF

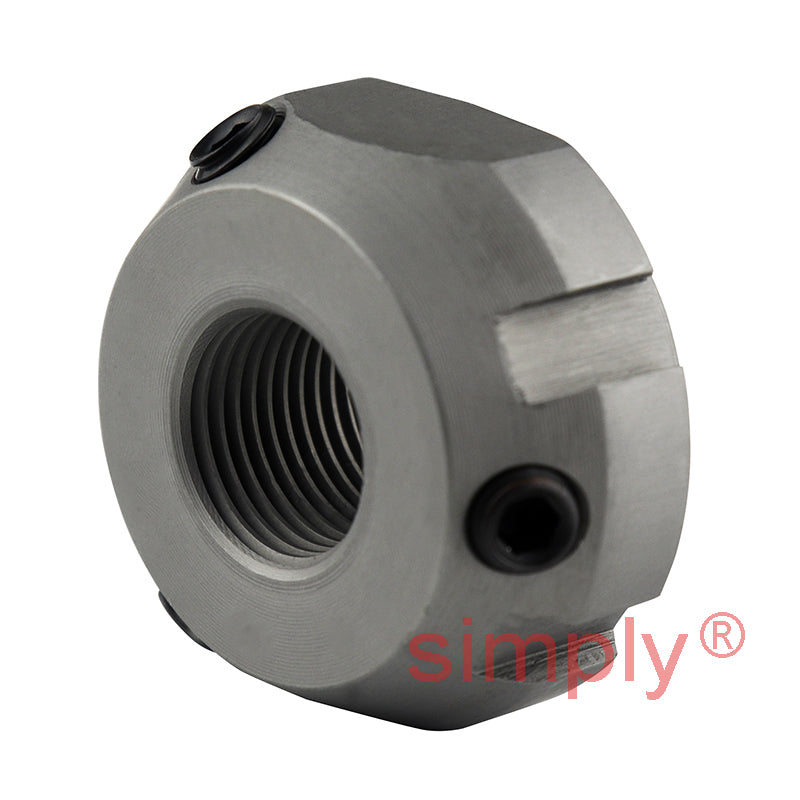

SKF KMT40 Precision Lock Nut with Locking Pins M200x3mm
SKF KMT40 Precision Lock Nut with Locking Pins M200x3mm
Regular price
CHF 846.54
ex VAT
Regular price
Sale price
CHF 846.54
ex VAT
In stock
Price Break
2+
CHF 804.21
5+
CHF 761.89
10+
CHF 719.56
15+
CHF 677.23
20+
CHF 660.30
30+
CHF 643.37
50+
CHF 558.72
Couldn't load pickup availability
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M200x3
Technical
Technical
| d1 | 222mm |
|---|---|
| d2 | 235mm |
| d3 | 224mm |
| d4 | 202mm |
| B | 32mm |
| b | 18mm |
| h | 8mm |
| Axial load capacity | 1340 kN |
| Loosening torque | 2300 Nm |
| Weight | 2.5 kg |
| G | M200x3 |
| Spanner | TMFN30-40 |
| Grub screw | M10 |
| Screw torque | 35 Nm |
