SKU: KMT6-MB

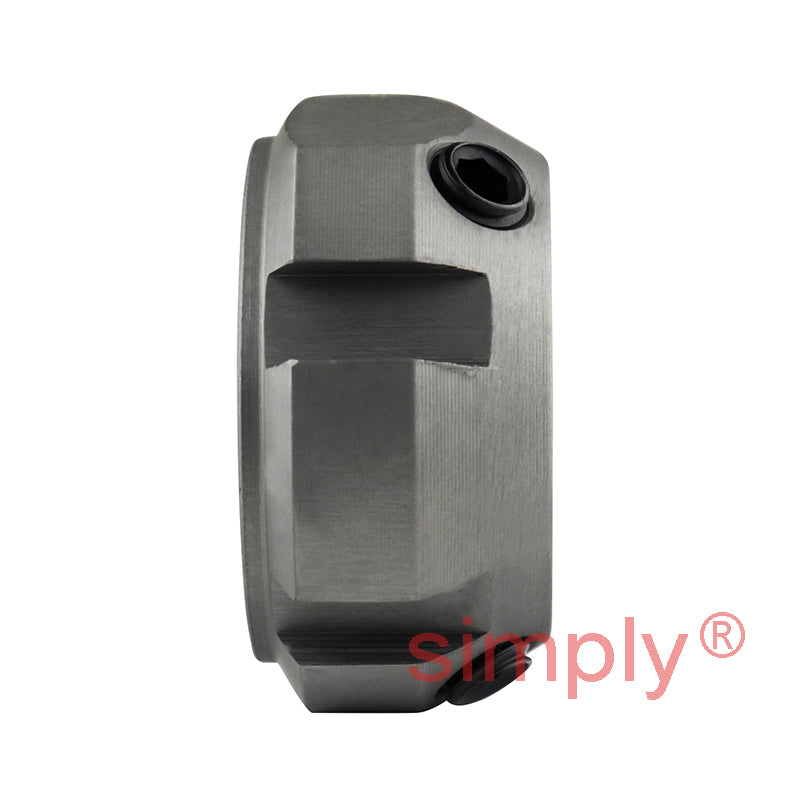

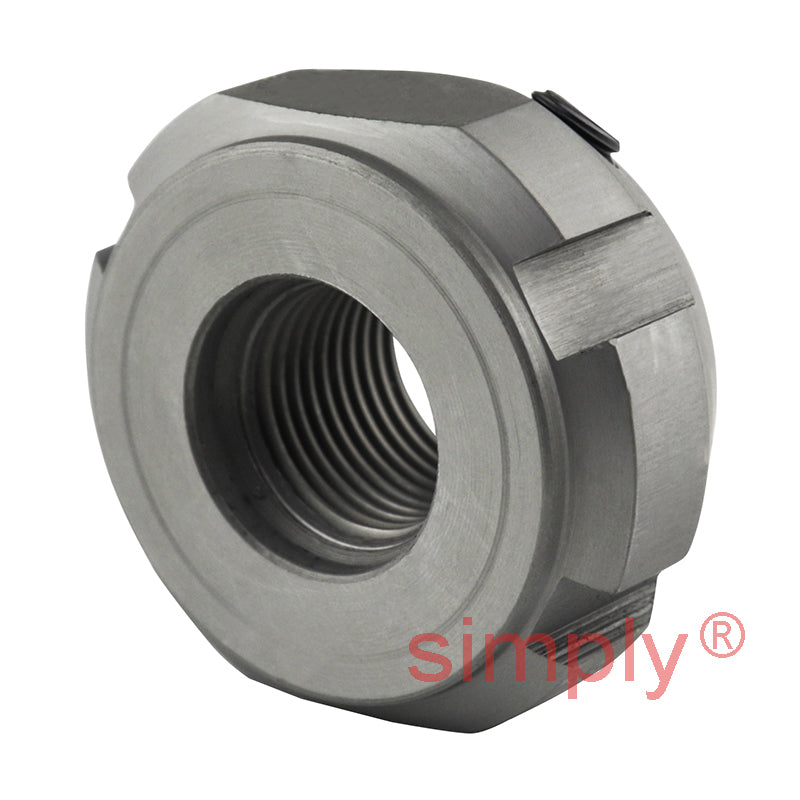

KMT6 Locknut with ISO Metric Threads 30x49x20mm
KMT6 Locknut with ISO Metric Threads 30x49x20mm
Regular price
CHF 39.20
ex VAT
Regular price
Sale price
CHF 39.20
ex VAT
In stock
Price Break
10+
CHF 34.89
19+
CHF 32.93
29+
CHF 32.54
39+
CHF 32.14
49+
CHF 31.75
74+
CHF 31.36
99+
CHF 29.40
199+
CHF 29.01
249+
CHF 28.62
499+
CHF 28.22
999+
CHF 27.44
Couldn't load pickup availability
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M30x1.5
Technical
Technical
| G | M30x1.5 |
|---|---|
| d1 | 41mm |
| d2 | 49mm |
| d3 | 44mm |
| d4 | 32mm |
| B | 20mm |
| b | 5mm |
| h | 2mm |
| M | 46mm |
| Axial load capacity | 160 kN |
| Loosening torque | 55 N m |
| Mass | 0.16 kg |
| Spanner | HN6 |
| Grub screw | M6 |
| Screw torque | 8 N m |
