SKU: KMT7-MB

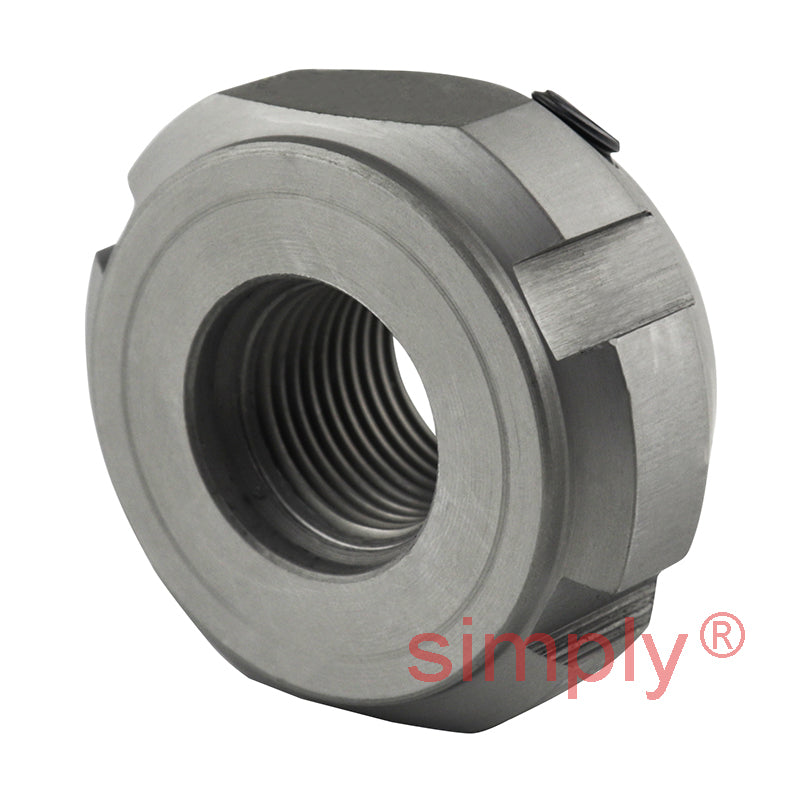

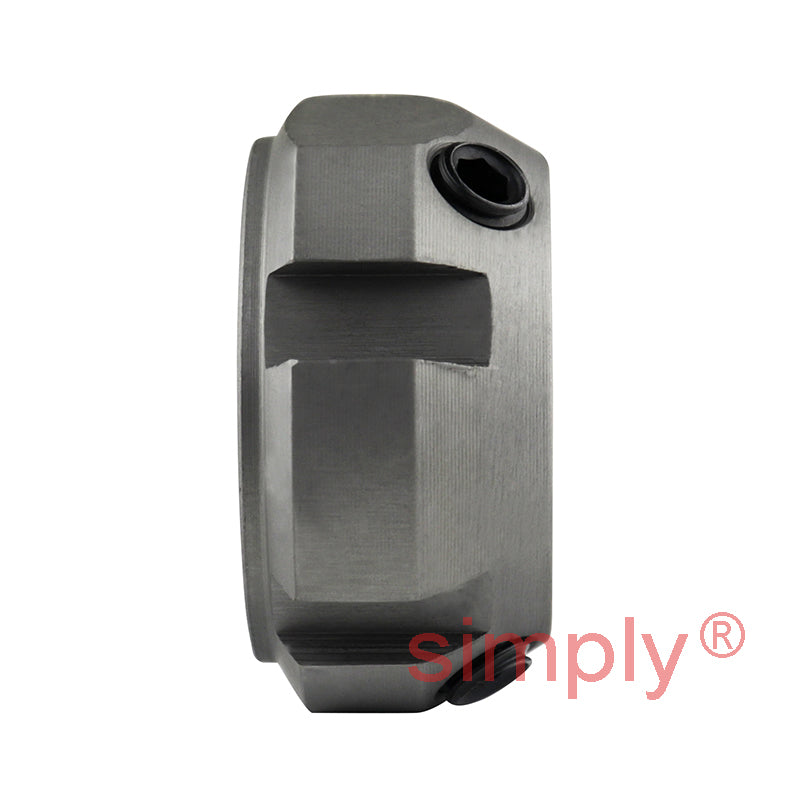

KMT7 Locknut with ISO Metric Threads 35x54x22mm
KMT7 Locknut with ISO Metric Threads 35x54x22mm
Regular price
CHF 55.00
ex VAT
Regular price
Sale price
CHF 55.00
ex VAT
In stock
Price Break
10+
CHF 43.32
19+
CHF 40.89
29+
CHF 40.40
39+
CHF 39.92
49+
CHF 39.43
74+
CHF 38.94
99+
CHF 36.51
199+
CHF 36.02
249+
CHF 35.53
499+
CHF 35.05
999+
CHF 34.07
Share this product
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M35x1.5
Technical
Technical
| G | M35x1.5 |
|---|---|
| d1 | 46mm |
| d2 | 54mm |
| d3 | 49mm |
| d4 | 38mm |
| B | 22mm |
| b | 5mm |
| h | 2mm |
| M | 50mm |
| Axial load capacity | 190 kN |
| Loosening torque | 65 N m |
| Mass | 0.19 kg |
| Spanner | HN7 |
| Grub screw | M6 |
| Screw torque | 8 N m |
