SKU: KMT7-SKF

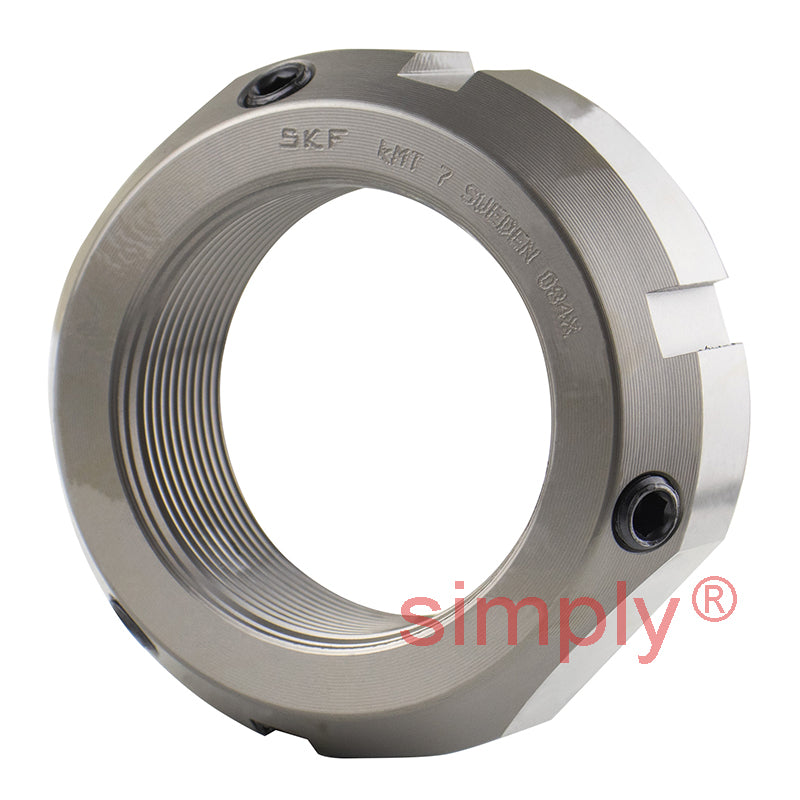

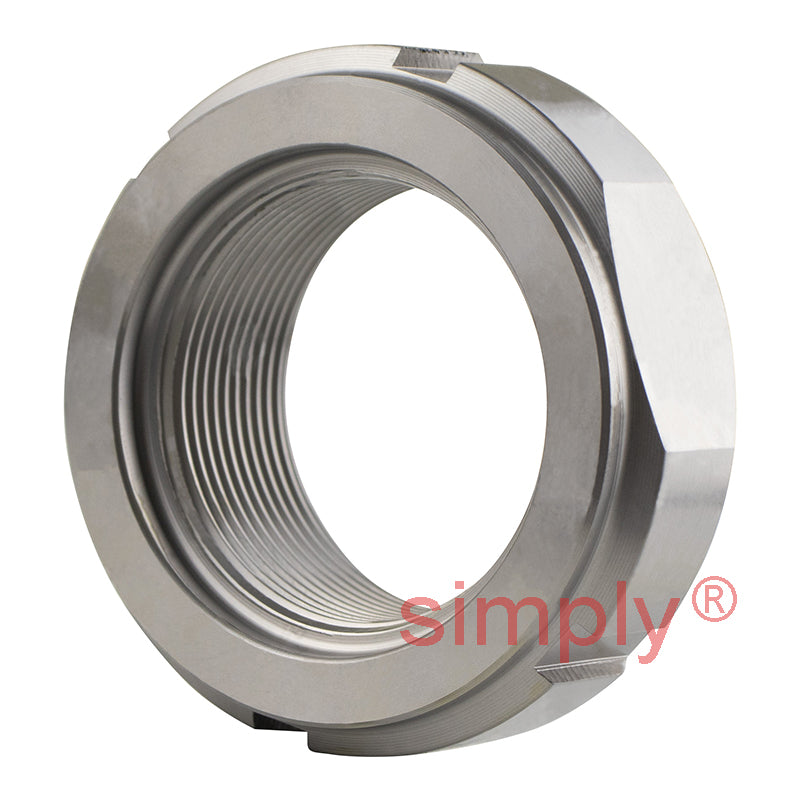

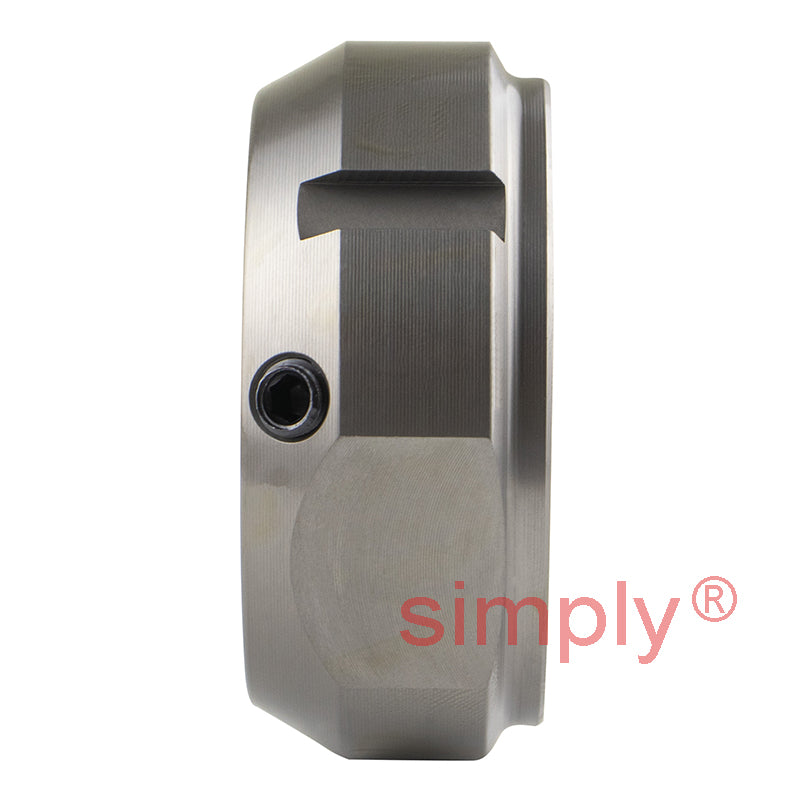

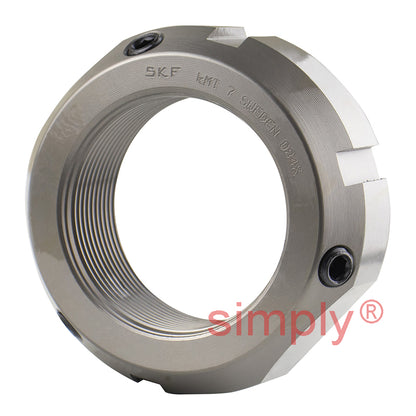

SKF KMT7 Precision Lock Nut with Locking Pins M35x1.5mm
SKF KMT7 Precision Lock Nut with Locking Pins M35x1.5mm
Regular price
CHF 75.01
ex VAT
Regular price
Sale price
CHF 75.01
ex VAT
In stock
Price Break
10+
CHF 66.76
19+
CHF 63.01
29+
CHF 62.26
39+
CHF 61.51
49+
CHF 60.76
74+
CHF 60.01
99+
CHF 56.26
199+
CHF 55.51
249+
CHF 54.76
499+
CHF 54.01
999+
CHF 52.51
Couldn't load pickup availability
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| d1 | 46mm |
|---|---|
| d2 | 54mm |
| d3 | 49mm |
| d4 | 38mm |
| B | 22mm |
| b | 5mm |
| h | 2mm |
| M | 50mm |
| Axial load capacity | 190 kN |
| Loosening torque | 65 Nm |
| Weight | 0.19 kg |
| G | M35x1.5 |
| Spanner | HN7 |
| Grub screw | M6 |
| Screw torque | 8 Nm |
