SKU: KMT8-MB

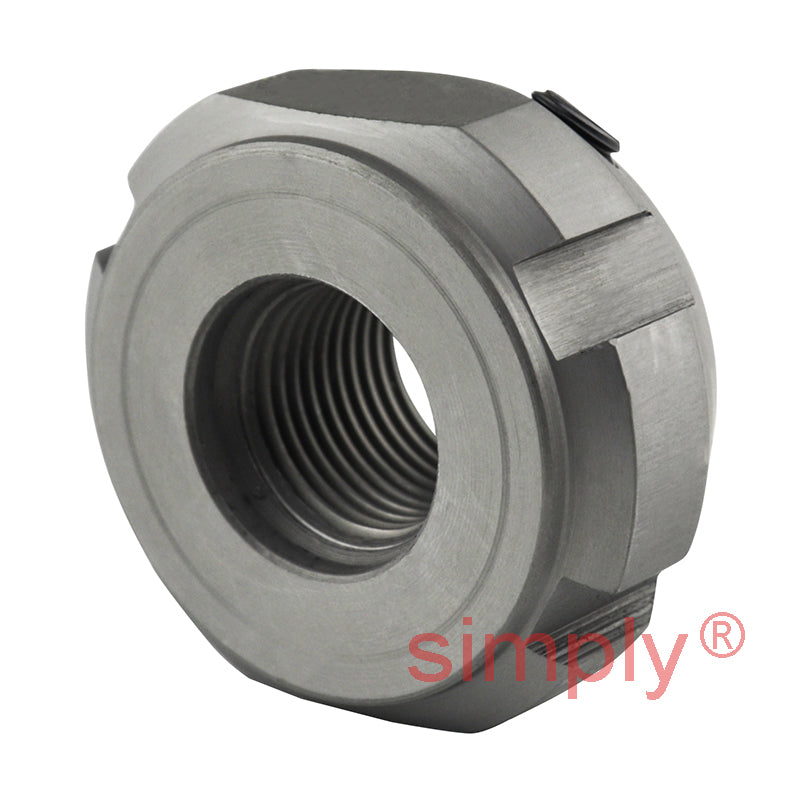

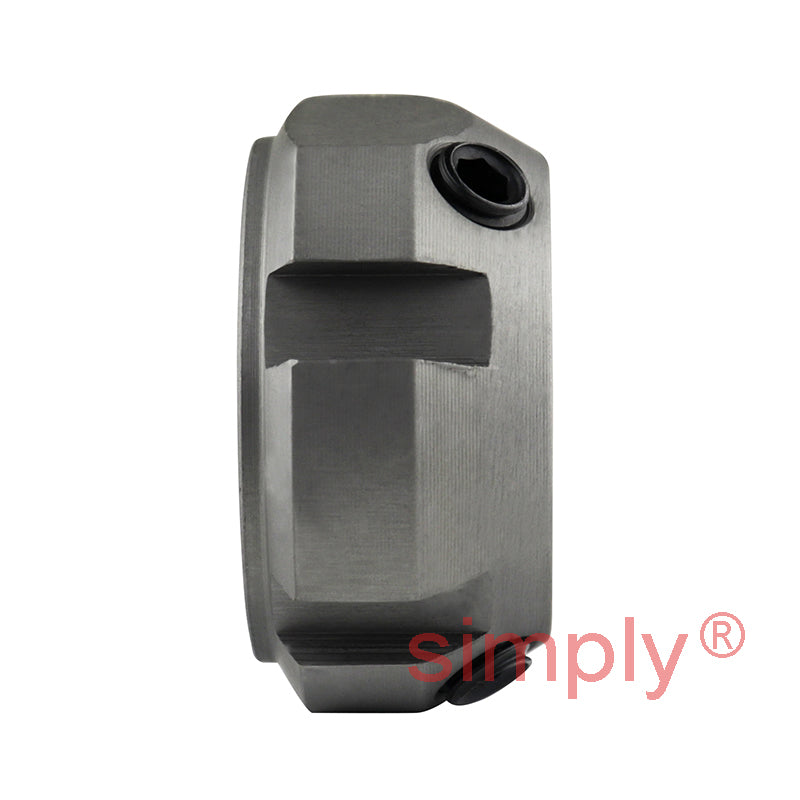

KMT8 Locknut with ISO Metric Threads 40x65x22mm
KMT8 Locknut with ISO Metric Threads 40x65x22mm
Regular price
CHF 68.00
ex VAT
Regular price
Sale price
CHF 68.00
ex VAT
In stock
Price Break
10+
CHF 53.43
19+
CHF 50.42
29+
CHF 49.82
39+
CHF 49.22
49+
CHF 48.62
74+
CHF 48.02
99+
CHF 45.02
199+
CHF 44.42
249+
CHF 43.82
499+
CHF 43.22
999+
CHF 42.02
Share this product
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- M40x1.5
Technical
Technical
| G | M40x1.5 |
|---|---|
| d1 | 54mm |
| d2 | 65mm |
| d3 | 59mm |
| d4 | 42mm |
| B | 22mm |
| b | 6mm |
| h | 2.5mm |
| M | 60mm |
| Axial load capacity | 210 kN |
| Loosening torque | 80 N m |
| Mass | 0.3 kg |
| Spanner | HN8/9 |
| Grub screw | M8 |
| Screw torque | 18 N m |
