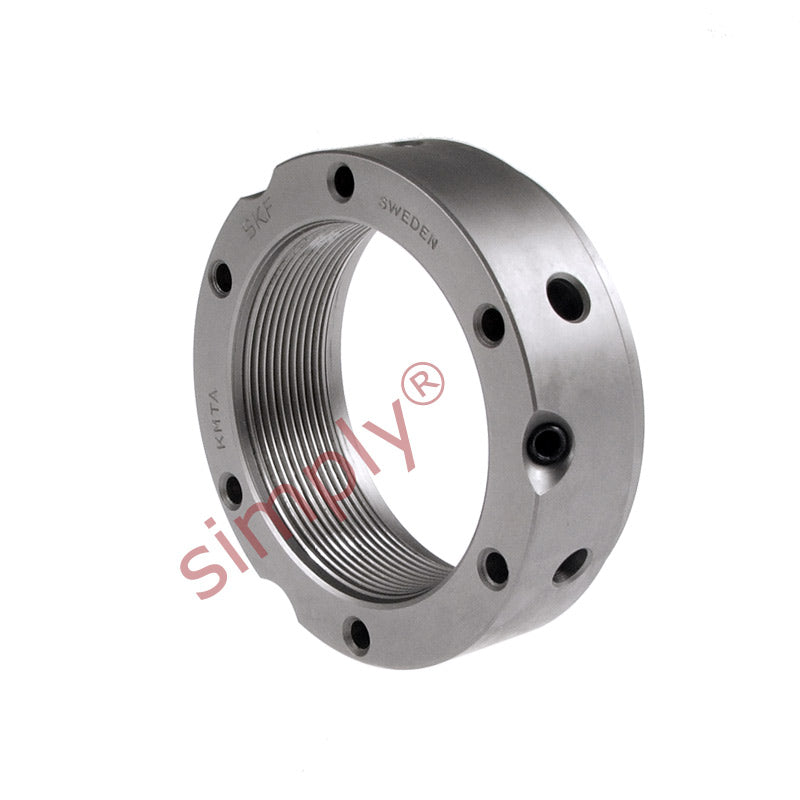

SKF KMTA10 Precision Locking Nut with Locking Pins M50x1.5mm
SKF KMTA10 Precision Locking Nut with Locking Pins M50x1.5mm
Regular price
CHF 105.00
ex VAT
Regular price
Sale price
CHF 105.00
ex VAT
In stock
Price Break
10+
CHF 83.18
19+
CHF 78.50
29+
CHF 77.57
39+
CHF 76.64
49+
CHF 75.70
74+
CHF 74.77
99+
CHF 70.09
199+
CHF 69.16
249+
CHF 68.22
499+
CHF 67.29
999+
CHF 65.42
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M50x1.5
Technical
Technical
| G | M50x1.5 |
|---|---|
| d2 | 70mm |
| d3 | 63mm |
| d4 | 52mm |
| B | 24mm |
| J1 | 61.5mm |
| J2 | 13mm |
| N1 | 4.3mm |
| N2 | 6mm |
| Axial load capacity | 300 kN |
| Loosening torque | 115 Nm |
| Weight | 0.34 kg |
| Spanner | B68-75 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA10 |
