SKU: KMTA11-SKF

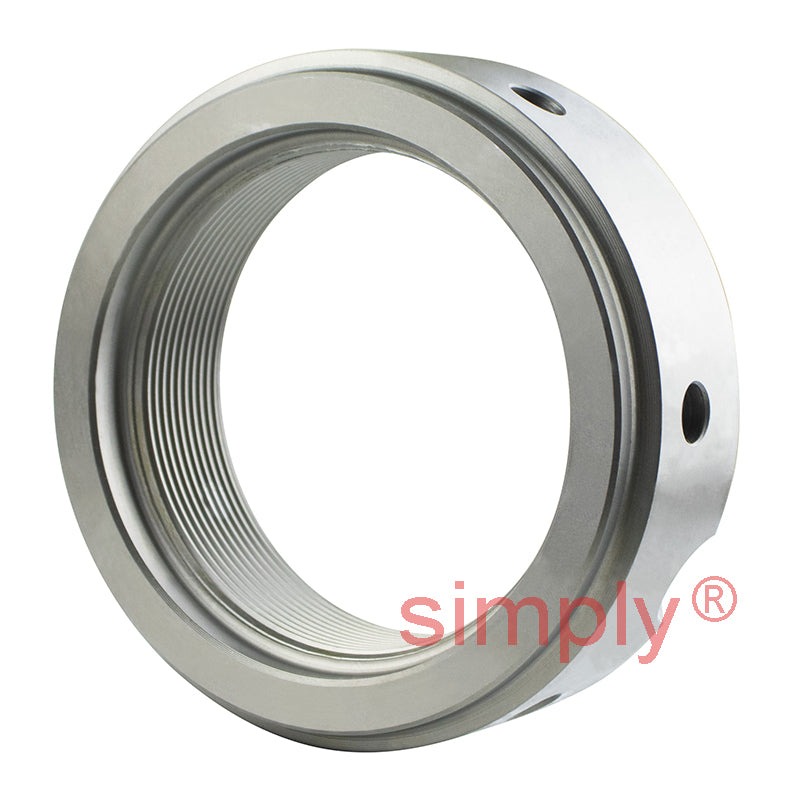

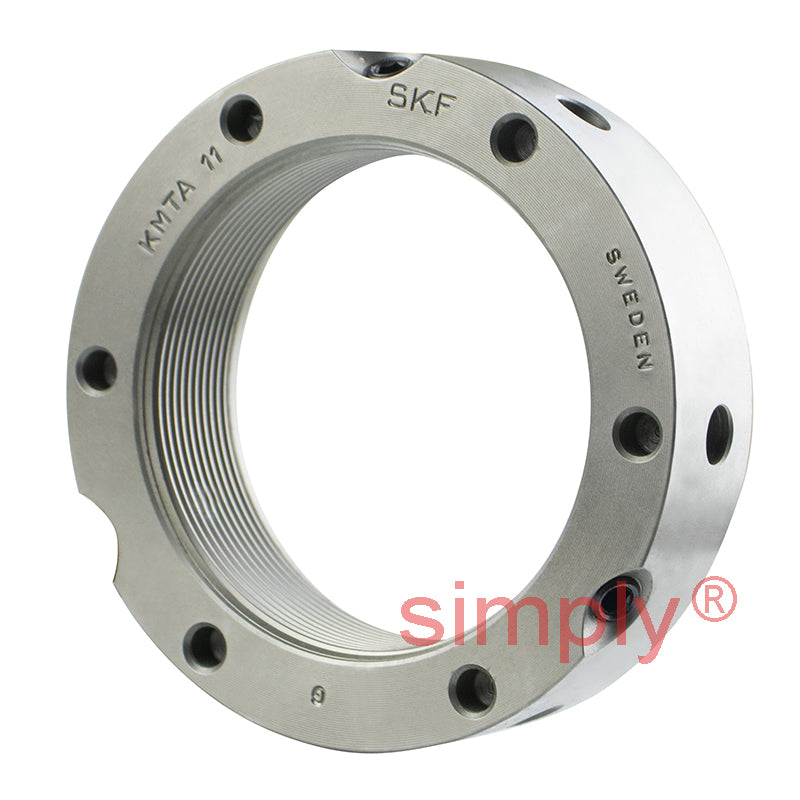

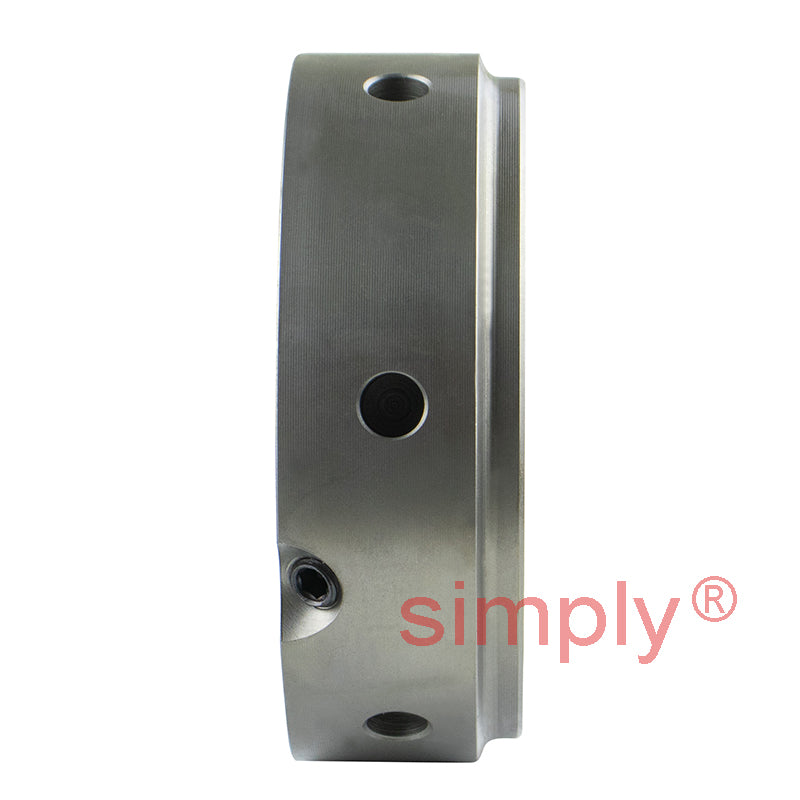

SKF KMTA11 Precision Locking Nut with Locking Pins M55x1.5mm
SKF KMTA11 Precision Locking Nut with Locking Pins M55x1.5mm
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
10+
CHF 24.58
19+
CHF 23.20
29+
CHF 22.92
39+
CHF 22.65
49+
CHF 22.37
74+
CHF 22.10
99+
CHF 20.72
199+
CHF 20.44
249+
CHF 20.16
499+
CHF 19.89
999+
CHF 19.33
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M55x1.5
Technical
Technical
| G | M55x1.5 |
|---|---|
| d2 | 75mm |
| d3 | 70mm |
| d4 | 58mm |
| B | 24mm |
| J1 | 66.5mm |
| J2 | 13mm |
| N1 | 4.3mm |
| N2 | 6mm |
| Axial load capacity | 340 kN |
| Loosening torque | 135 Nm |
| Weight | 0.37 kg |
| Spanner | B68-75 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA11 |
