SKU: KMTA14-SKF

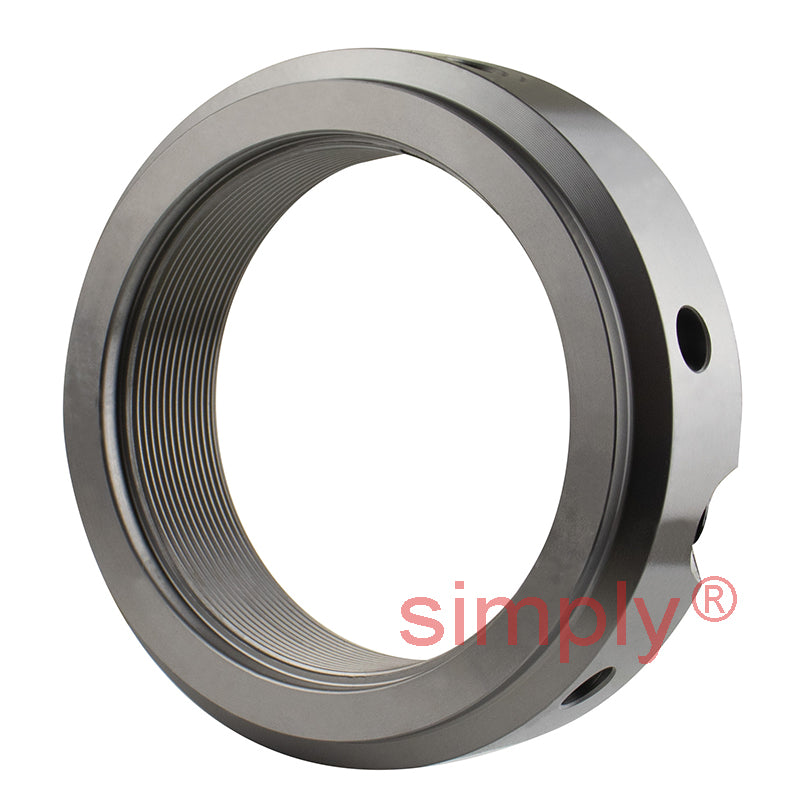

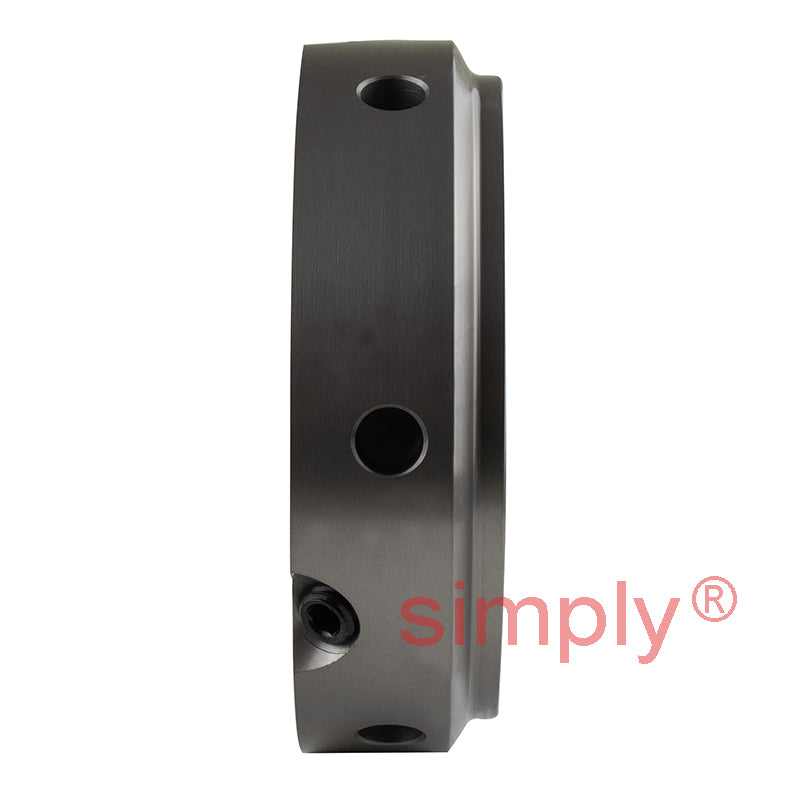

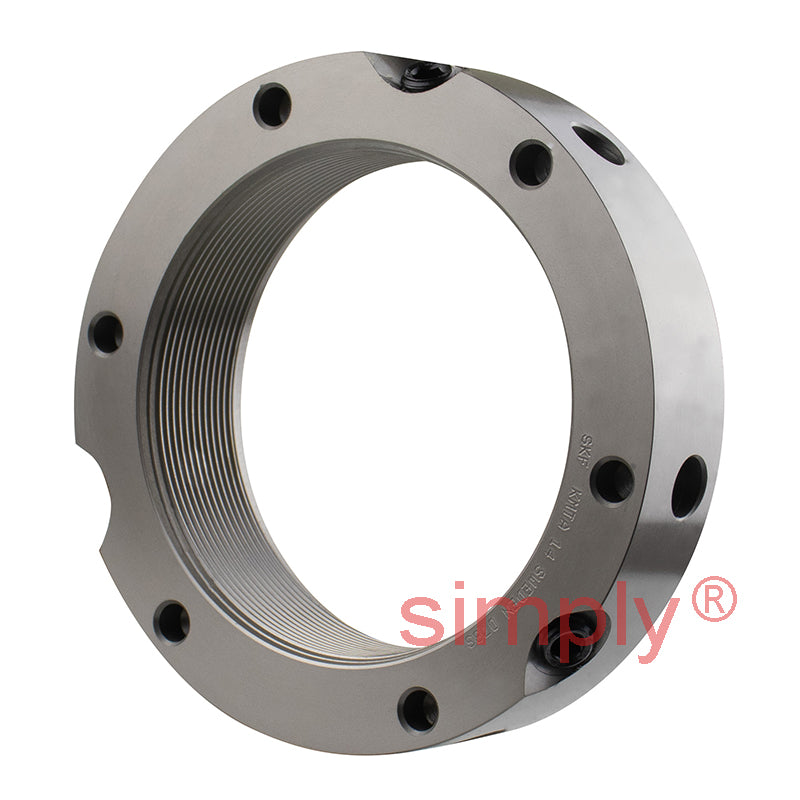

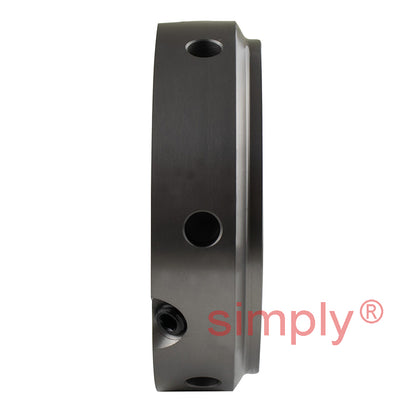

SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
Regular price
CHF 173.80
ex VAT
Regular price
Sale price
CHF 173.80
ex VAT
In stock
Price Break
10+
CHF 154.68
19+
CHF 145.99
29+
CHF 144.25
39+
CHF 142.52
49+
CHF 140.78
74+
CHF 139.04
99+
CHF 130.35
199+
CHF 128.61
249+
CHF 126.87
499+
CHF 125.14
999+
CHF 121.66
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M70x1.5
Technical
Technical
| G | M70x1.5 |
|---|---|
| d2 | 95mm |
| d3 | 86mm |
| d4 | 72mm |
| B | 26mm |
| J1 | 85mm |
| J2 | 14mm |
| N1 | 5.3mm |
| N2 | 8mm |
| Axial load capacity | 490 kN |
| Loosening torque | 285 Nm |
| Weight | 0.62 kg |
| Spanner | B95-100 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA14 |
