SKU: KMTA15-SKF

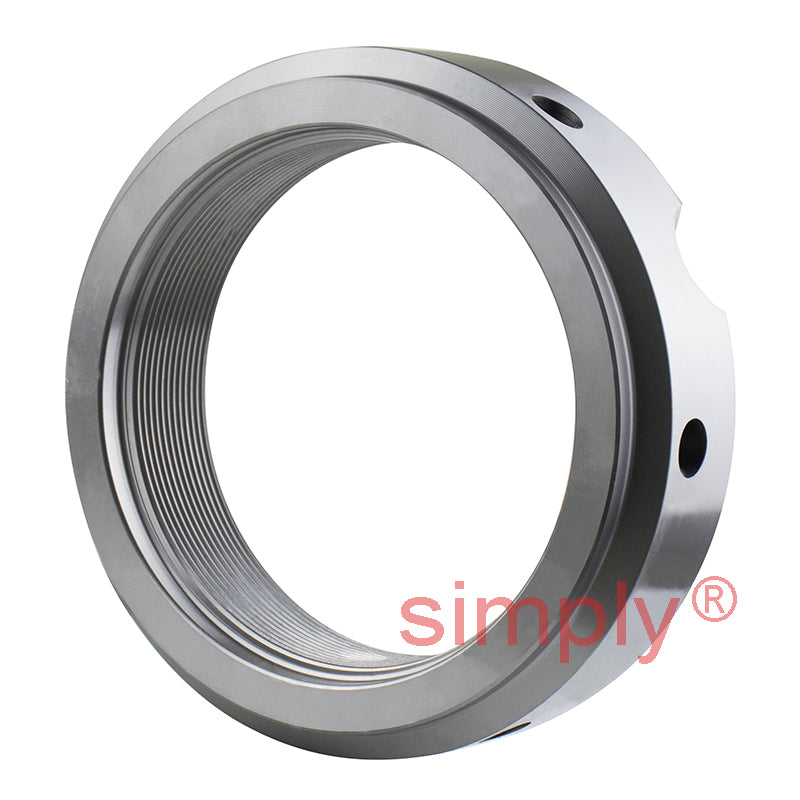

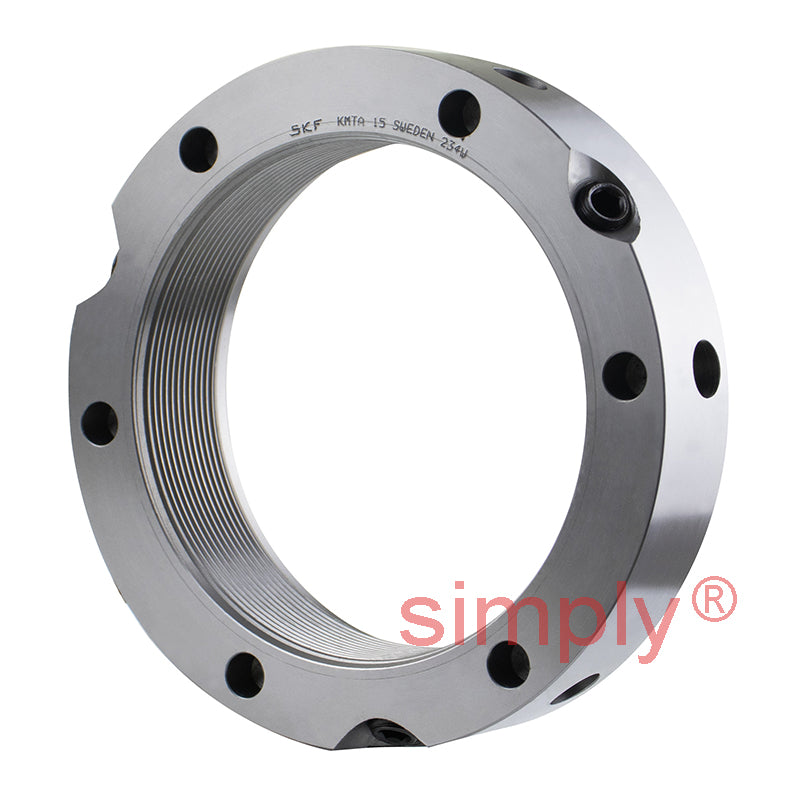

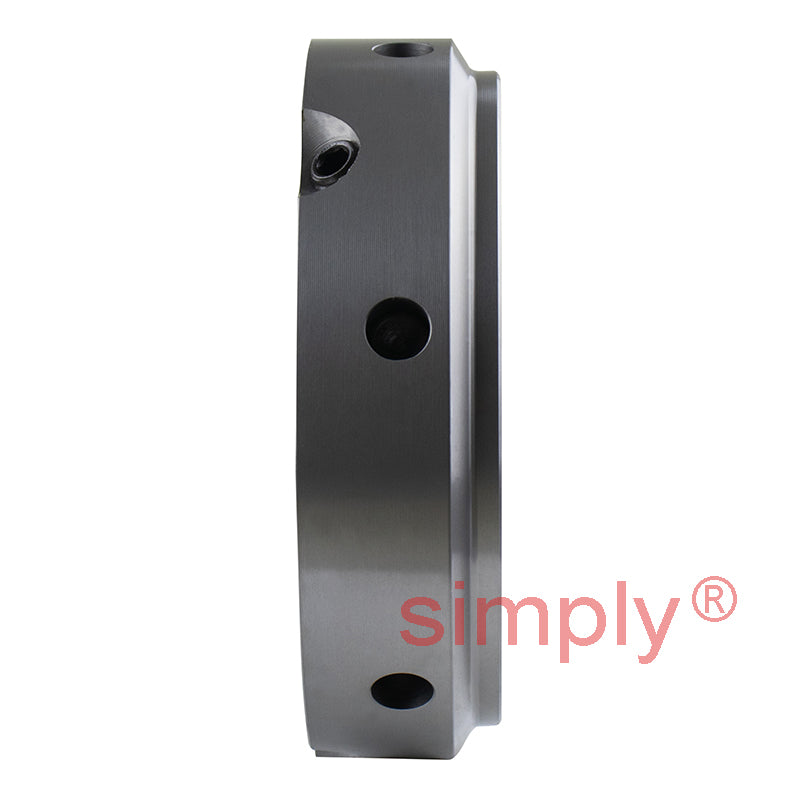

SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
Regular price
CHF 176.28
ex VAT
Regular price
Sale price
CHF 176.28
ex VAT
In stock
Price Break
10+
CHF 156.89
19+
CHF 148.08
29+
CHF 146.31
39+
CHF 144.55
49+
CHF 142.79
74+
CHF 141.02
99+
CHF 132.21
199+
CHF 130.45
249+
CHF 128.68
499+
CHF 126.92
999+
CHF 123.40
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M75x1.5
Technical
Technical
| G | M75x1.5 |
|---|---|
| d2 | 100mm |
| d3 | 91mm |
| d4 | 77mm |
| B | 26mm |
| J1 | 88mm |
| J2 | 13mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 520 kN |
| Loosening torque | 305 Nm |
| Weight | 0.66 kg |
| Spanner | B95-100 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA15 |
