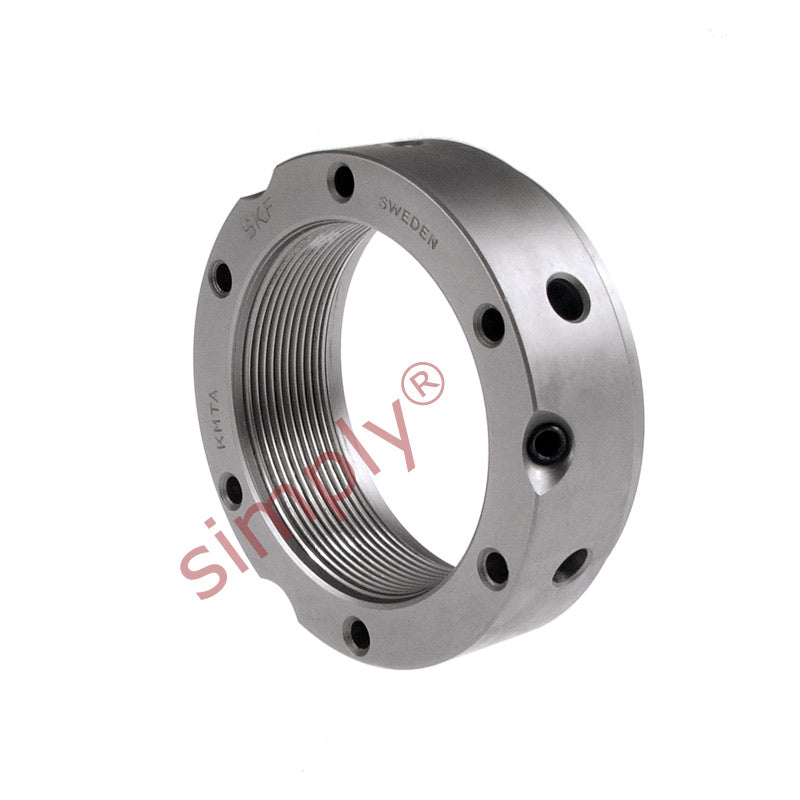

• SKF KMTA20 Precision Locking Nut with Locking Pins M100x2mm
1 1

SKU: KMTA20-SKF

SKF KMTA20 Precision Locking Nut with Locking Pins M100x2mm

SKF KMTA20 Precision Locking Nut with Locking Pins M100x2mm
CHF 250.00 ex VAT
CHF 250.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 198.98
19+ CHF 187.80
29+ CHF 185.56
39+ CHF 183.33
49+ CHF 181.09
74+ CHF 178.86
99+ CHF 167.68
199+ CHF 165.44
249+ CHF 163.21
499+ CHF 160.97
999+ CHF 156.50
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M100x2
Technical
G M100x2
d2 130mm
d3 120mm
d4 103mm
B 32mm
J1 118mm
J2 17mm
N1 6.4mm
N2 8mm
Axial load capacity 740 kN
Loosening torque 840 Nm
Weight 1.3 kg
Spanner B120-130
Grub Screw M10
Screw torque 35 Nm
Name KMTA20
