SKU: KMTA32-SKF

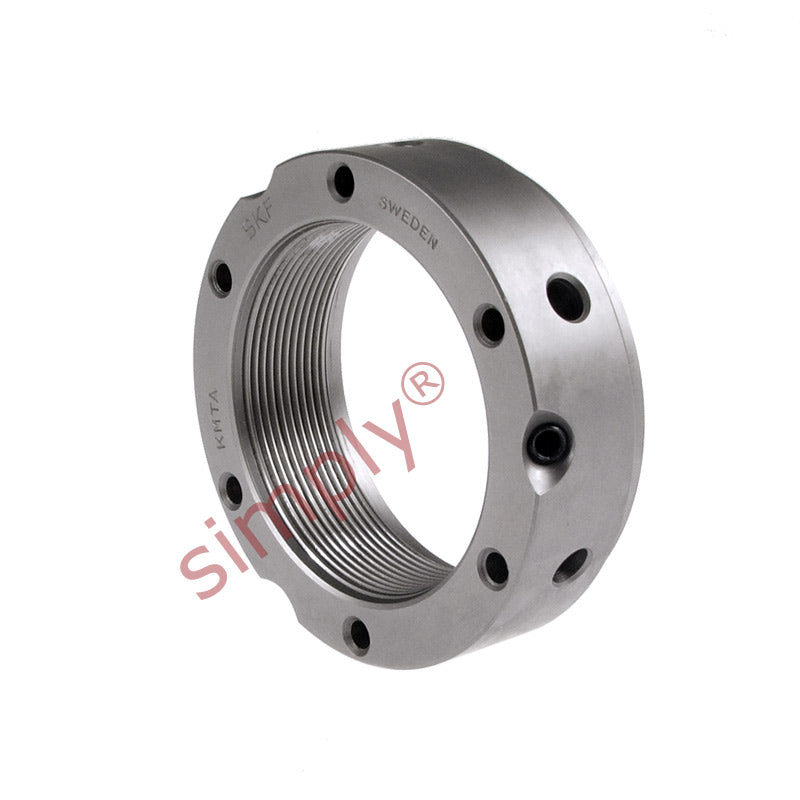

SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm
SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm
Regular price
CHF 596.05
ex VAT
Regular price
Sale price
CHF 596.05
ex VAT
In stock
Price Break
10+
CHF 530.48
19+
CHF 500.68
29+
CHF 494.72
39+
CHF 488.76
49+
CHF 482.80
74+
CHF 476.84
99+
CHF 447.04
199+
CHF 441.08
249+
CHF 435.12
499+
CHF 429.16
999+
CHF 417.24
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M160x3
Technical
Technical
| G | M160x3 |
|---|---|
| d2 | 205mm |
| d3 | 190mm |
| d4 | 162mm |
| B | 32mm |
| J1 | 185mm |
| J2 | 17mm |
| N1 | 8.4mm |
| N2 | 10mm |
| Axial load capacity | 1100 kN |
| Loosening torque | 1600 Nm |
| Weight | 3.15 kg |
| Spanner | B205-220 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA32 |
