SKU: KMTA5-SKF

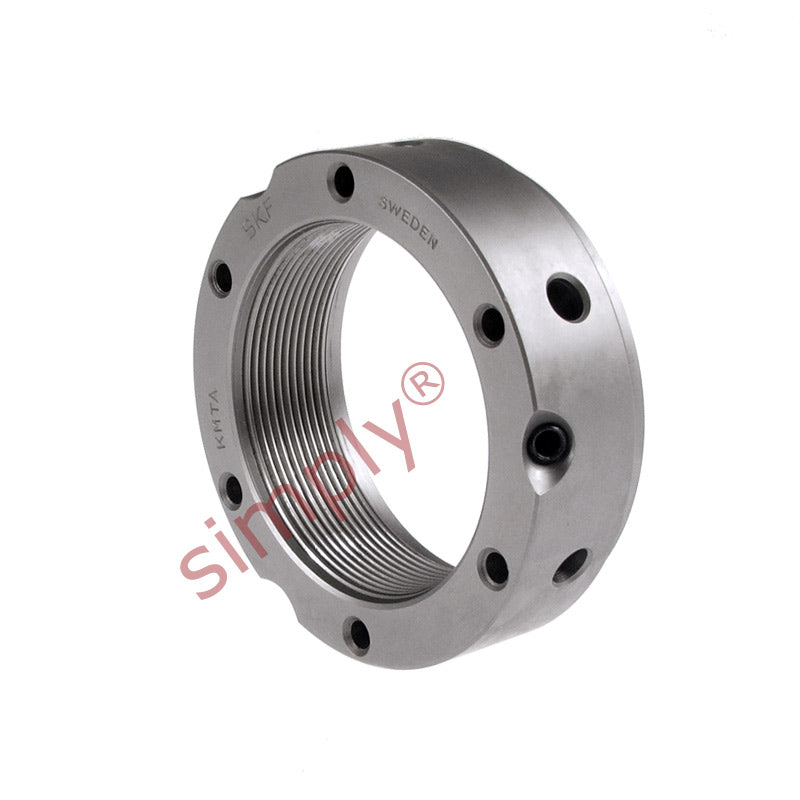

SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm

Name: SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm
Brand: SKF
SKU: KMTA5-SKF
Price: 74.00 CHF
Availability: InStock

CHF 74.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 58.51

19+ CHF 55.22

29+ CHF 54.56

39+ CHF 53.90

49+ CHF 53.25

74+ CHF 52.59

99+ CHF 49.30

199+ CHF 48.64

249+ CHF 47.99

499+ CHF 47.33

999+ CHF 46.02

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M25x1.5

Technical

G	M25x1.5
d2	42mm
d3	35mm
d4	26mm
B	20mm
J1	32.5mm
J2	11mm
N1	4.3mm
N2	4mm
Axial load capacity	130 kN
Loosening torque	45 Nm
Weight	0.13 kg
Spanner	B40-42
Grub Screw	M6
Screw torque	8 Nm
Name	KMTA5
