SKU: KMTA6-SKF

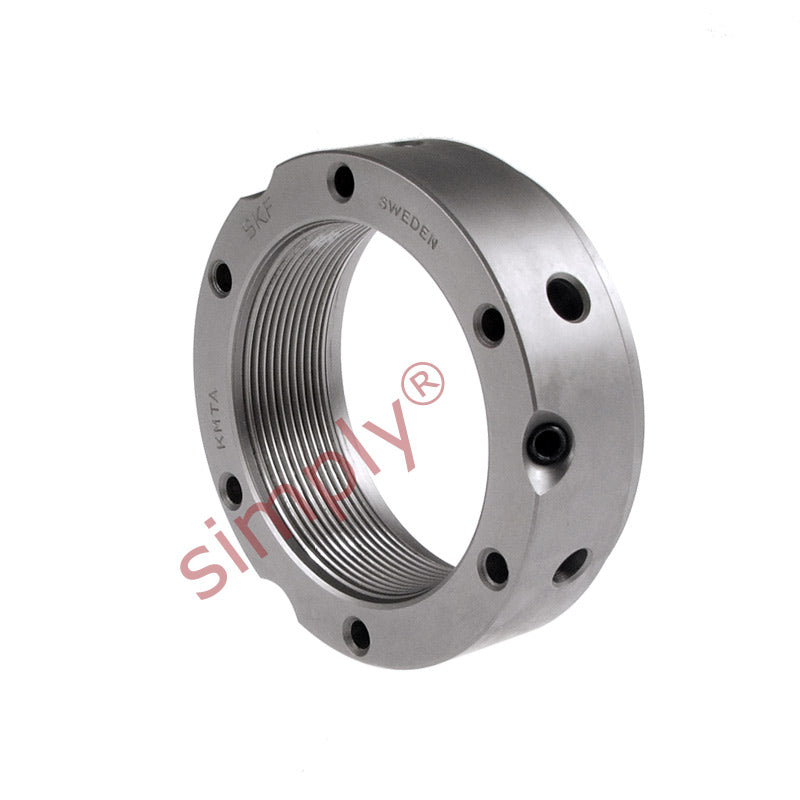

SKF KMTA6 Precision Locking Nut with Locking Pins M30x1.5mm
SKF KMTA6 Precision Locking Nut with Locking Pins M30x1.5mm
Regular price
CHF 111.92
ex VAT
Regular price
Sale price
CHF 111.92
ex VAT
In stock
Price Break
5+
CHF 110.80
10+
CHF 106.32
20+
CHF 104.09
50+
CHF 100.73
100+
CHF 98.49
500+
CHF 92.89
1000+
CHF 78.34
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M30x1.5
Technical
Technical
| G | M30x1.5 |
|---|---|
| d2 | 48mm |
| d3 | 40mm |
| d4 | 32mm |
| B | 20mm |
| J1 | 40.5mm |
| J2 | 11mm |
| N1 | 4.3mm |
| N2 | 5mm |
| Axial load capacity | 160 kN |
| Loosening torque | 55 Nm |
| Weight | 0.16 kg |
| Spanner | B45-50 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA6 |
