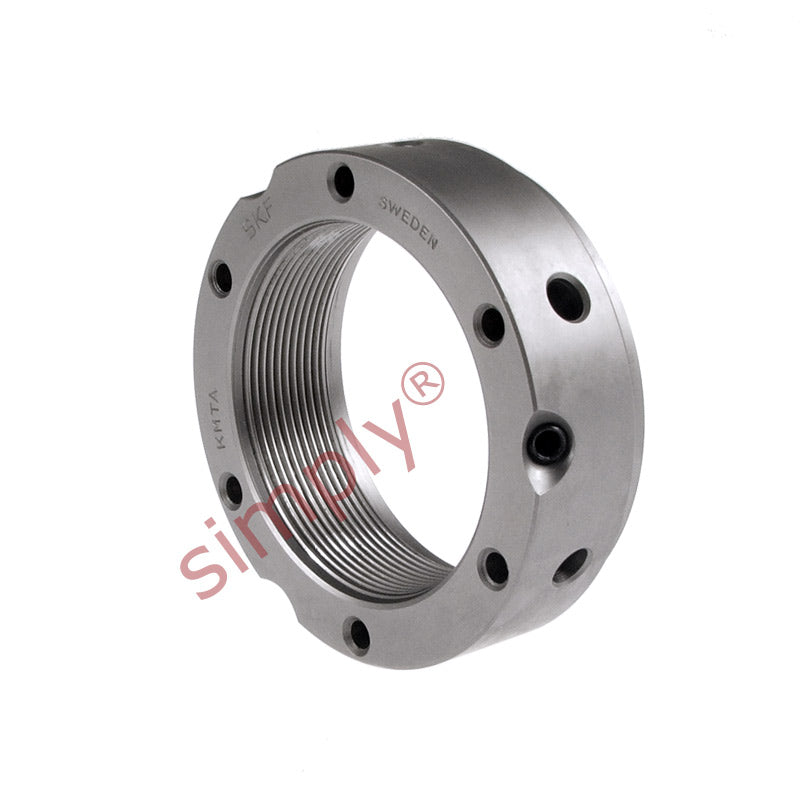

SKF KMTA8 Precision Locking Nut with Locking Pins M40x1.5mm
SKF KMTA8 Precision Locking Nut with Locking Pins M40x1.5mm
Regular price
CHF 90.00
ex VAT
Regular price
Sale price
CHF 90.00
ex VAT
In stock
Price Break
10+
CHF 71.62
19+
CHF 67.60
29+
CHF 66.79
39+
CHF 65.99
49+
CHF 65.18
74+
CHF 64.38
99+
CHF 60.35
199+
CHF 59.55
249+
CHF 58.74
499+
CHF 57.94
999+
CHF 56.33
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M40x1.5
Technical
Technical
| G | M40x1.5 |
|---|---|
| d2 | 58mm |
| d3 | 52mm |
| d4 | 42mm |
| B | 22mm |
| J1 | 50.5mm |
| J2 | 12mm |
| N1 | 4.3mm |
| N2 | 5mm |
| Axial load capacity | 210 kN |
| Loosening torque | 80 Nm |
| Weight | 0.23 kg |
| Spanner | B58-62 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA8 |
