SKU: KN40-B-PP-INA

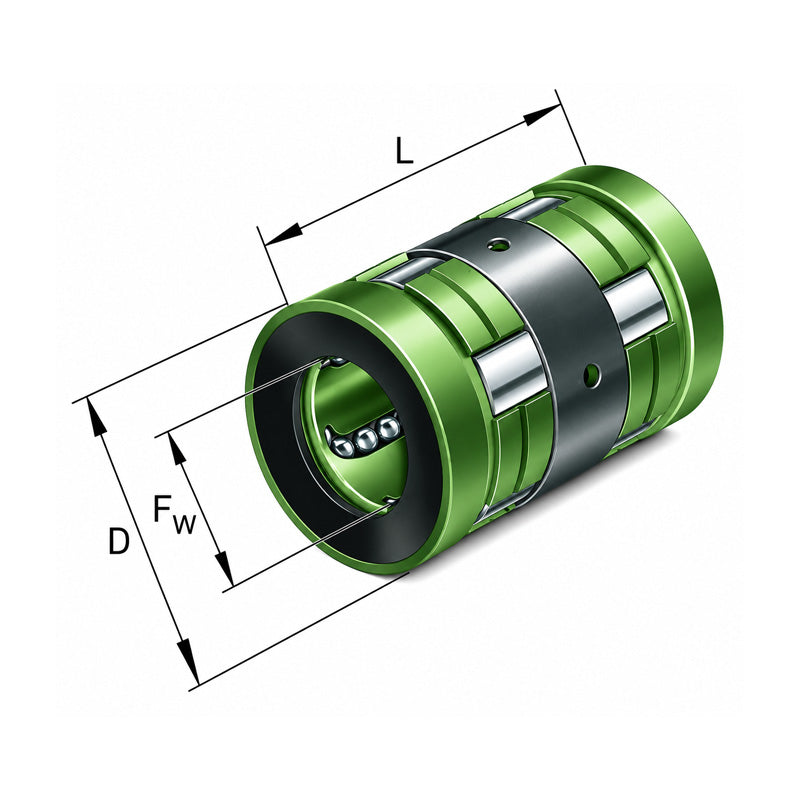

INA KN40BPP Relubricatable Open Linear Ball Bushing with Contact Seals 40x62x80mm
INA KN40BPP Relubricatable Open Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
CHF 115.00
ex VAT
Regular price
Sale price
CHF 115.00
ex VAT
In stock
Price Break
3+
CHF 91.39
5+
CHF 86.25
10+
CHF 85.22
15+
CHF 84.20
20+
CHF 83.17
30+
CHF 82.14
40+
CHF 77.01
50+
CHF 75.98
60+
CHF 74.96
75+
CHF 73.93
100+
CHF 71.88
Description
Description
|
INA KN..-B-PP Linear Ball Bearings: These light range linear ball bearings have adjustable clearance in the appropriate housing. In order to compensate misalignments arising from manufacturing tolerances, mounting errors and shaft deflection, the linear bearings of KN..-B are self-aligning up to ±30 deg. Their robust construction allows operating even under aggressive operating conditions. The bearings are maintenance-free for many applications due to the initial greasing with a high quality grease. If necessary, they can be relubricated via the radial holes arranged in the centre of the bearing. This bearing has contact seals on both sides of the bearing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Allows operating under aggressive operating conditions, maintenance-free, relubricatable. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Number of rows of ball | 6 |
| BL2 | 2.15mm |
| b1 max | 3mm |
| DN | 59.4mm |
| L2 | 60.3mm |
| N4 | 3mm |
| T4 | 2.2mm |
| Mass | 0.35 kg |
| Basic dynamic load rating C min | 6300 N |
| Basic static load rating C0 min | 4350 N |
| Basic dynamic load rating C max | 6700 N |
| Basic static load rating C0 max | 5600 N |
| Suitable retaining ring | 63X2 |
