SKU: KR16-MB

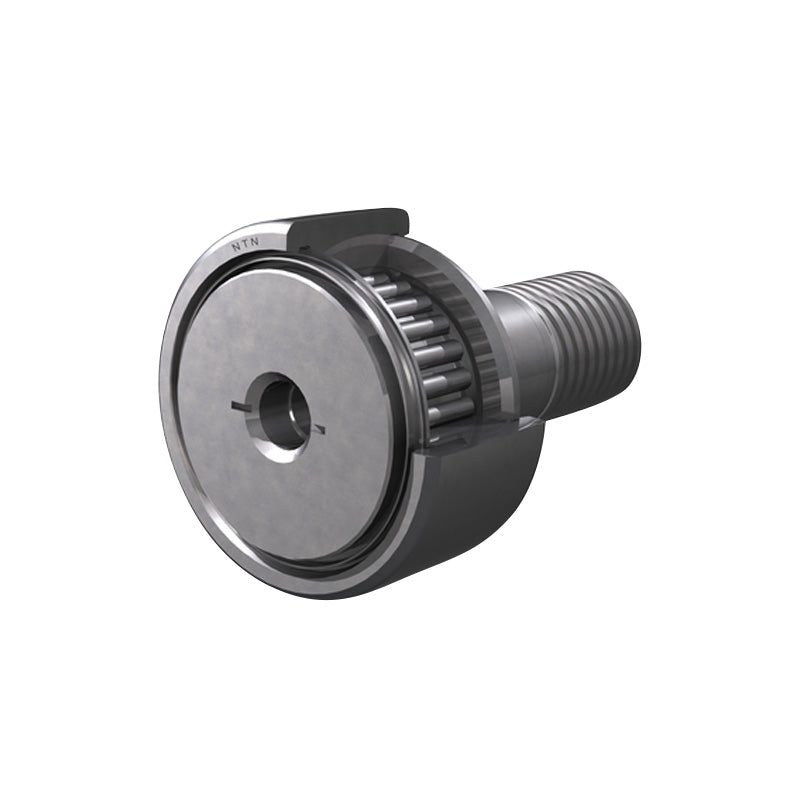

Major Brand KR16 Crowned Cam Follower 16x11x6 M6 Thread
Major Brand KR16 Crowned Cam Follower 16x11x6 M6 Thread
Regular price
CHF 37.48
ex VAT
Regular price
Sale price
CHF 37.48
ex VAT
In stock
Price Break
10+
CHF 33.36
19+
CHF 31.48
29+
CHF 31.11
39+
CHF 30.73
49+
CHF 30.36
74+
CHF 29.98
99+
CHF 28.11
199+
CHF 27.74
249+
CHF 27.36
499+
CHF 26.99
999+
CHF 26.24
Couldn't load pickup availability
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Pitch:
- M6
- Outside Diameter:
- 16mm
- Width:
- 11mm
Technical
Technical
| D | 16mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 6mm |
| B | 28mm |
| B1 | 16mm |
| C1 | 0.6mm |
| d1 | 12.5mm |
| G | M6mm |
| G1 | 8mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3140 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Radial dynamic load | 2900 N |
| Radial static load | 4150 N |
| Speed rating | 14000 rpm |
| Weight | 19 g |
