SKU: KR19PPA-MB
Major Brand KR19PPA Contact Sealed Crowned Cam Follower 19x11x8 M8 Thread
Major Brand KR19PPA Contact Sealed Crowned Cam Follower 19x11x8 M8 Thread
Regular price
CHF 44.00
ex VAT
Regular price
Sale price
CHF 44.00
ex VAT
In stock
Price Break
10+
CHF 34.43
19+
CHF 32.50
29+
CHF 32.11
39+
CHF 31.72
49+
CHF 31.34
74+
CHF 30.95
99+
CHF 29.02
199+
CHF 28.63
249+
CHF 28.24
499+
CHF 27.85
999+
CHF 27.08
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 19mm
- Width:
- 11mm
- Pitch:
- M8

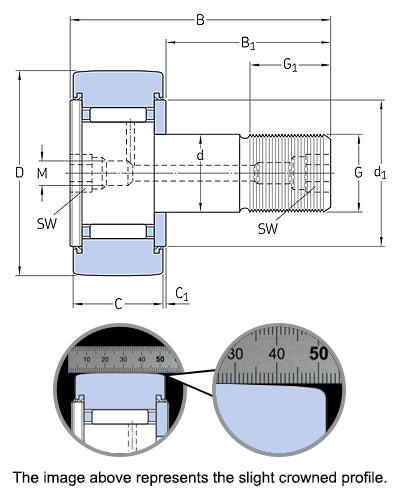

Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8mm |
| G1 | 10mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
