SKU: KR19PPSK-MB

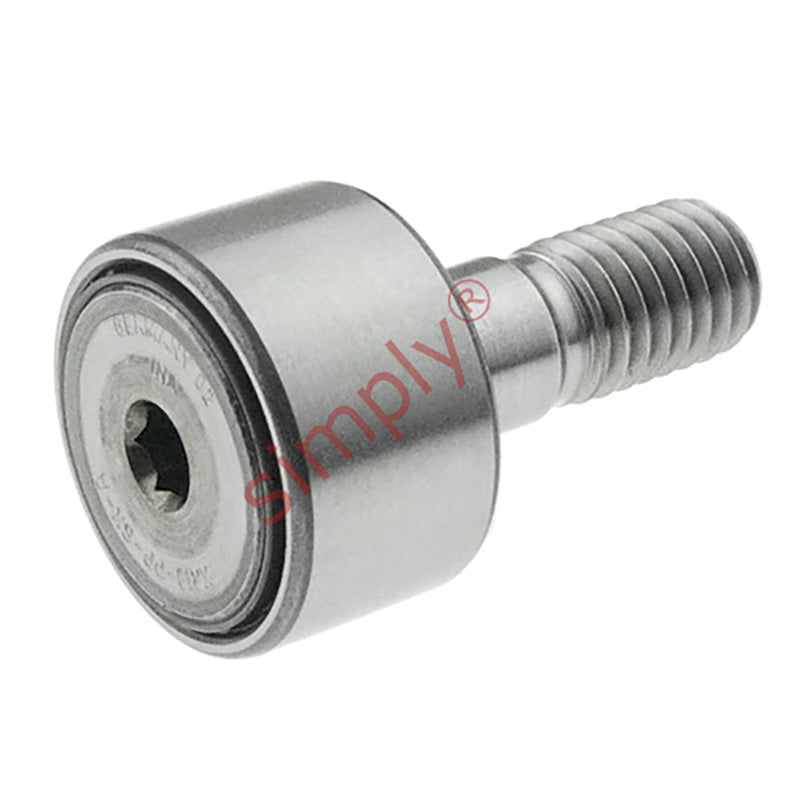

Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
Equivalent to: KR19SKPPA KR19SKPP
In stock
Price Break
10+
CHF 30.60
19+
CHF 28.88
29+
CHF 28.53
39+
CHF 28.19
49+
CHF 27.85
74+
CHF 27.50
99+
CHF 25.78
199+
CHF 25.44
249+
CHF 25.10
499+
CHF 24.75
999+
CHF 24.07
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Equivalent: KR19SKPPA KR19SKPP
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 19mm
- Width:
- 11mm
- Pitch:
- M8
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8mm |
| G1 | 10mm |
| r min | 0.15mm |
| SW | 4mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
