SKU: KR30PP-MB

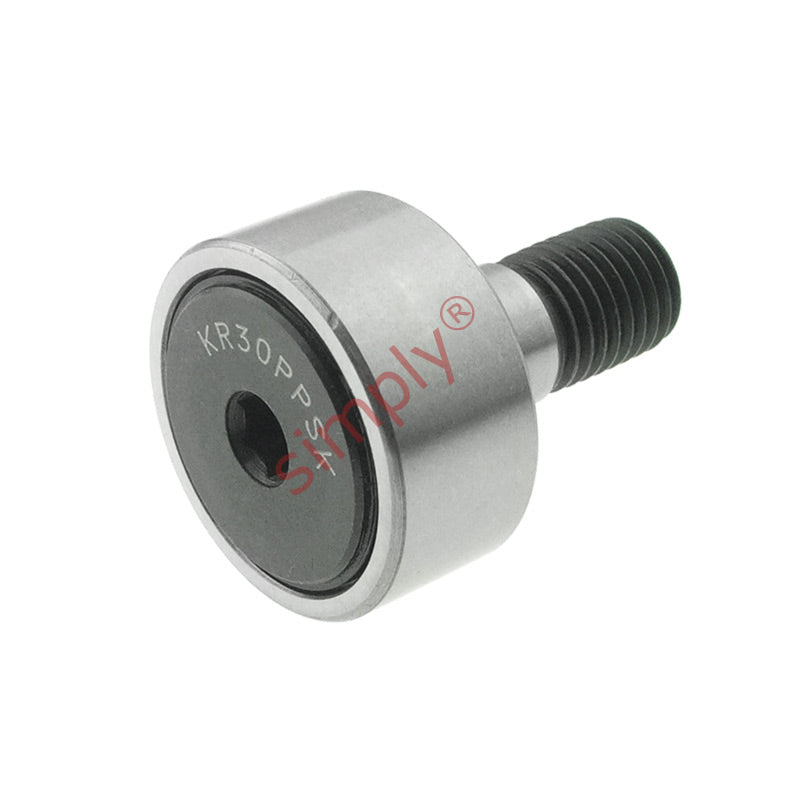

Major Brand KR30PP Contact Sealed Crowned Cam Follower 30x14x12 M12x1.5 Thread
Major Brand KR30PP Contact Sealed Crowned Cam Follower 30x14x12 M12x1.5 Thread
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
10+
CHF 19.45
19+
CHF 18.35
29+
CHF 18.14
39+
CHF 17.92
49+
CHF 17.70
74+
CHF 17.48
99+
CHF 16.39
199+
CHF 16.17
249+
CHF 15.95
499+
CHF 15.73
999+
CHF 15.30
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 30mm
- Width:
- 14mm
- Pitch:
- M12x1.5
Technical
Technical
| D | 30mm |
|---|---|
| C | 14mm |
| d(Stud Diameter) | 12mm |
| B | 40mm |
| B1 | 25mm |
| B2 | 6mm |
| C1 | 0.6mm |
| d1 | 23mm |
| G | M12x1.5 |
| G1 | 13mm |
| M | 6mm |
| M1 | 3mm |
| r min | 0.6mm |
| Dynamic load | 6440 N |
| Static load | 8000 N |
| Fatigue load limit Pu | 880 N |
| Radial dynamic load | 7800 N |
| Radial static load | 11200 N |
| Speed rating | 5500 rpm |
| Weight | 87 g |
