SKU: KR40PPA-INA

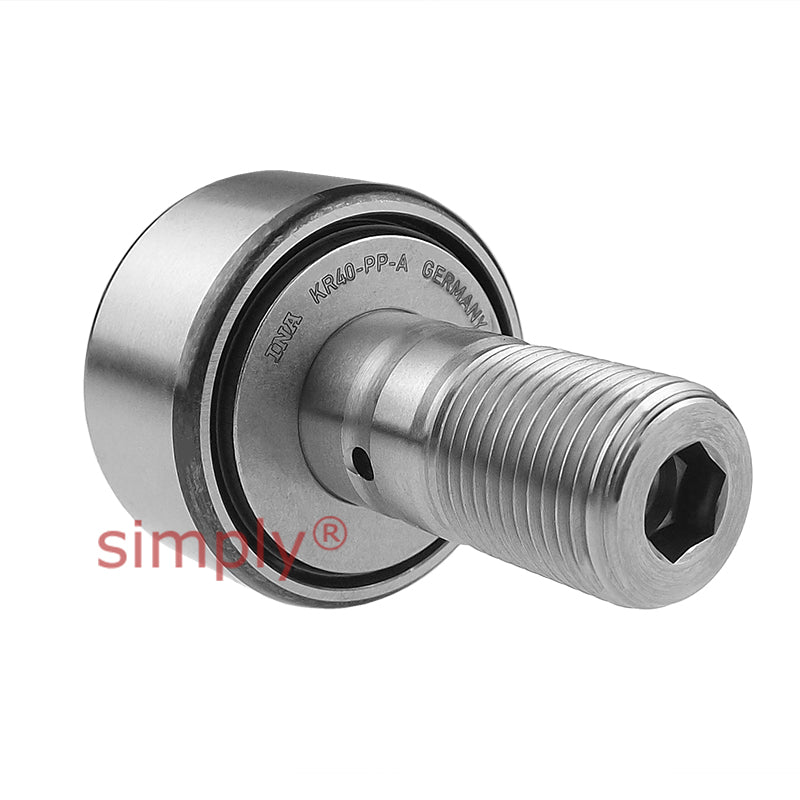

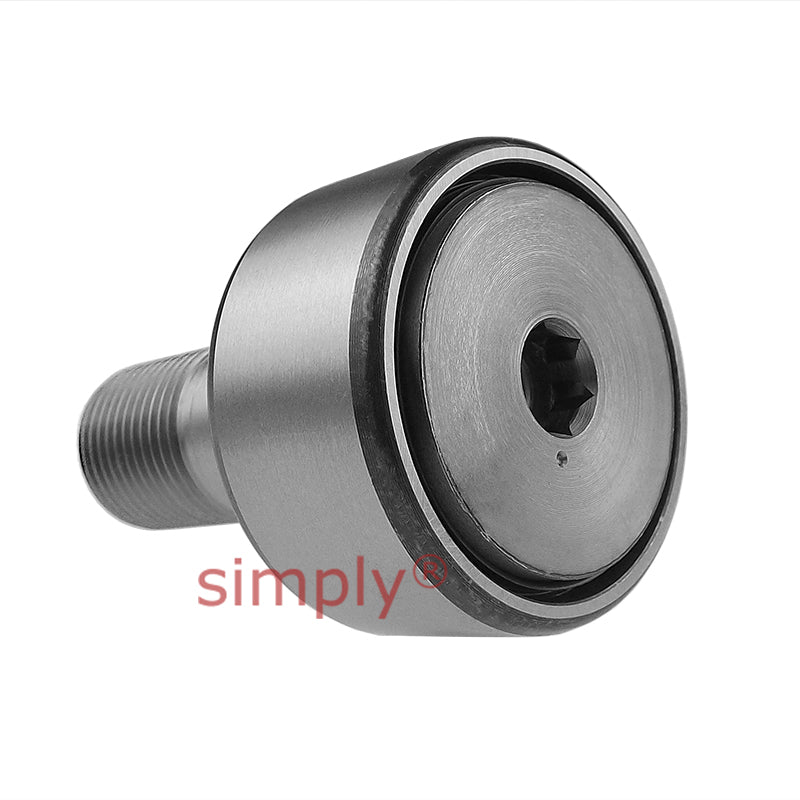

INA KR40PPA Lip Sealed Crowned Cam Follower 40x20x18mm M18x1.5 Thread
INA KR40PPA Lip Sealed Crowned Cam Follower 40x20x18mm M18x1.5 Thread
Regular price
CHF 50.32
ex VAT
Regular price
Sale price
CHF 50.32
ex VAT
Equivalent to: KR40PP CF18UUR MCFR-40-S
In stock
Price Break
10+
CHF 44.78
19+
CHF 42.27
29+
CHF 41.77
39+
CHF 41.26
49+
CHF 40.76
74+
CHF 40.26
99+
CHF 37.74
199+
CHF 37.24
249+
CHF 36.73
499+
CHF 36.23
999+
CHF 35.22
Couldn't load pickup availability
Description
Description
INA Standard Type Cam Followers: These bearing have a stud incorporating needle rollers in a thick walled outer ring. These bearings are designed for outer ring rotation and have excellent rotational performance with low friction and a high load capacity. These bearings are suitable for machine tools, industrial robots, electronic devices etc. as these bearings have high rigidity and high accuracy.
Benefits: Corrosion-resistant
Equivalent: KR40PP CF18UUR MCFR-40-S
- Brand / Quality:
- INA - High Quality
- Thread Pitch:
- M18x1.5
- Outside Diameter:
- 20mm
- Width:
- 18mm
Technical
Technical
| d1 (Stud Diameter) | 40mm |
|---|---|
| D | 18mm |
| G | M18x1.5mm |
| C | 20mm |
| Max.B | 21.6mm |
| Max.B1 | 58.1mm |
| Weight | 250g |
| Dynamic Load | 14800N |
| Static Load | 25200N |
