SKU: KS16-PP-INA

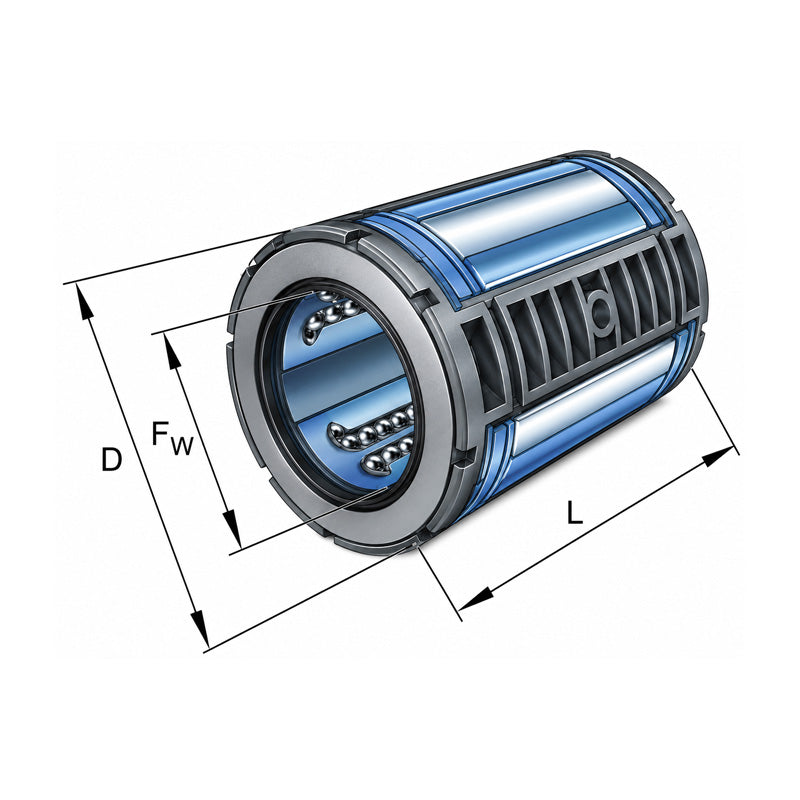

INA KS16PP Closed Self Aligning Linear Ball Bushing with Contact Seals 16x26x36mm
INA KS16PP Closed Self Aligning Linear Ball Bushing with Contact Seals 16x26x36mm
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
3+
CHF 40.35
5+
CHF 38.09
10+
CHF 37.63
15+
CHF 37.18
20+
CHF 36.73
30+
CHF 36.27
40+
CHF 34.01
50+
CHF 33.55
60+
CHF 33.10
75+
CHF 32.64
100+
CHF 31.74
Description
Description
|
INA KS..-PP Self Aligning Linear Ball Bearings: These heavy duty range linear ball bearing and housing units have particularly high load carrying capacity and have an angular adjustment facility for compensation of misalignments. KS linear ball bearings can compensate misalignment of up to ±40 deg. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with lip seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, compensates misalignments, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| BL2 | 1.3mm |
| DN | 25mm |
| L2 | 24.6mm |
| N1 | 3mm |
| N4 | 3mm |
| Mass | 0.028 kg |
| Basic dynamic load rating C min | 1060 N |
| Basic static load rating C0 min | 950 N |
| Basic dynamic load rating C max | 1430 N |
| Basic static load rating C0 max | 1550 N |
