SKU: L150B+L150B+L150I-MB
Major Brand L150B/L150B Pilot Bored Jaw Coupling Assembly Max Bore 48mm with Nitrile Rubber Insert
Equivalent to: L150B L150I
In stock
Price Break
Couldn't load pickup availability
Description
Branded Jaw Coupling Assembly Pilot Bore: The advantage of having a pilot bore means you can machine it to the size required (max bore permitted). They are suitable for general purpose applications that cater for misalignment, shock loads and damps out small amplitude vibrations.

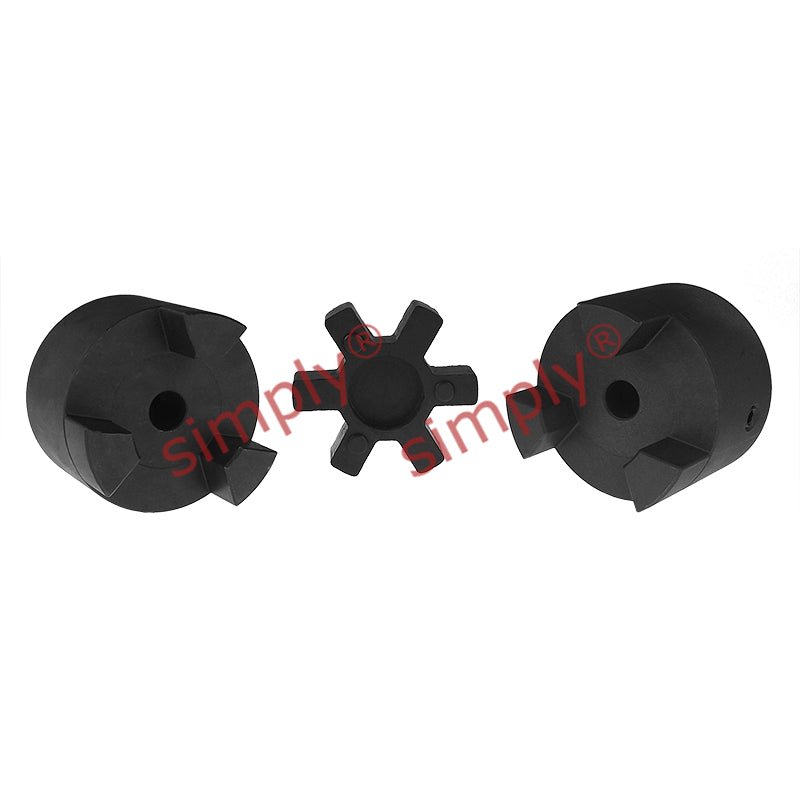

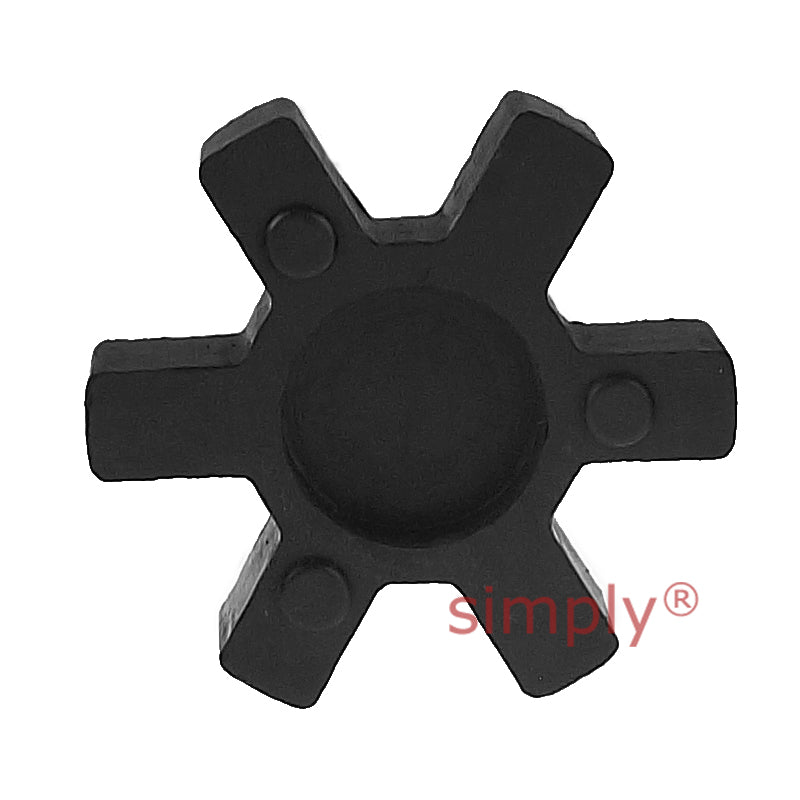

The assembly comprises of 2 couplings and a matching nitrile insert is suitable for use in temperatures -40 deg C to +100 deg C.
In most cases we are able to arrange for Pilot Bore Type Couplings to be machined to suit your specific size requirements. Prices and availability can be obtained by contacting our Sales Support team by
clicking here and we will happily quote you on this.
Equivalent: L150B L150I
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 48mm

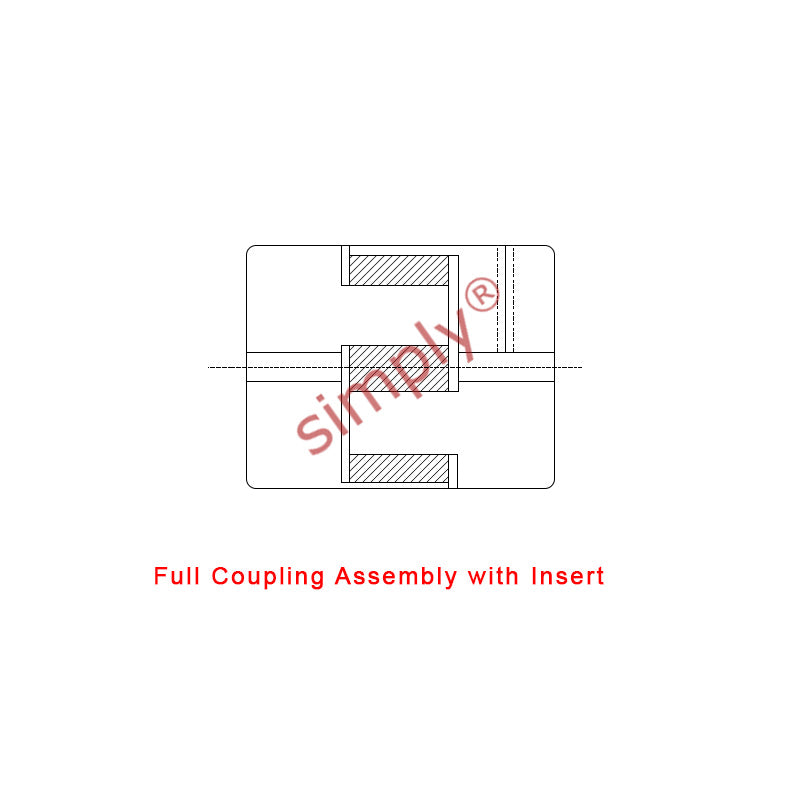

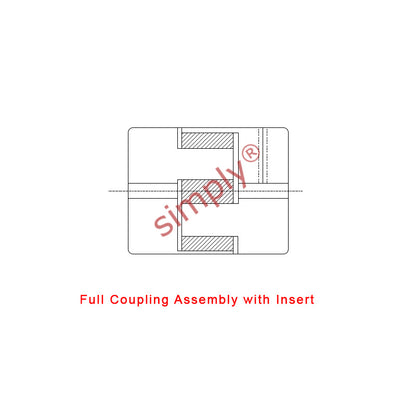

Technical
| Nominal torque | 150 Nm |
|---|---|
| A Max | 15mm |
| Max Bore A | 48mm |
| Overall Diameter B | 96mm |
| Assembled Length L | 115mm |
| Hub Width C | 45mm |
| Hub Diameter D | 96mm |
| F | 22.5mm |
| Grub Screw Size | M10 |
| Complete Weight | 5.2kg |
