SKU: L624549/L624510B-TIM

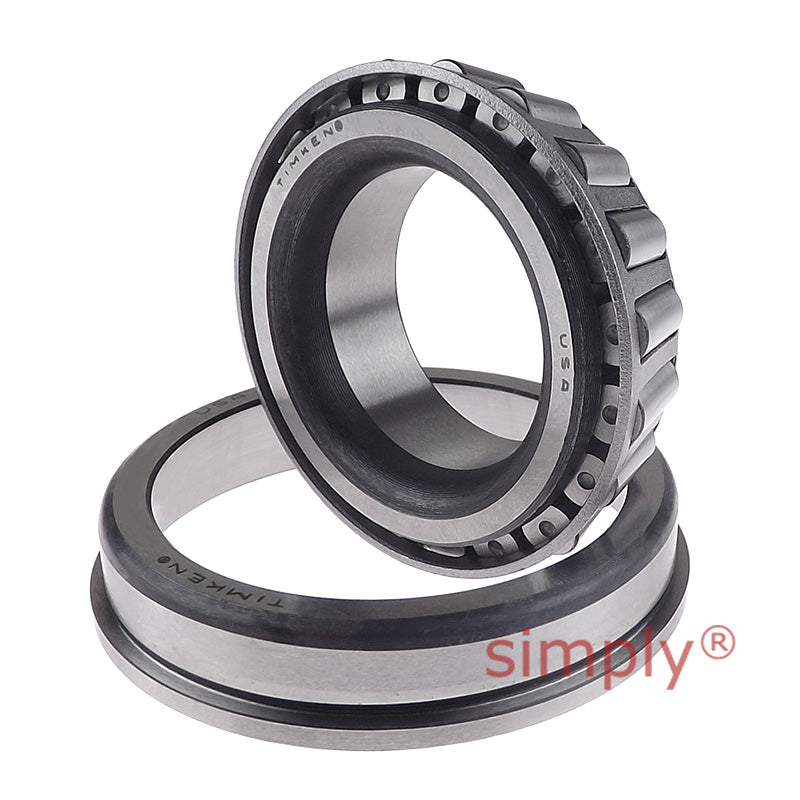

Timken L624549/L624510B TSF Single-Row Taper Roller Bearing 4.75x6.3125x0.8438 inch
Timken L624549/L624510B TSF Single-Row Taper Roller Bearing 4.75x6.3125x0.8438 inch
Regular price
CHF 797.00
ex VAT
Regular price
Sale price
CHF 797.00
ex VAT
In stock
Price Break
10+
CHF 634.37
20+
CHF 598.73
30+
CHF 591.60
40+
CHF 584.47
50+
CHF 577.35
75+
CHF 570.22
100+
CHF 534.58
200+
CHF 527.45
250+
CHF 520.32
500+
CHF 513.20
1000+
CHF 498.94
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 120.65mm = 4.75 (4-3/4) inch
- Outside Diameter:
- 160.33mm = 6.312 (6-5/16) inch
- Width:
- 21.44mm = 0.844 (27/32) inch
Technical
Technical
| d | 120.65mm = 4.75 inch |
|---|---|
| D | 160.338mm = 6.3125 inch |
| T1 | 8.733mm = 0.3438 inch |
| Dynamic (1) C1 | 97500N |
| Factors (5) e | 0.43 |
| Factors (5) Y | 1.38 |
| Dynamic (2) C90 | 25300N |
| Dynamic (2) Ca90 | 18800N |
| Factors (5) K | 1.34 |
| Static Co | 206000N |
| Bearing B | 21.433mm = 0.8438 inch |
| Bearing C | 16.67mm = 0.6563 inch |
| Bearing a(3) | 8.4mm = 0.33 inch |
| Bearing D1 | 164.203mm = 6.4647 inch |
| Bearing C2 | 3.97mm = 0.1563 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 127mm = 5 inch |
| Shaft backing shoulder diameter db | 129mm = 5.08 inch |
| Housing backing shoulder diameter Da | 157mm = 6.18 inch |
| G1 | 195 |
| G2 | 139 |
| Cg | 0.1509 |
