SKU: LAZY/12

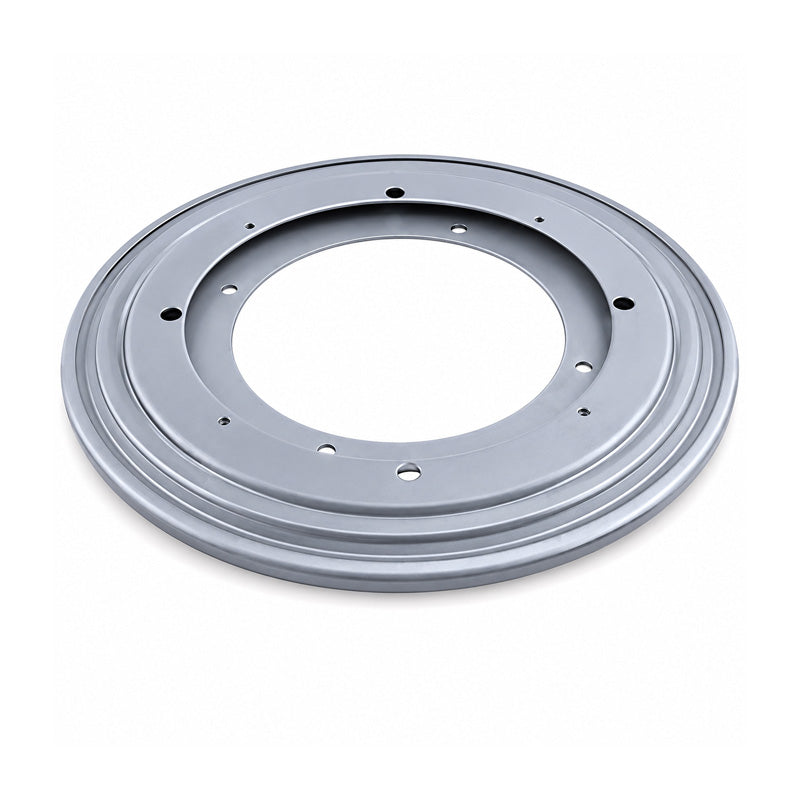

12 inch Round Lazy Susan Turntable Bearing
12 inch Round Lazy Susan Turntable Bearing
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
10+
CHF 7.70
19+
CHF 7.27
29+
CHF 7.18
39+
CHF 7.09
49+
CHF 7.01
74+
CHF 6.92
99+
CHF 6.49
199+
CHF 6.40
249+
CHF 6.31
499+
CHF 6.23
999+
CHF 6.06
Share this product
Description
Description
Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 1000lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 160.8mm = 6.33 inch
- Outside Diameter:
- 304.8mm = 12 inch
- Thickness:
- 8.33mm = 0.328 (21/64 ) inch
Technical
Technical
| Nominal Inside Diameter | 6.33 inch = 160.8mm |
|---|---|
| Nominal Outside Diameter | 12 inch = 304.8mm |
| W | 21/64 inch = 8.33mm |
| Pitch Circle Diameter | 9.47 inch = 240.5mm |
| Max Load Weight | 1000 lbs |
| Weight | 0.7551kg |
