SKU: LAZY/390

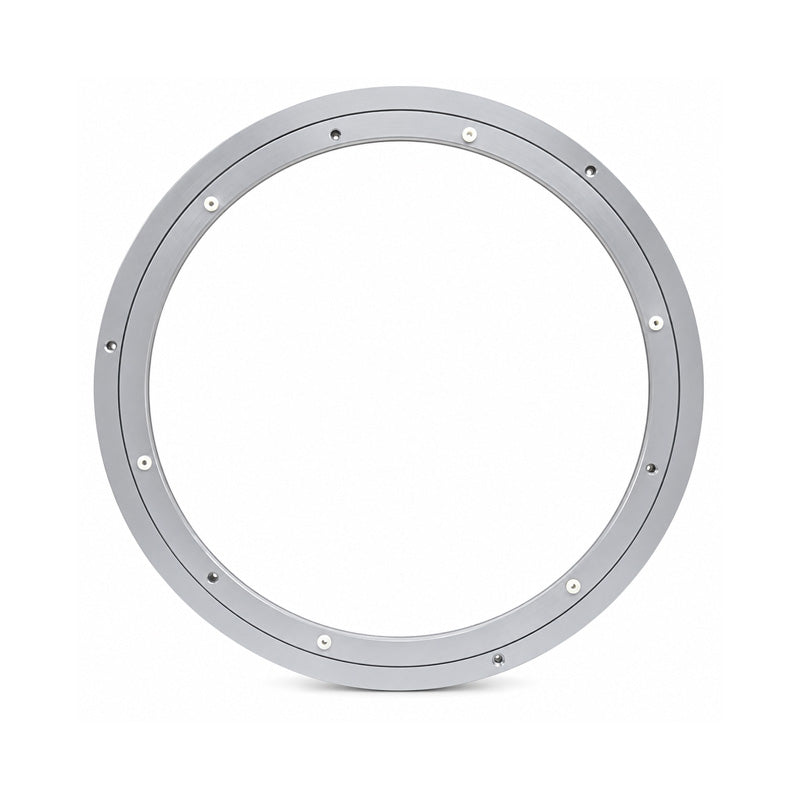

390mm Round Lazy Susan Rotating Aluminium Turntable Bearing
390mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
In stock
Price Break
10+
CHF 14.82
19+
CHF 13.99
29+
CHF 13.82
39+
CHF 13.65
49+
CHF 13.49
74+
CHF 13.32
99+
CHF 12.49
199+
CHF 12.32
249+
CHF 12.15
499+
CHF 11.99
999+
CHF 11.66
Share this product
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 250 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 338mm = 13.31 inch
- Outside Diameter:
- 390mm = 15.35 inch
- Thickness:
- 8.5mm = 0.33 inch
Technical
Technical
| Nominal Inside Diameter | 338mm = 13.31 inch |
|---|---|
| Nominal Outside Diameter | 390mm = 15.35 inch |
| W | 8.5mm = 0.33 inch |
| W1 | 12.5mm = 0.49 inch |
| D1 | 13mm = 0.51 inch |
| D2 | 13mm = 0.51 inch |
| Bolt Hole Diameter | 5mm = 0.19 inch |
| Bolt Circle Diameter 1 | 344.5mm = 13.56 inch |
| Bolt Circle Diameter 2 | 383.5mm = 15.1 inch |
| Max Load Weight | 250 lbs |
| Weight | 0.7178kg |
