SKU: LAZY/4

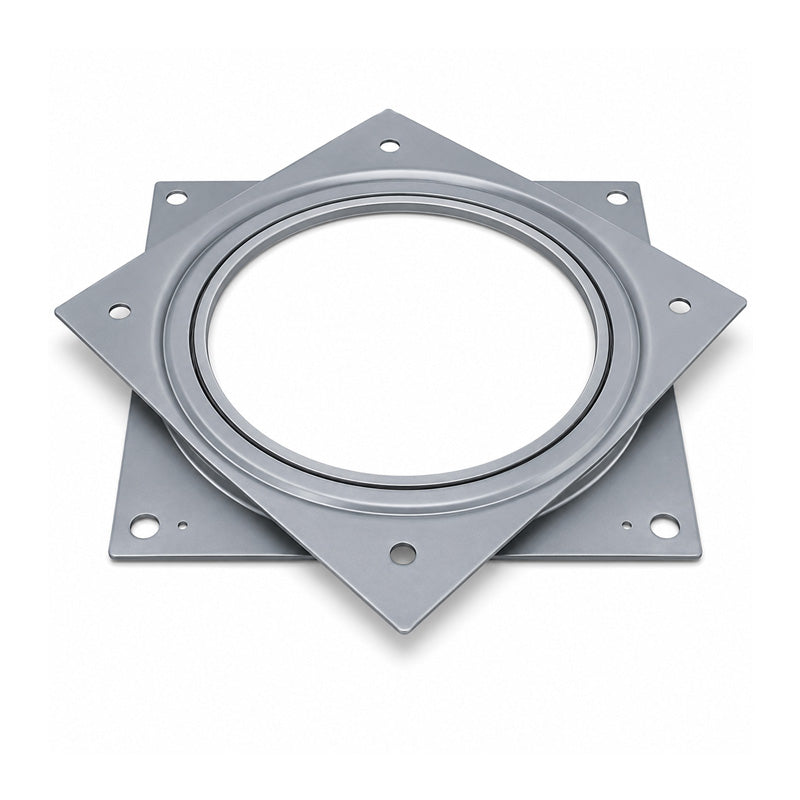

4 inch Square Lazy Susan Turntable Bearing
4 inch Square Lazy Susan Turntable Bearing
Regular price
CHF 5.05
ex VAT
Regular price
Sale price
CHF 5.05
ex VAT
In stock
Price Break
10+
CHF 4.49
19+
CHF 4.24
29+
CHF 4.19
39+
CHF 4.14
49+
CHF 4.09
74+
CHF 4.04
99+
CHF 3.79
199+
CHF 3.74
249+
CHF 3.69
499+
CHF 3.64
999+
CHF 3.54
Couldn't load pickup availability
Description
Description
Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 300 lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 56.7mm = 2.23 inch
- Outside Diameter:
- 101.6mm = 4 inch
- Thickness:
- 7.93mm = 0.312 (5/16) inch

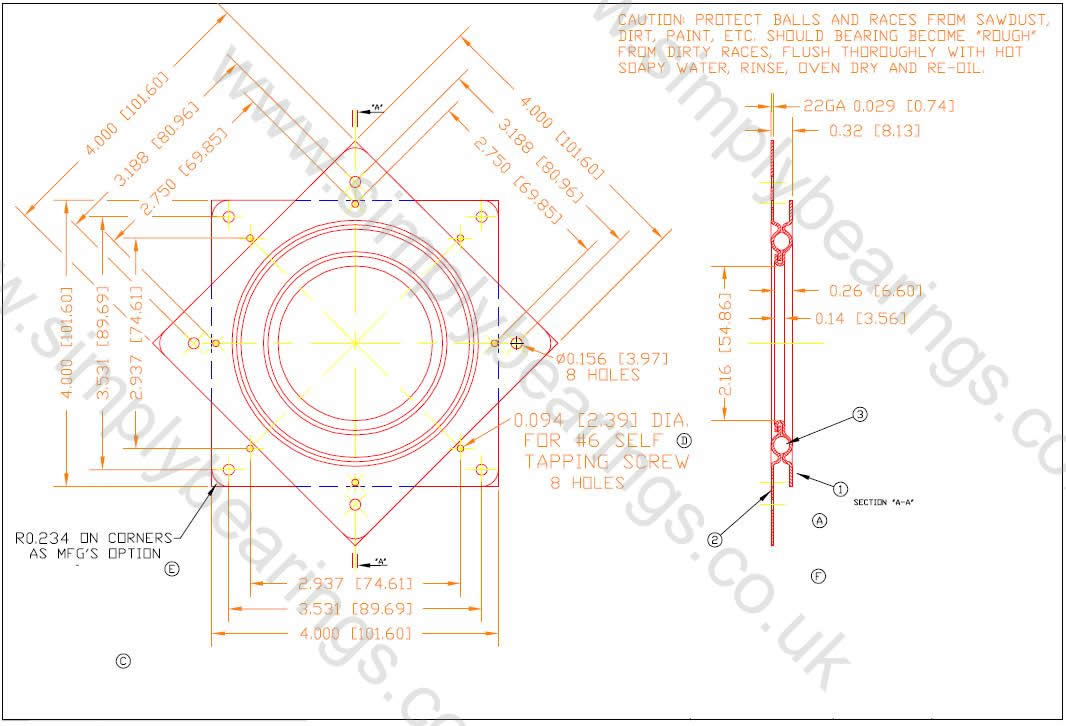

Technical
Technical
| Nominal Inside Diameter | 2.23 inch = 56.7mm |
|---|---|
| Nominal Outside Diameter | 4 inch = 101.6mm |
| W | 5/16 inch = 7.93mm |
| Pitch Circle Diameter | 2.16 inch = 55mm |
| Max Load Weight | 300 lbs |
| Weight | 0.1492kg |
