SKU: LAZY/6

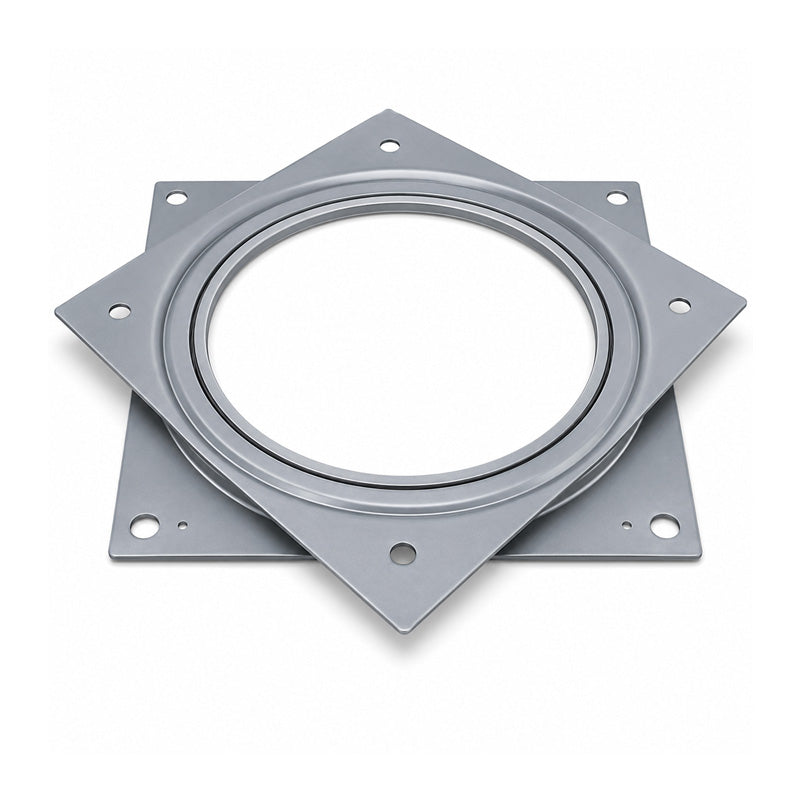

6 inch Square Lazy Susan Turntable Bearing
6 inch Square Lazy Susan Turntable Bearing
Regular price
CHF 6.75
ex VAT
Regular price
Sale price
CHF 6.75
ex VAT
In stock
Price Break
10+
CHF 6.01
19+
CHF 5.67
29+
CHF 5.60
39+
CHF 5.54
49+
CHF 5.47
74+
CHF 5.40
99+
CHF 5.06
199+
CHF 5.00
249+
CHF 4.93
499+
CHF 4.86
999+
CHF 4.73
Couldn't load pickup availability
Description
Description
Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 500 lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 119.1mm = 4.69 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Thickness:
- 7.93mm = 0.312 (5/16) inch

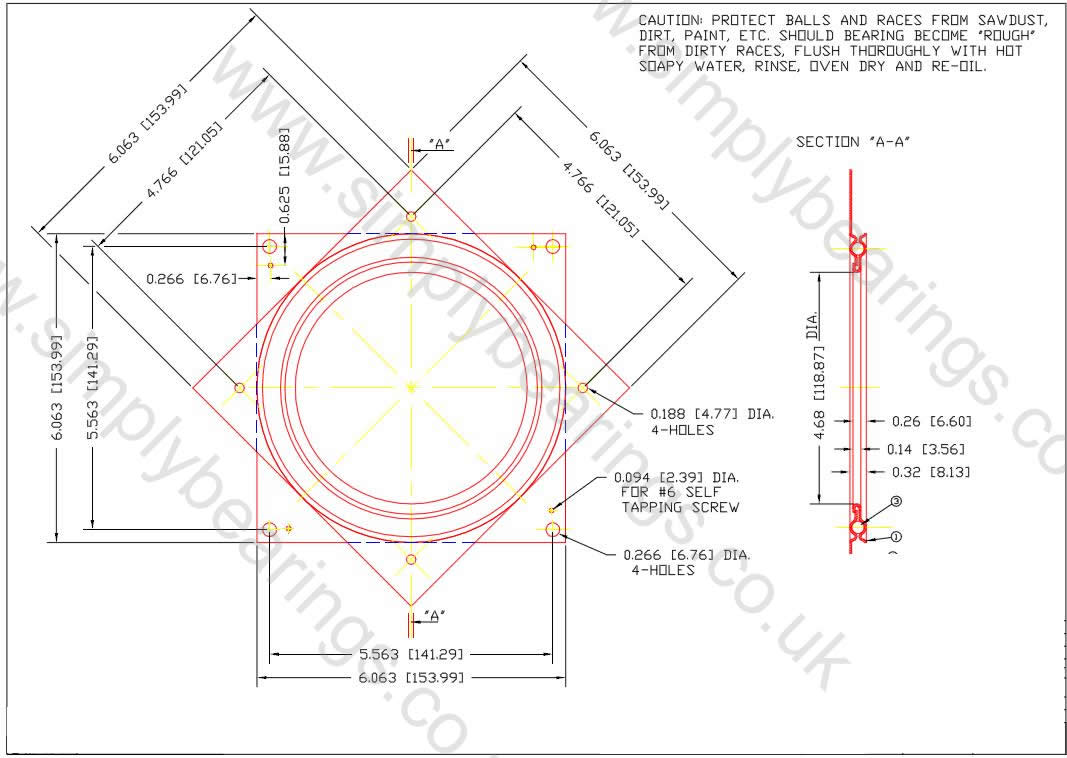

Technical
Technical
| Nominal Inside Diameter | 4.69 inch = 119.1mm |
|---|---|
| Nominal Outside Diameter | 6 inch = 152.4mm |
| W | 5/16 inch = 7.93mm |
| Pitch Circle Diameter | 4.76 inch = 121mm |
| Max Load Weight | 500 lbs |
| Weight | 0.21825kg |
