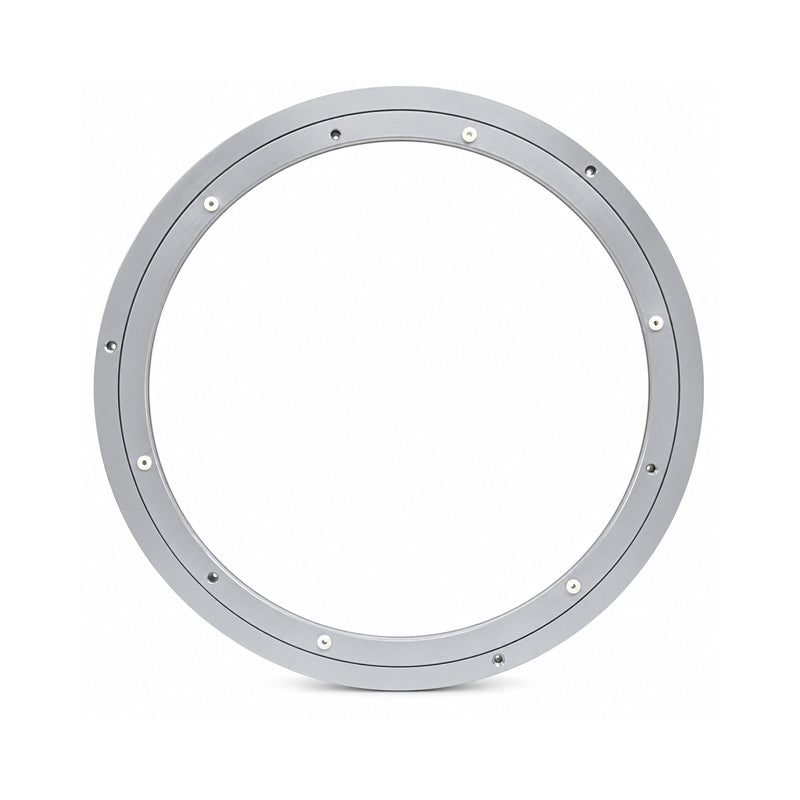

990mm Round Lazy Susan Rotating Aluminium Turntable Bearing
990mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
CHF 223.00
ex VAT
Regular price
Sale price
CHF 223.00
ex VAT
In stock
Price Break
10+
CHF 177.00
19+
CHF 167.05
29+
CHF 165.07
39+
CHF 163.08
49+
CHF 161.09
74+
CHF 159.10
99+
CHF 149.16
199+
CHF 147.17
249+
CHF 145.18
499+
CHF 143.19
999+
CHF 139.21
Share this product
Description
Description
PLEASE NOTE: If ordering from outside of the UK, please enquire about shipping costs before placing an order.
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 505 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 879mm = 34.61 inch
- Outside Diameter:
- 990mm = 38.98 inch
- Thickness:
- 16.2mm = 0.64 inch
Technical
Technical

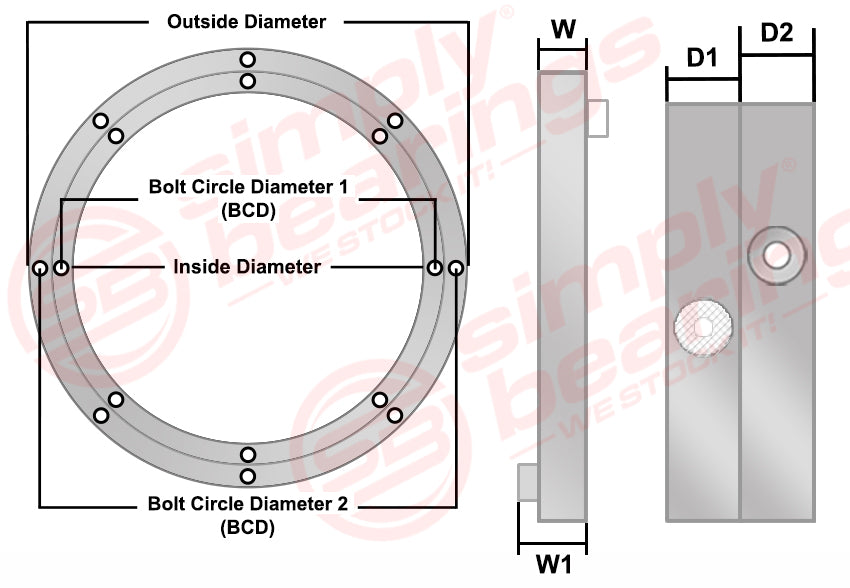

| Nominal Inside Diameter | 879mm = 34.61 inch |
|---|---|
| Nominal Outside Diameter | 990mm = 38.98 inch |
| W | 16.2mm = 0.64 inch |
| W1 | 24mm = 0.94 inch |
| D1 | 27mm = 1.06 inch |
| D2 | 28.5mm = 1.12 inch |
| Bolt Hole Diameter | 7mm = 0.27 inch |
| Bolt Circle Diameter 1 | 892.5mm = 35.14 inch |
| Bolt Circle Diameter 2 | 975.75mm = 38.42 inch |
| Max Load Weight | 550 lbs |
| Weight | 17kg |
